Description

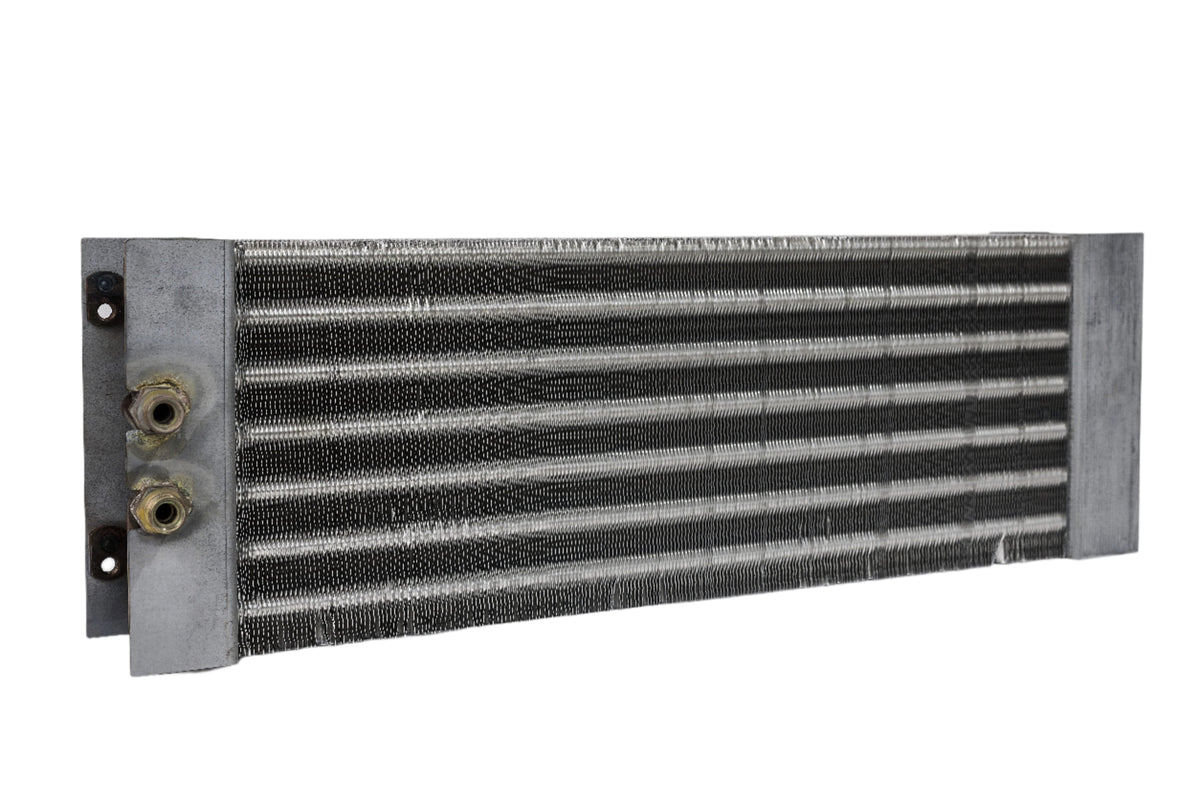

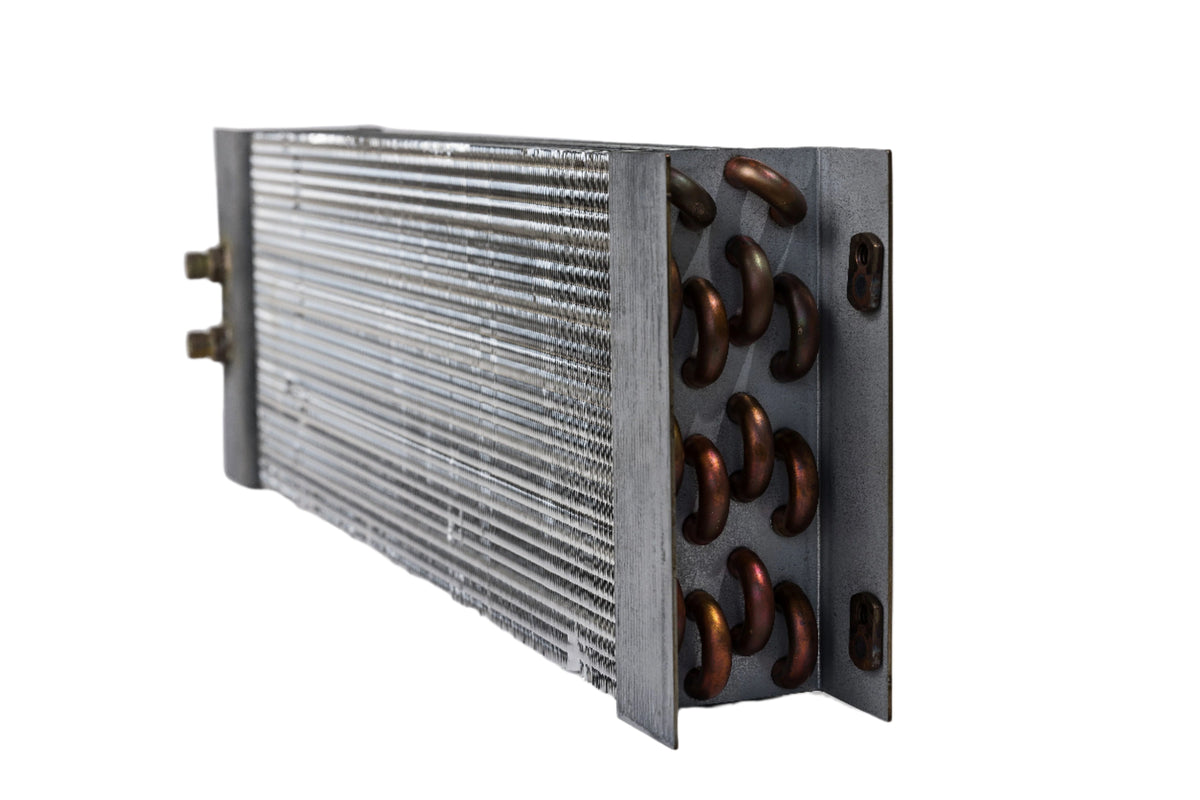

The AC condenser coil core, rejects heat removed from the cab to the exterior of the vehicle. The condenser is typically mounted in the air-stream in front of the radiator or placed remote of the radiator in conjunction with an electric fan to provide airflow to allow heat rejection. In general, condensers coils are designed to fit a specific vehicle configuration or are designed to have a universal fit.
- Part Number: 77R0090
- Inlet Fitting: #8 Male O-Ring 3/4 - 16
- Outlet fitting: #8 Male O-Ring 3/4 - 16
- Height: 7.125"
- Width: 22.5"
- Depth: 2.5"
- Special Attribute: Tube and Fin
- Special Attribute: Replacement for E-9725, R-9725 Units
Interchange Numbers:
- 232-9596
- 28-2790
- 28-3155
- 350-2406
- 400-3885
- 4379-RD444400
- 4379-RD444400P
- 6253
- 842833700
- ABP N83 306050
- CON2485
- PA11450
- RD-4-4440-0P
- RDHRD444400P
- RDT77R0090
