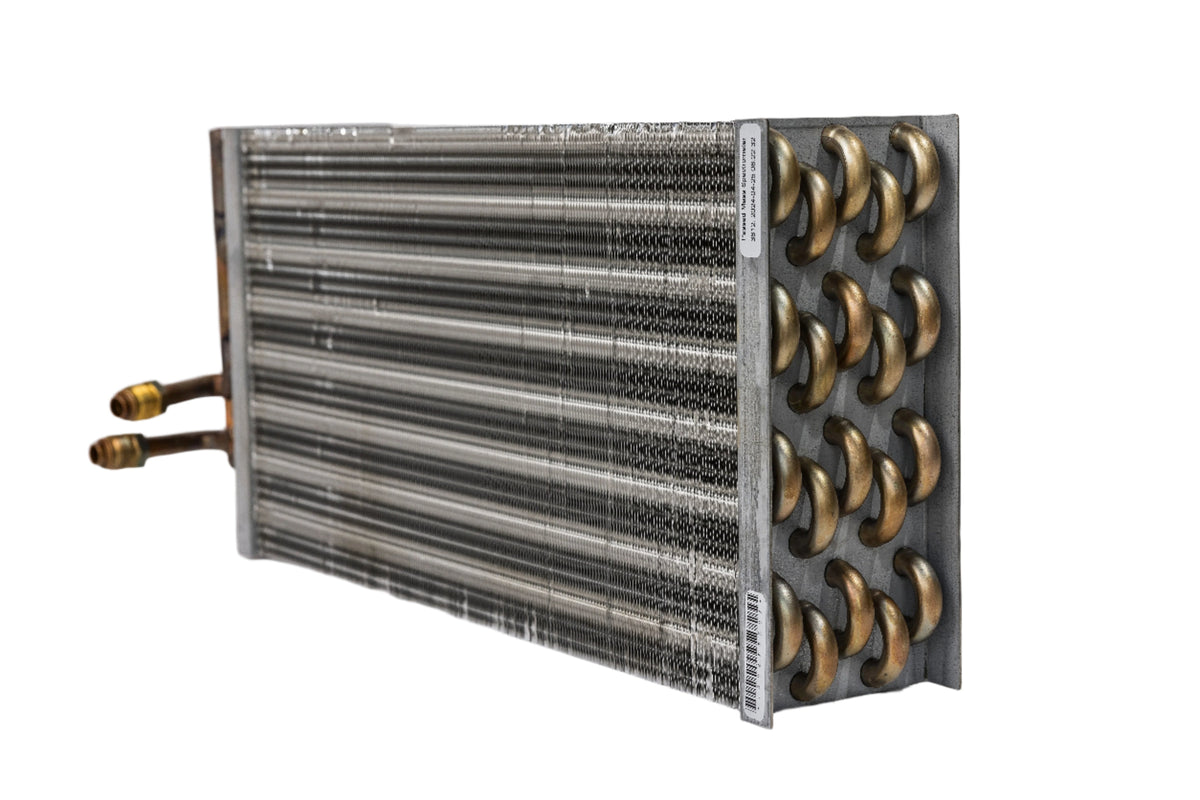

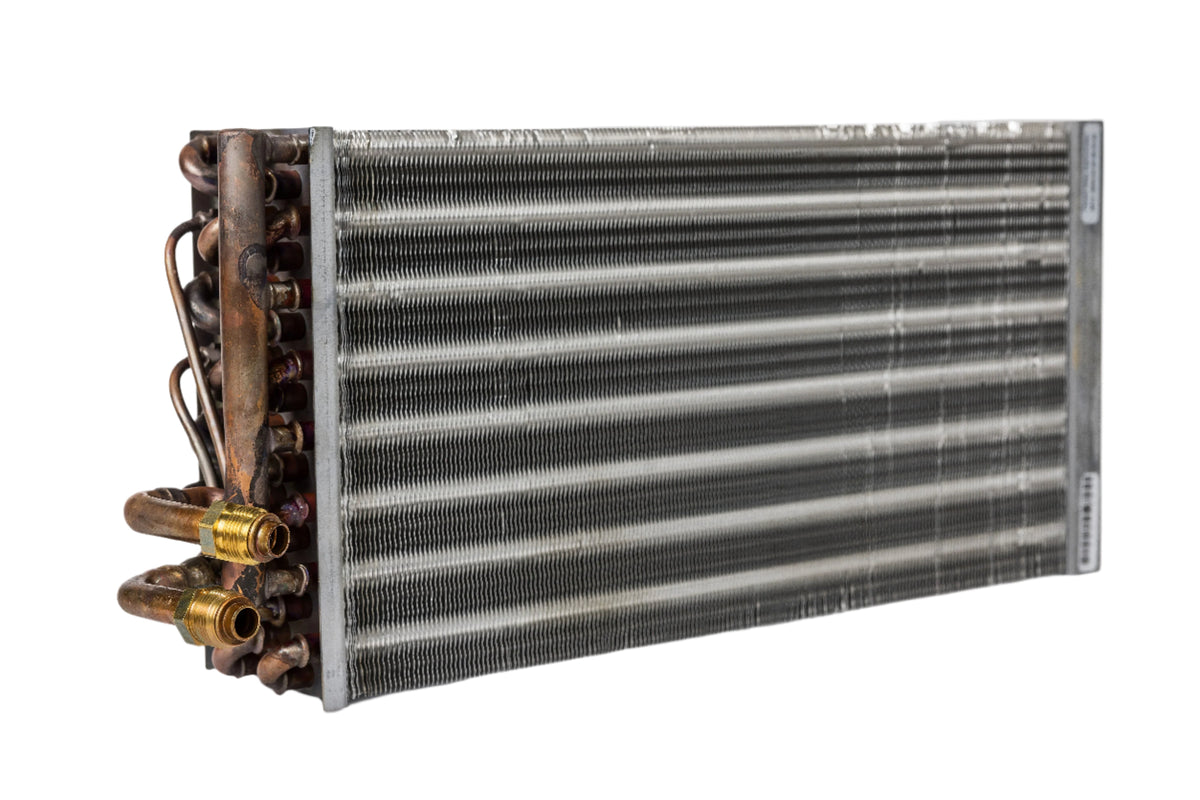

AC Evaporator Coil Core for Red Dot R-5040 R-5045 R-5075 Units 76R7070

SKU: 76R7070
Only 2 left
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
$446.32

Ask An Expert

Email 573-993-3849
The AC evaporator coil core, absorbs heat from the cab air and transfers that heat into the refrigerant pumping through the tubing. The evaporator is mounted within the cabin with an electric fan to provide cabin airflow across it to allow heat absorption from the passing air. Evaporator coils are designed to fit a specific configuration. Proper fit of the evaporator core is critical. Any airflow that can bypass the coil will have a significant effect on discharge air temperatures.
  • Part Number: 76R7070
  • Inlet Fitting: #8 MIO 3/4 - 16
  • Outlet fitting: #8 MIO 3/4 - 16
  • Height: 8.125"
  • Width: 15.0"
  • Depth: 3.5"
  • Special Attribute: Tube and Fin
  • Special Attribute: Replacement for R-5040-4, R-5040-6, R-5045-5, R-5045-6, R-5075 Units

Interchange Numbers:

  • 151382
  • 1699013
  • 176183
  • 232-9569
  • 400-5604
  • 4379-RD213700
  • 4379-RD213700P
  • 6524
  • ABP N83 307180
  • NA11750
  • RD-2-1370-0P
  • RDHRD213700P
  • RDT76R7070
  • VE2050
  • Type Coils
  • Vendor VMACSINC
  • SKU 76R7070
