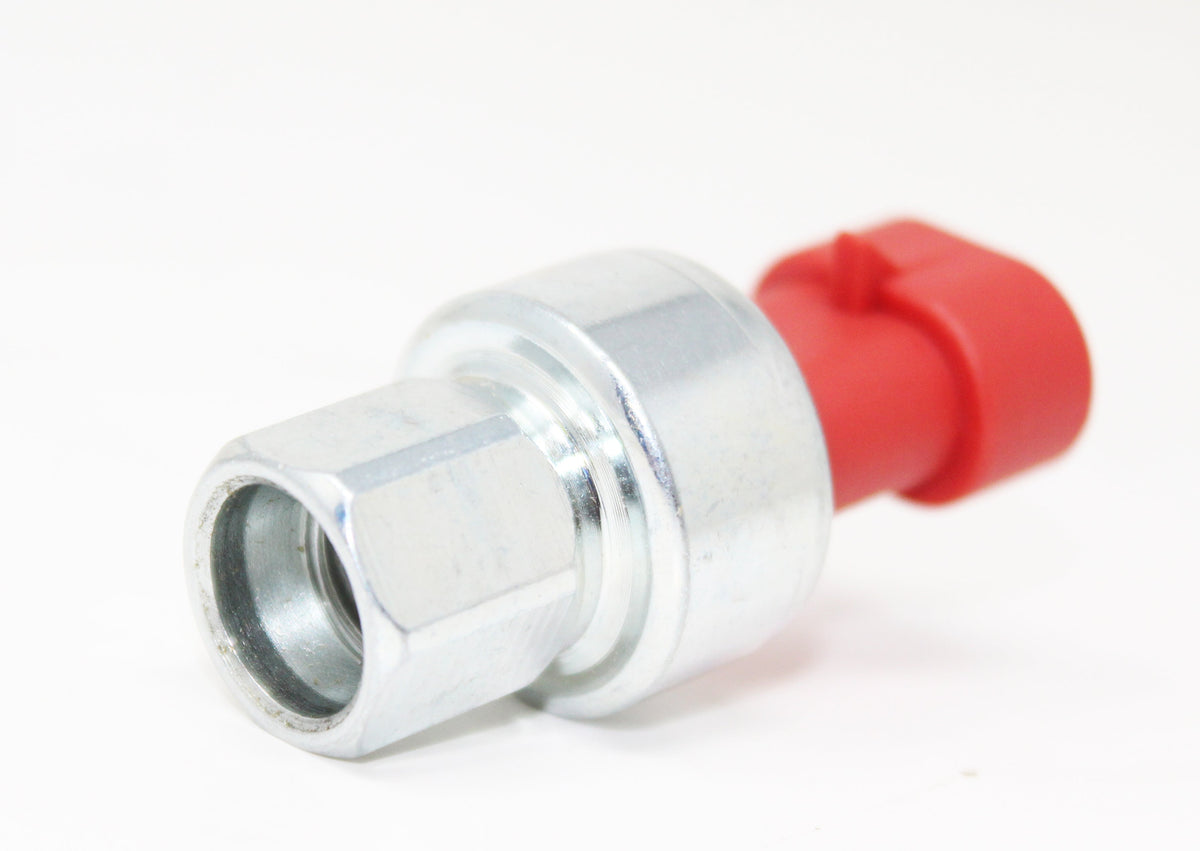

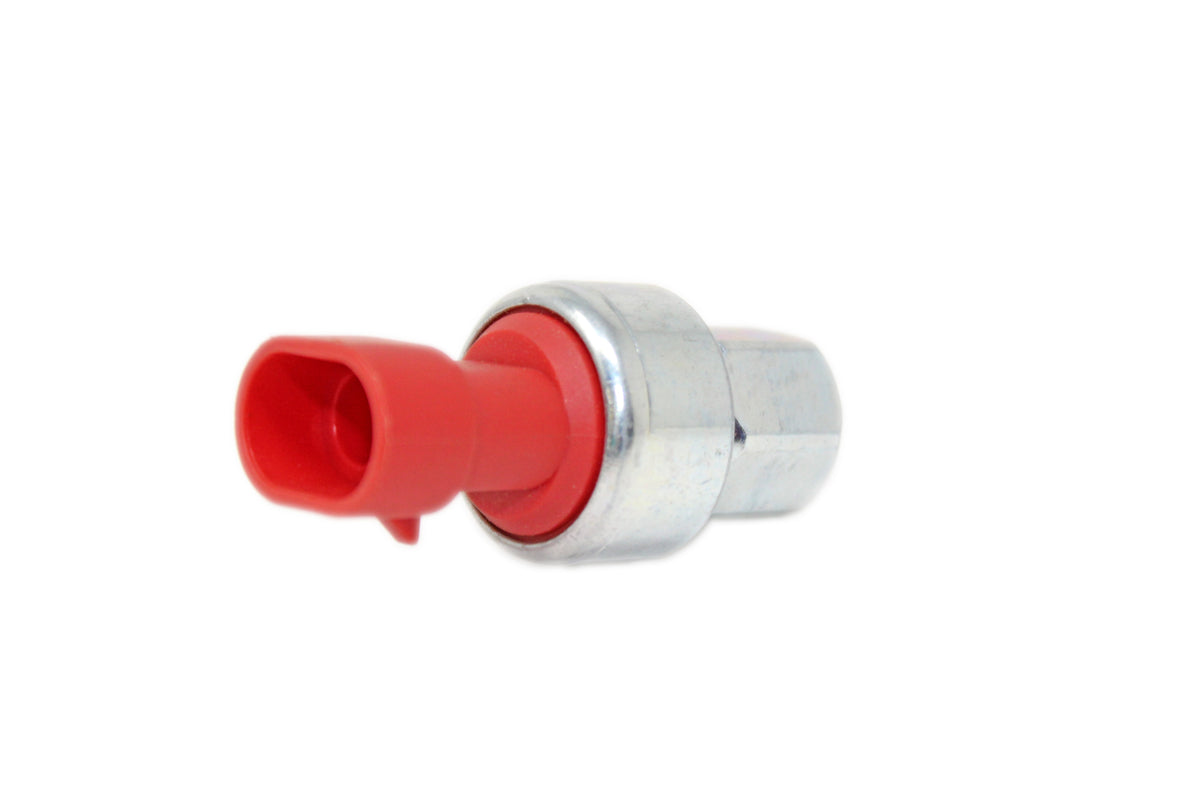

Binary Pressure Switch for Caterpillar 3E6043 1145333 71R6157

SKU: 71R6157
Only 2 left

Description

Pressure switches provide a simple and effective option for AC system pressure control. The Binary pressure switch typically disconnects power supply to the compressor clutch to protect the compressor during abnormally low system pressure conditions and abnormally high system pressure conditions.
  • Part Number: 71R6157
  • Thread: 7/16-20 Female
  • Function 1: Low Pressure Protection
  • Function 2: High Pressure Protection
  • Terminals: 2
  • Connector: Integral
  • Special Attribute: Caterpillar
  • Mating Connector: 1546
Interchange Numbers:
  • 1145333
  • 114-5333
  • 3E6043
  • 3E-6043
  • 11-3028
  • 1538
  • 1538DC
  • 220-10512
  • 220-1052
  • 220-1052HD
  • 29-30720
  • 29-30740
  • 4379-RD5153050P
  • 850-8908
  • 922-1025
  • ABP N83 322681
  • RD-5-15305-0P
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
$27.09

Ask An Expert

Email 573-993-3849
  • Type Controls
  • Vendor VMACSINC
  • SKU 71R6157
