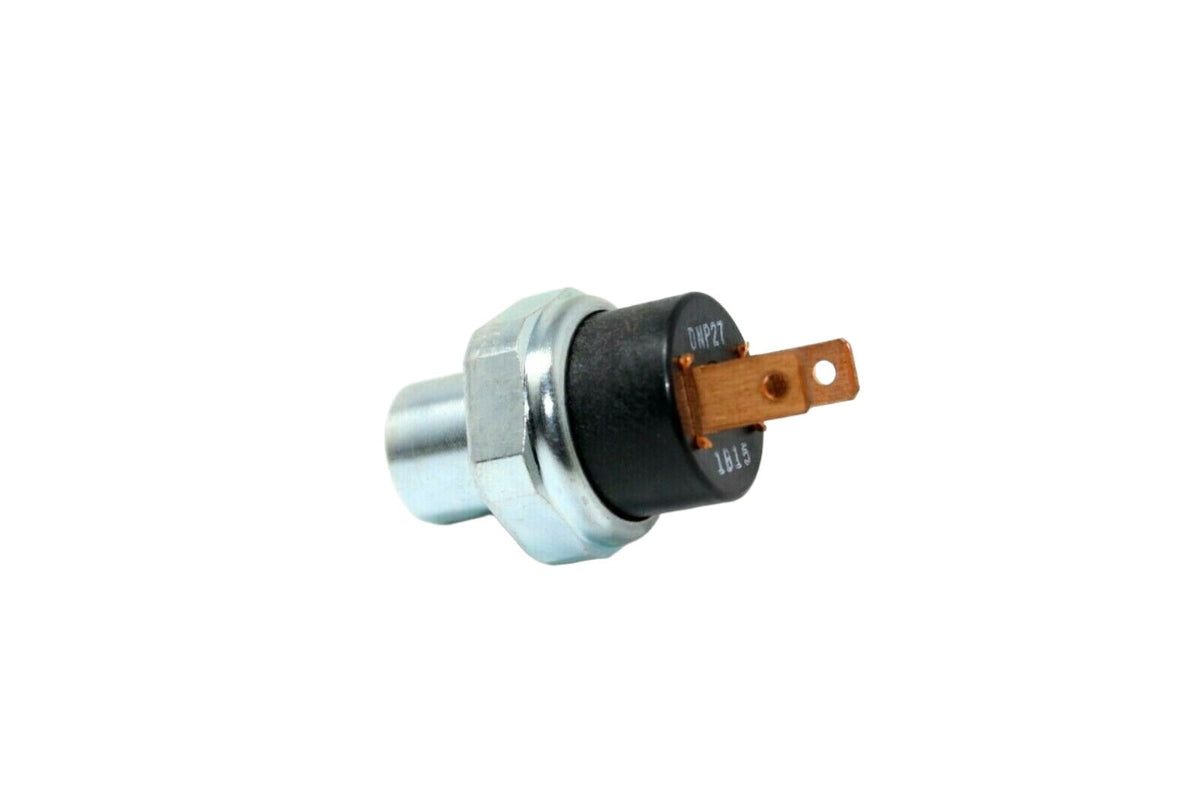

Binary Pressure Switch for Caterpillar Prentice 71R7075

SKU: 71R7075
In stock
Ships Same Day if Ordered Before 12pm CST

Description

Binary pressure switches provide a simple and effective option for AC system pressure control. The pressure switch typically disconnects power supply to the compressor clutch to protect the compressor during abnormally high system pressure conditions and abnormally low system pressure conditions.
  • Part Number: 71R7075
  • Thread: 7/16-20 Female
  • Function 1: low pressure protection
  • Function 2: high pressure protection
  • Terminals: 2
  • Connector: .250 Male Spade
  • Mating Connector: 71R4571
  • Special Attribute: R-9720 R-9730 R-9757 series units

Interchange Numbers:

  • 10001460
  • 1-9227
  • 11-0616
  • 1512
  • 1514330C2
  • 1911505514
  • 207646
  • 22-36474
  • 2212001
  • 232-8542
  • 3093419
  • 3282695
  • 35761
  • 3596054
  • 36646
  • 404428
  • 405111
  • 4379-RD584330P
  • 5930-01-531-3056
  • 650869
  • 850-8903
  • 922-1020
  • 925725
  • A22-36474
  • ABP N83 318109
  • ABP N83 318229
  • BB14550
  • E-807200
  • F123828
  • FJK SP4071
  • RD-5-8433-0P
  • RDHRD584330P
  • RDT71R7075
  • ZGG14870
  • ZGG19227
  • ZGG711008
