Description

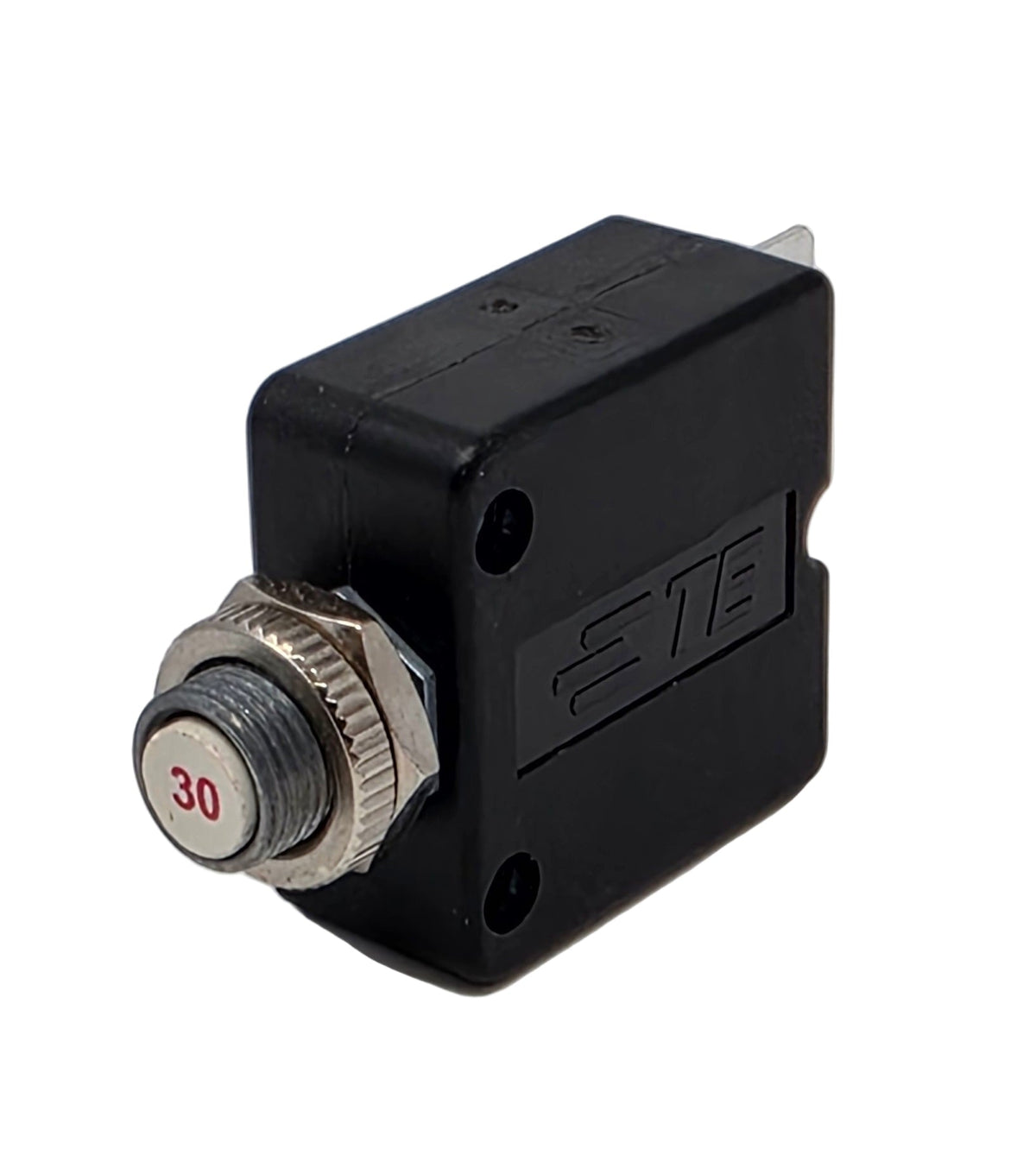

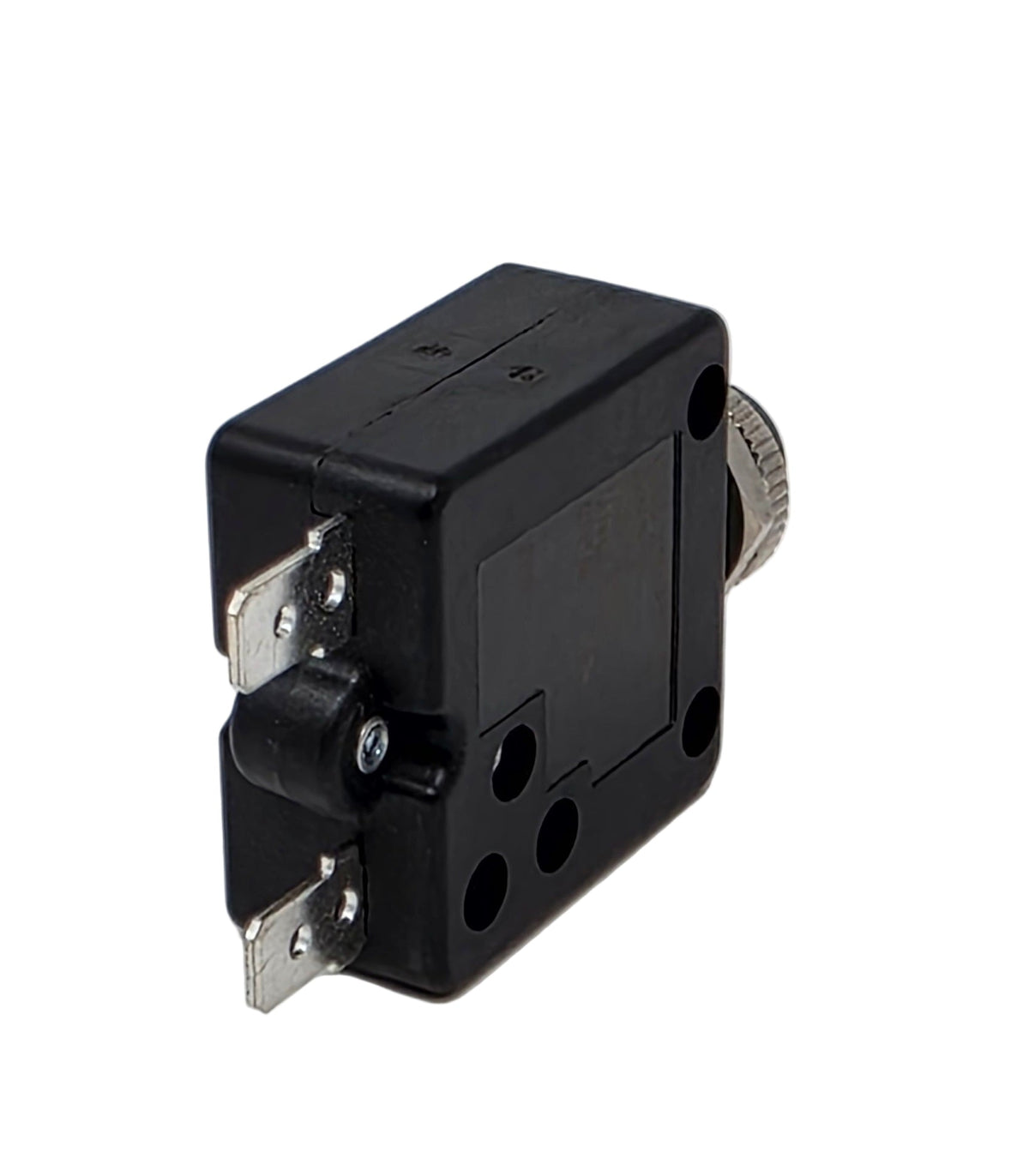

A circuit breaker is an electro mechanical device provided overload protection to a circuit by opening contacts within the device and stopping the flow of electricity in a circuit. The overload condition is determined by the amount of amperage moving through the device. Circuit breakers need to appropriately sized to the circuit based on the electrical load of the components in the circuit.
- Part Number: 71R1300
- Current Rating: 30 amp
- Maximum operating voltage: 50vdc @250vac
- Terminals: 2
- Connector: .250 Male Spade
- Dimensions: 1 3/8" X 1 3/8" X 2/3"
- Mounting: Jamb Nut 7/16"- 28 Thread
Interchange Numbers
- 1210
- 1214
- 232-8383
- 4379-RD558740
- 4379-RD558740P
- 850-7712
- ABP N83 320060
- CC10200
- E-807534
- K1110-0552-30
- RD-5-5874-0P
- RDHRD558740P
- RDT71R1300
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Regular price
$22.66
Ask An Expert
- Type Controls
- Vendor VMACSINC
- SKU 71R1300
