Description

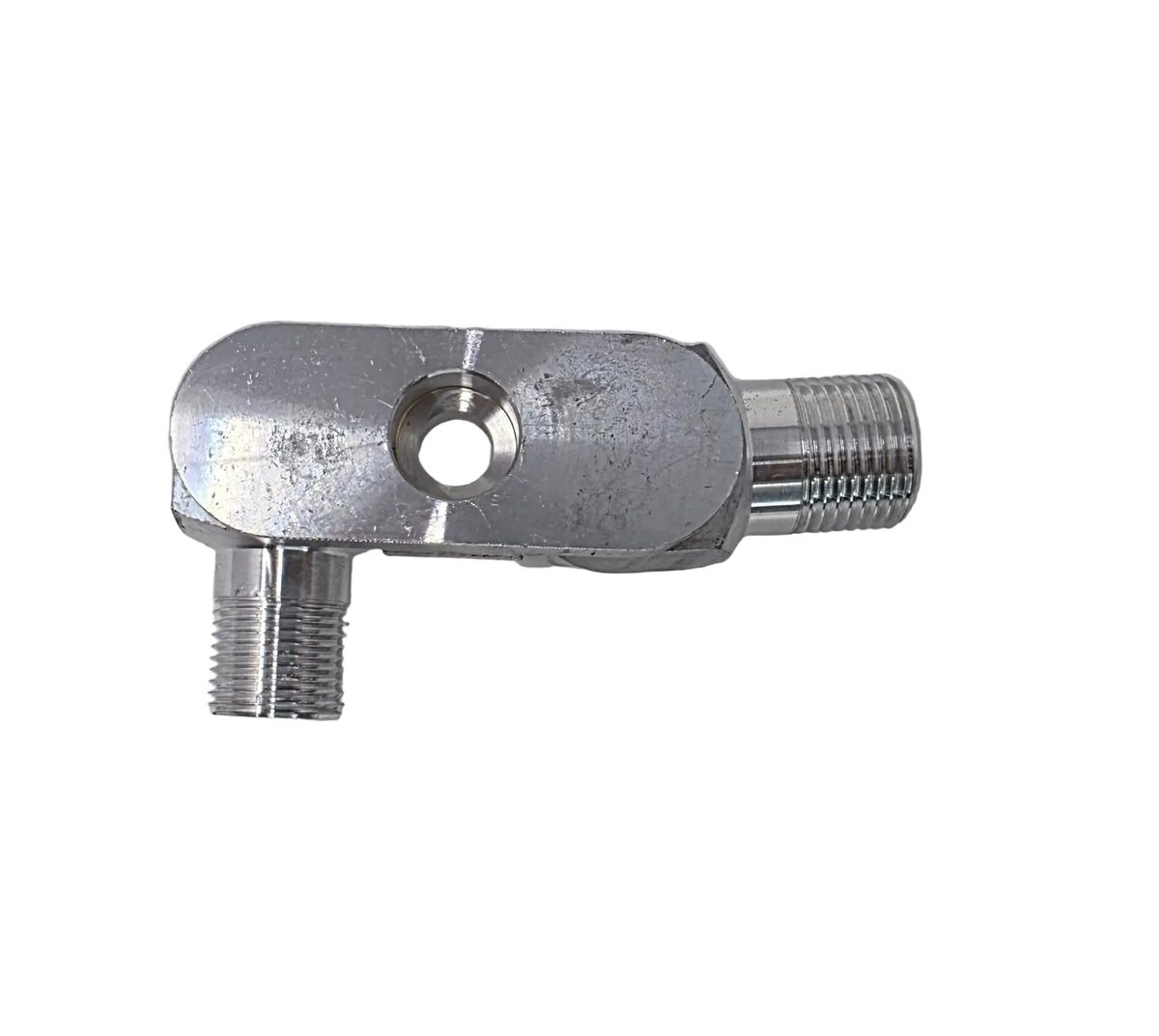

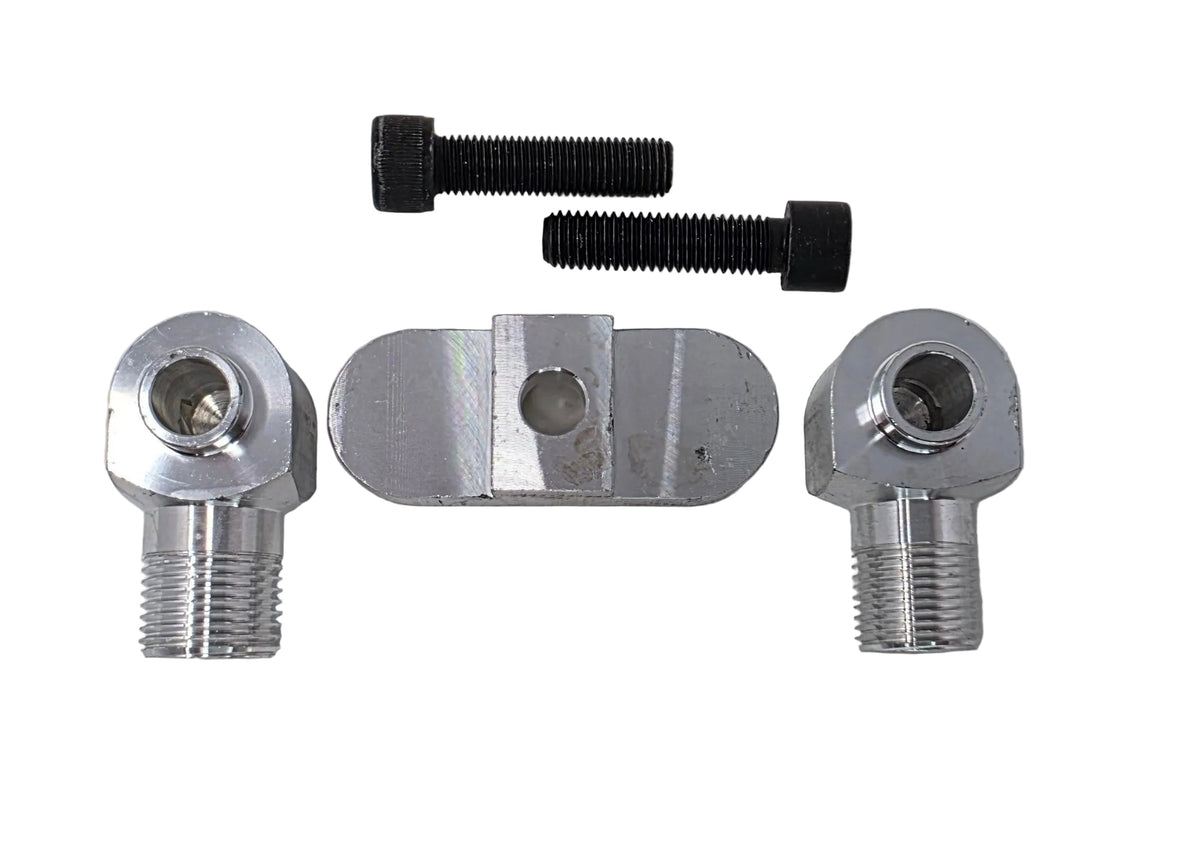

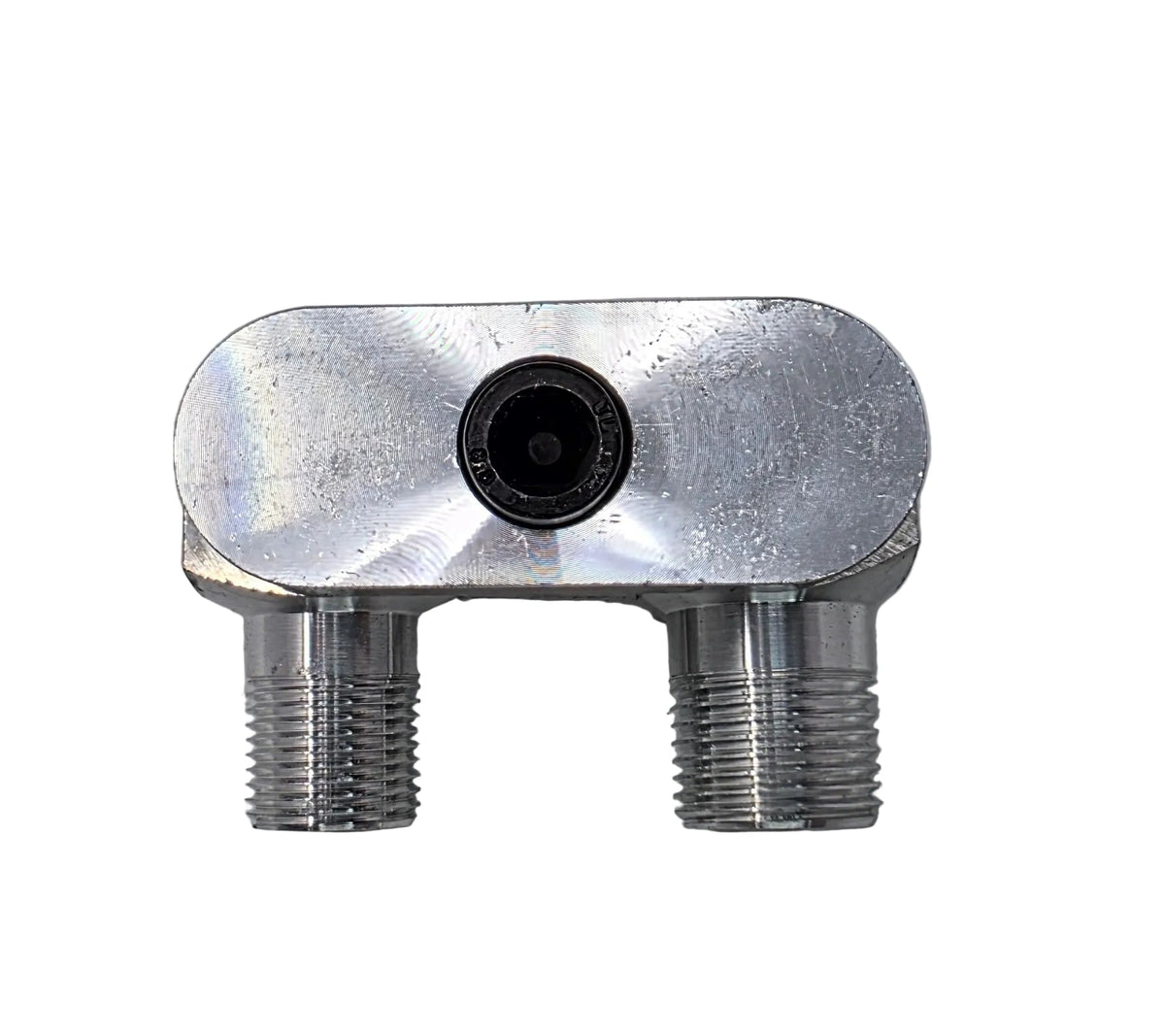

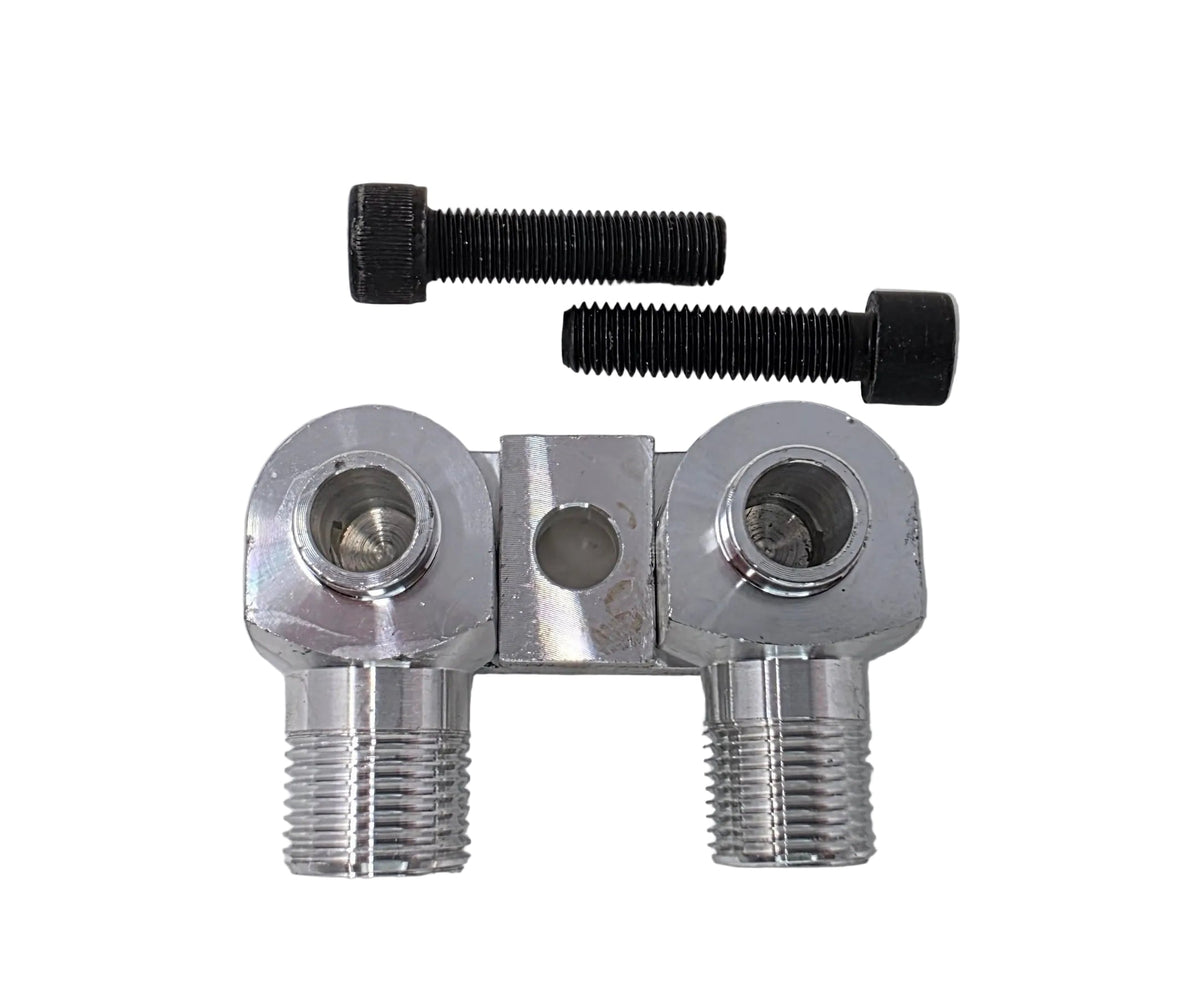

The compressor manifold attaches to the compressor head and provides attaching connections for the AC hoses. This swivel manifold allows a unique configuration for hose routing. Each threaded fitting is independent and can be swapped from side to side to match the suction and discharge ports on your compressor. The fittings can also be independently positioned within a 180 degree clocking rotation on either side, from straight up to straight down and any outward pointing position in between. Fittings are held into position with a clamping plate which includes 2 bolts with 2 common compressor thread types.
- Part Number: 75R89330
- Manufacturer: Aftermarket
- Type: Manifold
- Model: Fits multiple Sanden and Seltec/TCCI models
- Construction: Aluminum
- Mount Type: Single Bolt
- Hose Orientation: Vertical
- Suction Fitting: #10
- Discharge Fitting: #8
- Special Attribute: #10 O-ring, #8 O-ring
Interchange Numbers:
- 03-6518
- 20-193
- 200193
- 325-8579
- 35-11925
- 382-3008
- 451-1157
- 5206
- HP-6006
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Regular price
$33.40
Ask An Expert
- Type Compressor Parts
- Vendor VMACSINC
- SKU 75R89330
