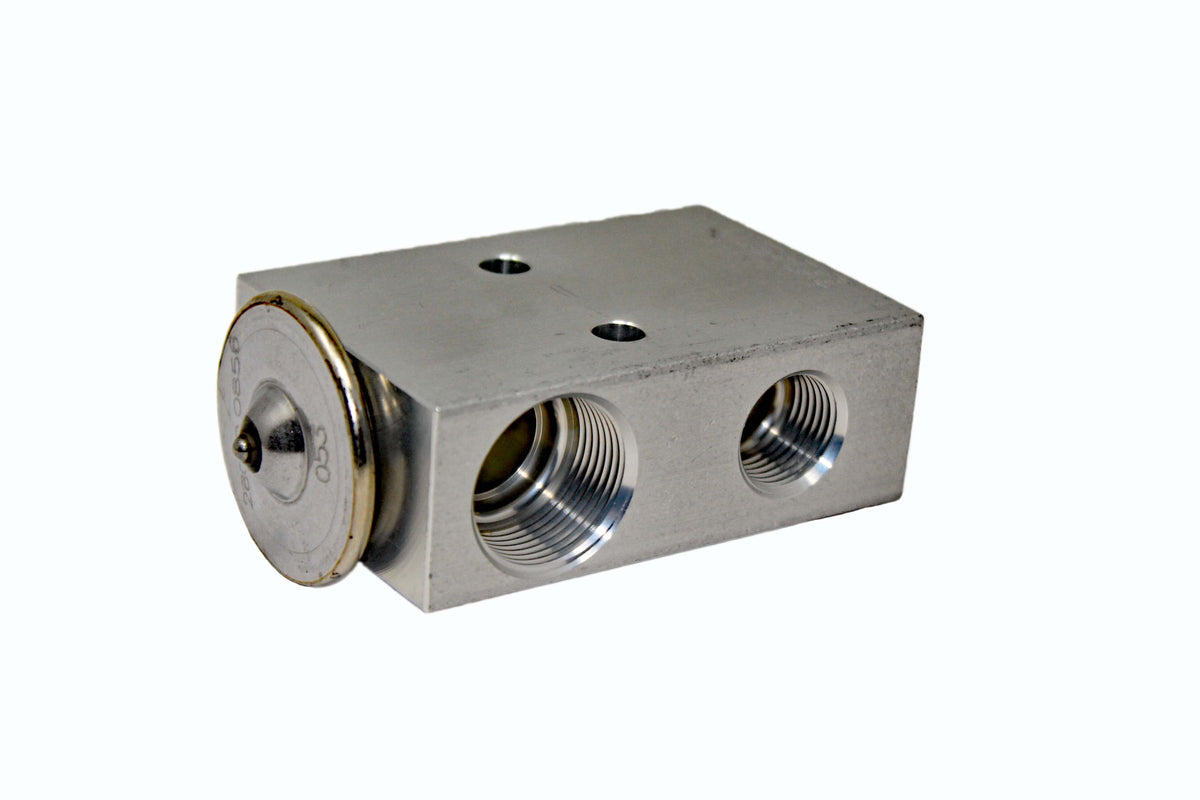

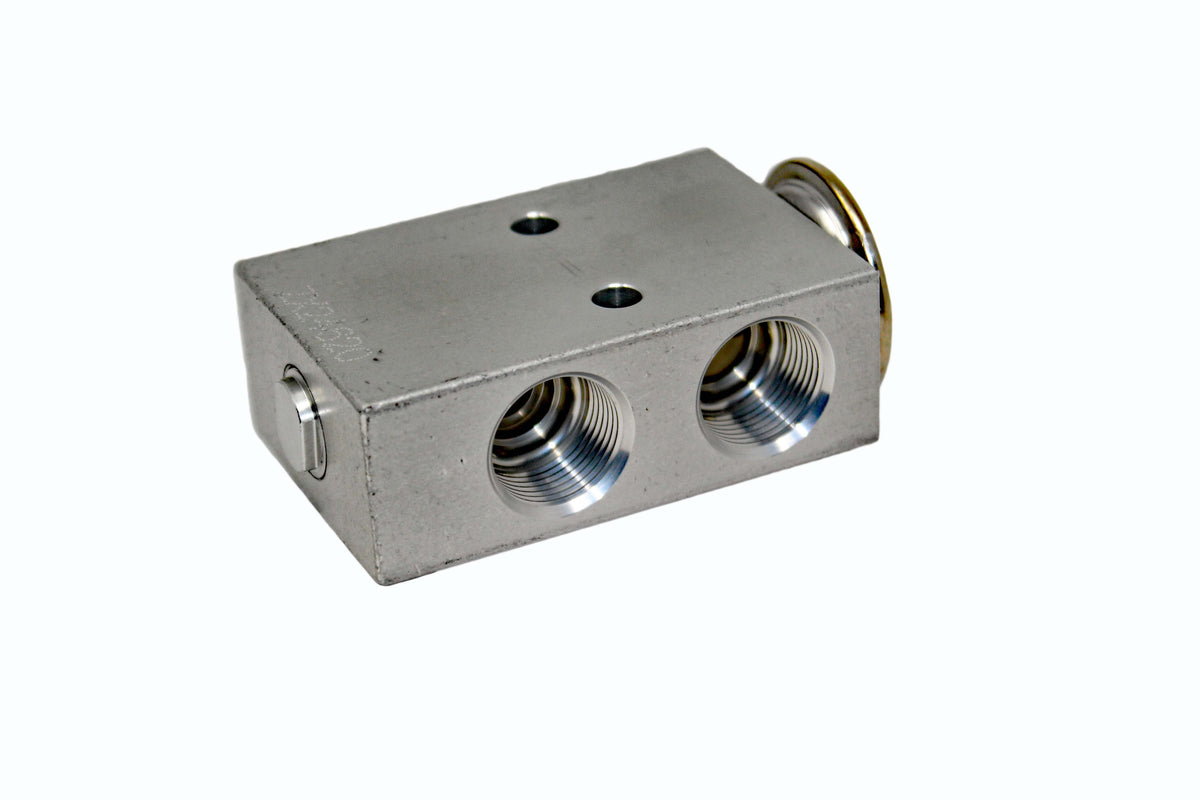

Expansion Valve Block for Red Dot units R-6100 R-7830 R-8500 71R8300

SKU: 71R8300
In stock
Ships Same Day if Ordered Before 12pm CST

Description

The expansion valve controls the flow of refrigerant into the evaporator. Similar to the carburetor on an engine, the expansion valve prevents flooding and starving of refrigerant supply to the evaporator. The expansion valve is partially responsible for controlling the pressures within the A/C system.
  • Part Number: 71R8300
  • Type: Block
  • Refrigerant: R-134A
  • Rating: 1.5 ton
  • Coil fittings: #8 #8
  • Hose fittings: #6 #10
  • Special Attribute: 1/4" Through Mounting Holes
  • Special Attribute: Fits Red Dot units R-6100, R-6101, R-7830, R-8500

Interchange Numbers:

  • 04-1244
  • 12-0612A
  • 12-0613
  • 12-0613A
  • 1696476
  • 232-8556
  • 3916657
  • 4379-RD568680
  • 4379-RD568680P
  • 4379-RD568681
  • 4820-01-466-4615
  • 4820014664615
  • 60012-4401
  • 60012-5001
  • 60058-3401
  • ABP N83 308011
  • RD-5-6868-0P
  • RDH RD5 6868 0
  • RDHRD568680P
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
$43.48
