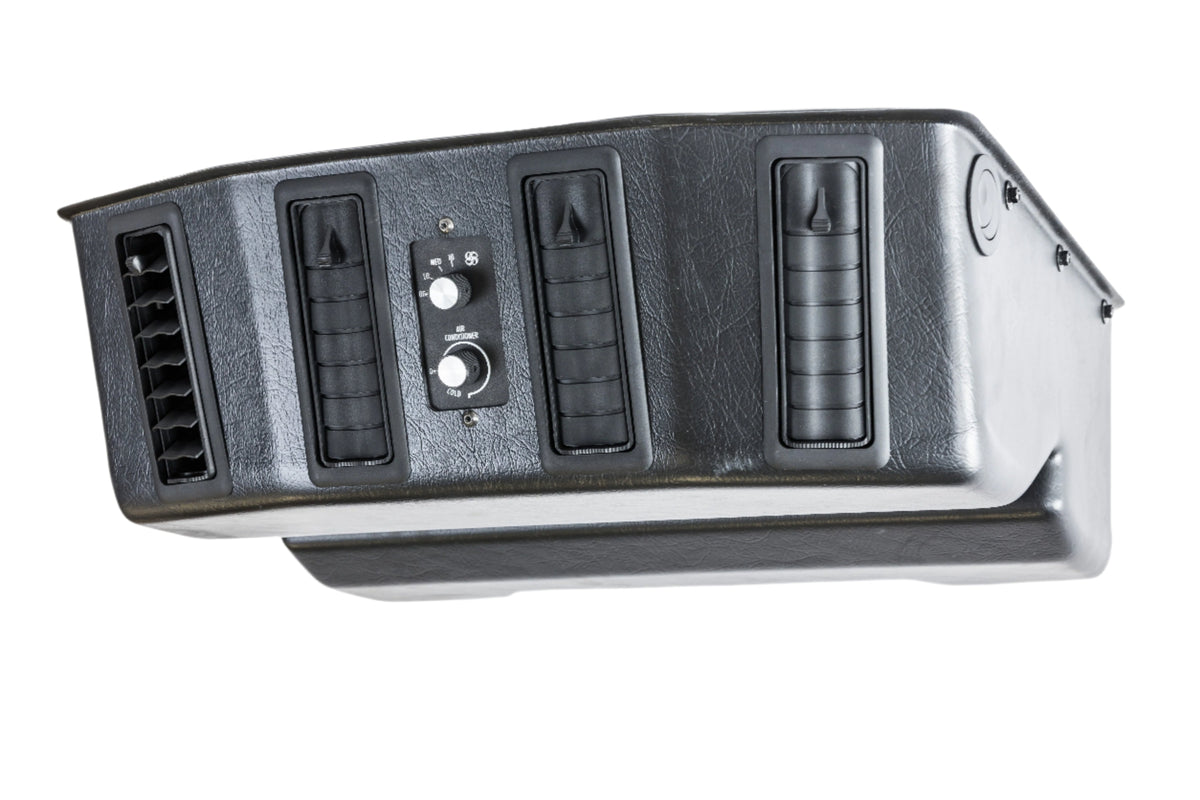

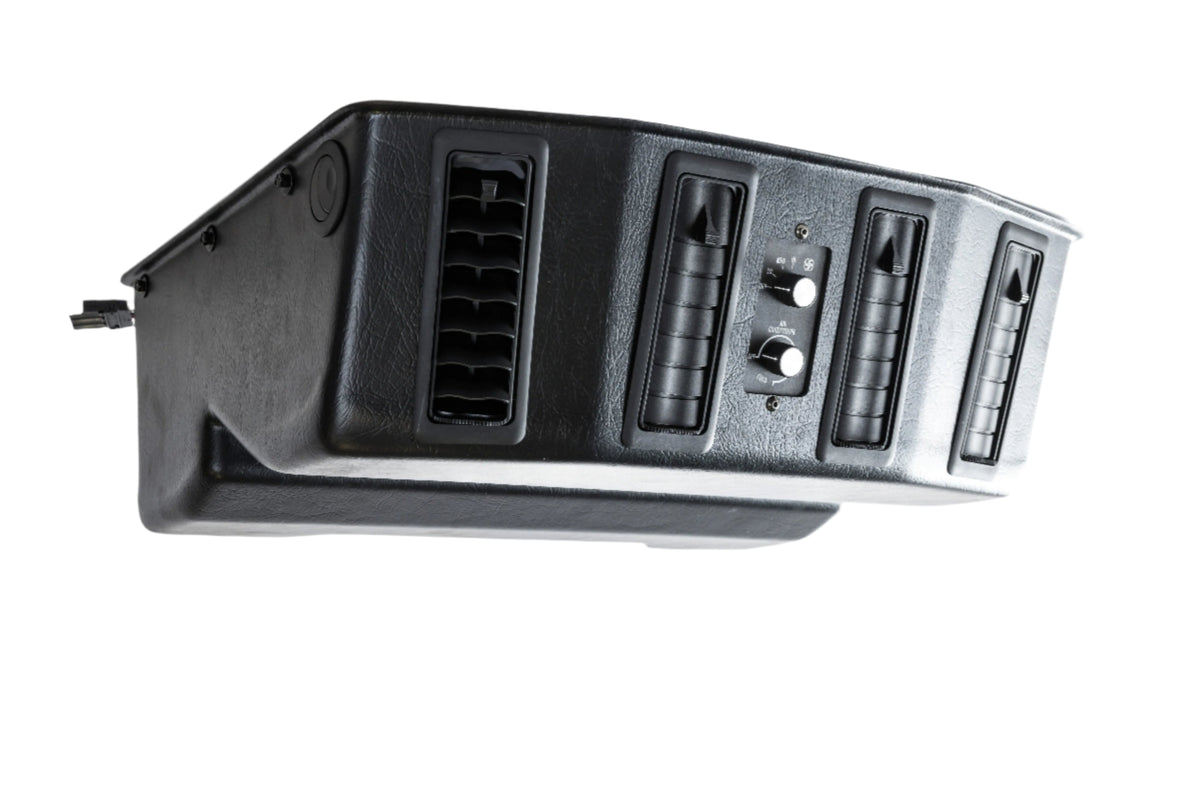

Red Dot AC Evaporator Unit 12v Ceiling Mount R-9715-11P

SKU: R-9715-11P
Out of stock
Currently Out of Stock with our Shopify Collective Partner
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
$1,471.26
$1,839.08 $1,471.26

Ask An Expert

Email 573-993-3849

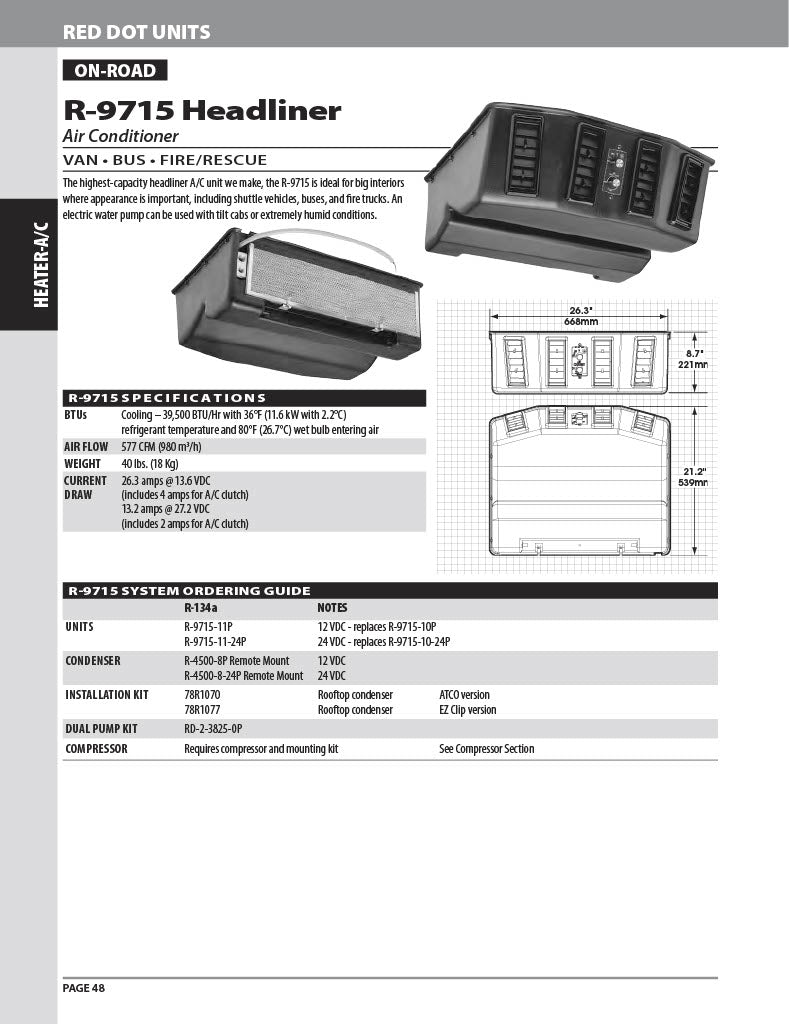

The highest capacity headliner unit made by Red Dot. The R-9715 series is ideal for large interiors where appearance is important, including shuttle vehicles, busses and fire trucks.

The Evaporator is mounted inside the operator space and absorbs heat from the cabin air into the refrigerant. The capacity of the Evaporator is limited by several factors including the capacity of the compressor.

  • Part Number: R-9715-11P
  • Type: Evaporator unit
  • Mounting: Ceiling
  • Voltage: 12 vdc
  • Current Draw: 26.3 amps @13.6 vdc
  • Capacity: 39500 btu cool
  • Airflow: 577 cfm
  • R-134A
  • recirculation air filter included
Recommended Pairings
  • Evaporator: included
  • Compressor: Sold separate. Any QP21 or QP31 with pulley matched to your engine and clutch voltage matched to your electrical system
  • Condenser: Sold separate. R-4500, R-9730 series or a condenser having capacity higher than 44,000 btu
  • Drier: 74R1106 which has an integral mounting bracket to simplify installation
  • Hose kit: Sold Separate 10-7-0002
  • Type Units
  • Vendor VMACSINC
  • SKU R-9715-11P

This is a Shopify Collective Product. Returns, refunds, restocking fees, and exchanges are set by the Collective Partner and are subject to change at any time. If you would like more information, please reach out to our team.
