Regular price
$1,140.04
Ask An Expert

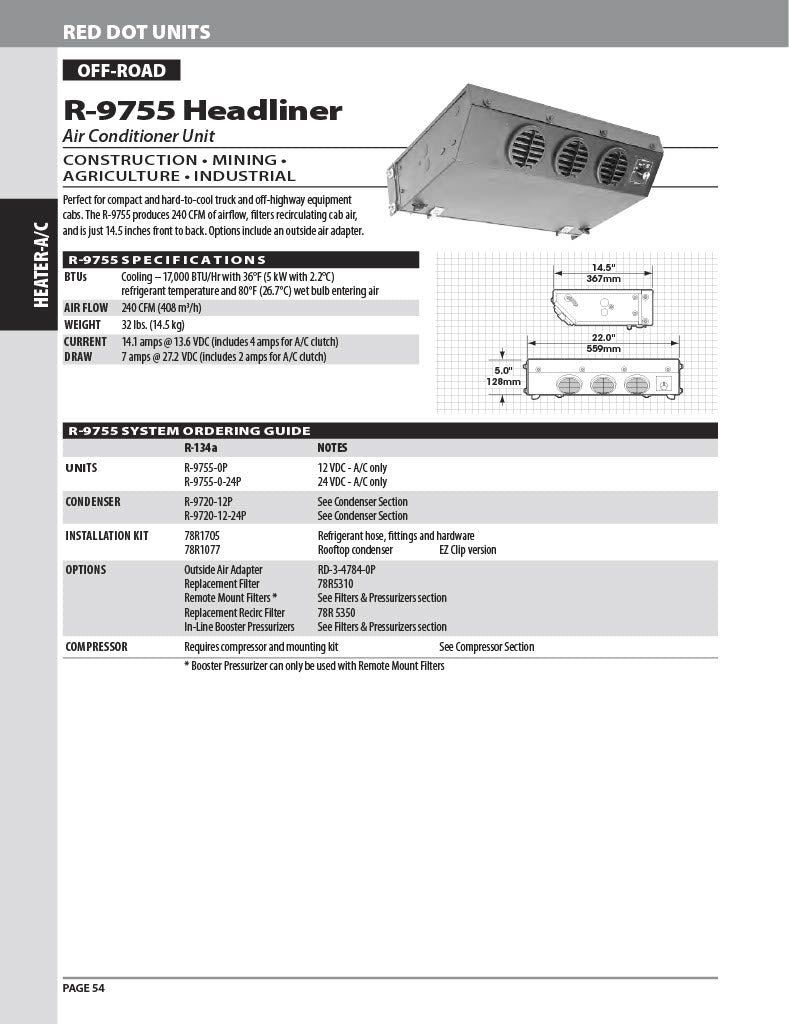

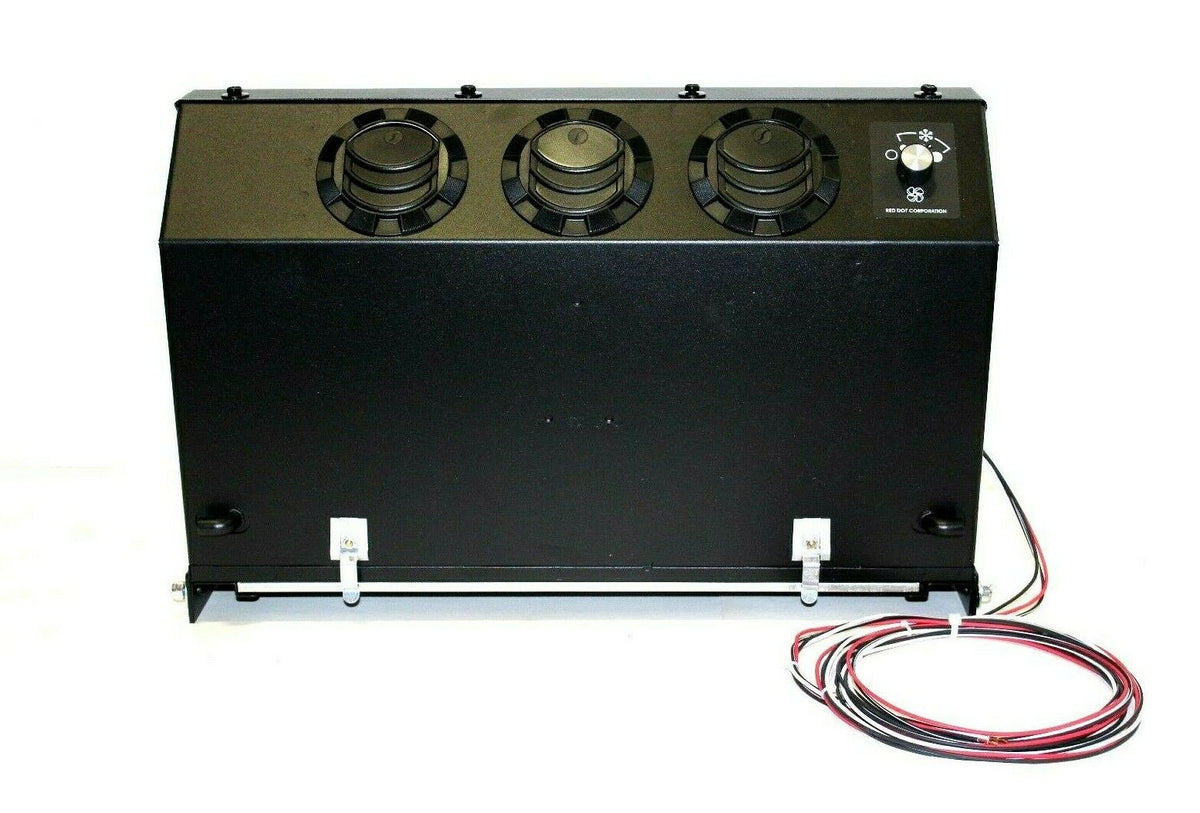

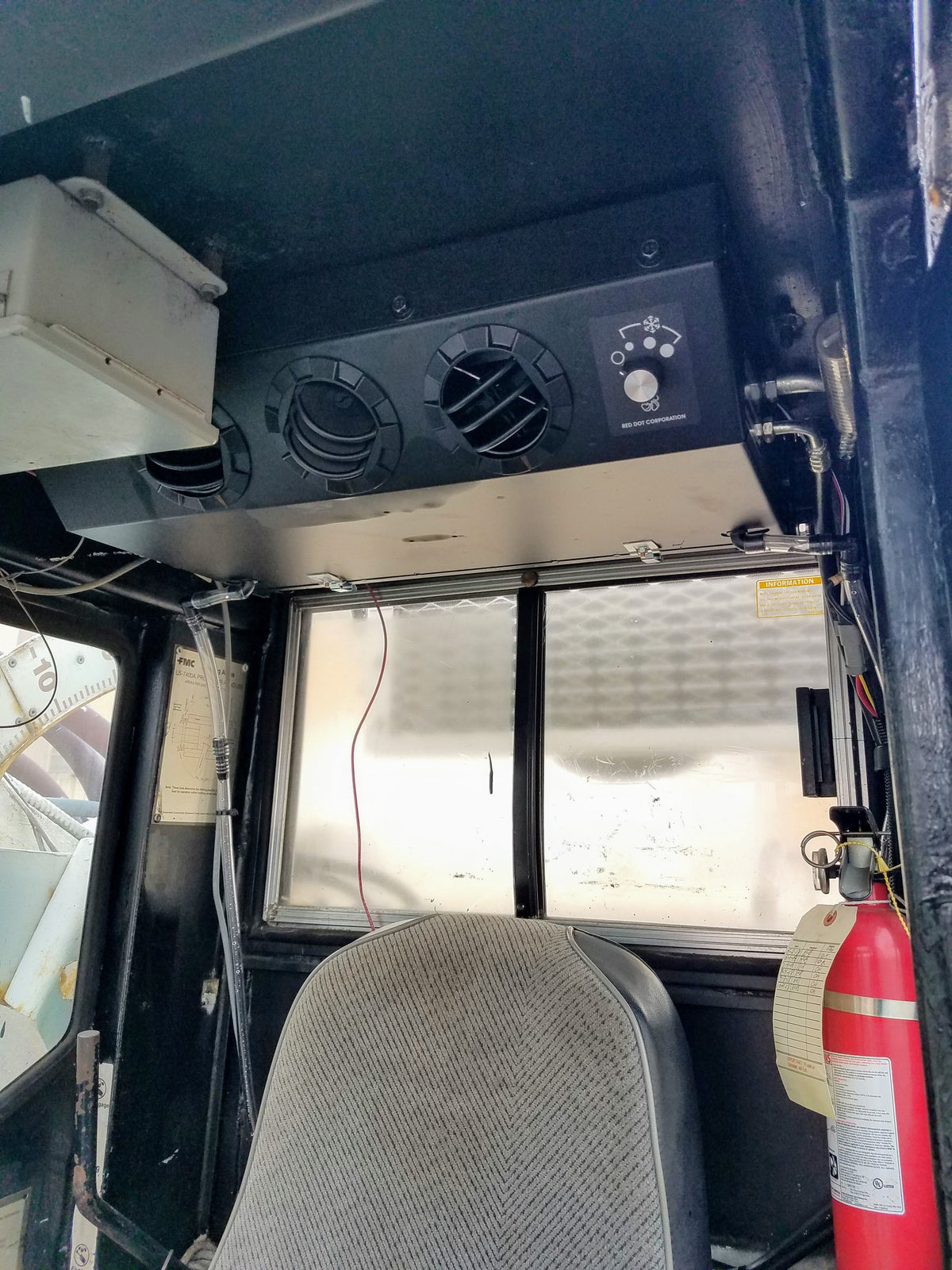

Perfect for compact and hard-to-cool truck and off-highway equipment cabs. The R-9755 produces 240 cfm of airflow, filters recirculating cab air and is just 14.5 inches front to back. Options include a fresh air filter adapter.
The Evaporator is mounted inside the operator space and absorbs heat from the cabin air into the refrigerant. The capacity of the Evaporator is limited by several factors including the capacity of the compressor. Most evaporators will realize maximum capacity when paired with a Sanden SD7H15 or Sanden FLX7 model compressor.
- Part Number: R-9755-0P
- Type: Evaporator unit
- Mounting: CeilingÂ
- Voltage: 12 vdc
- Current Draw: 14.1 amps @13.6 vdc
- Capacity: 17000 btu cool
- Airflow: 240 cfm
- R-134A

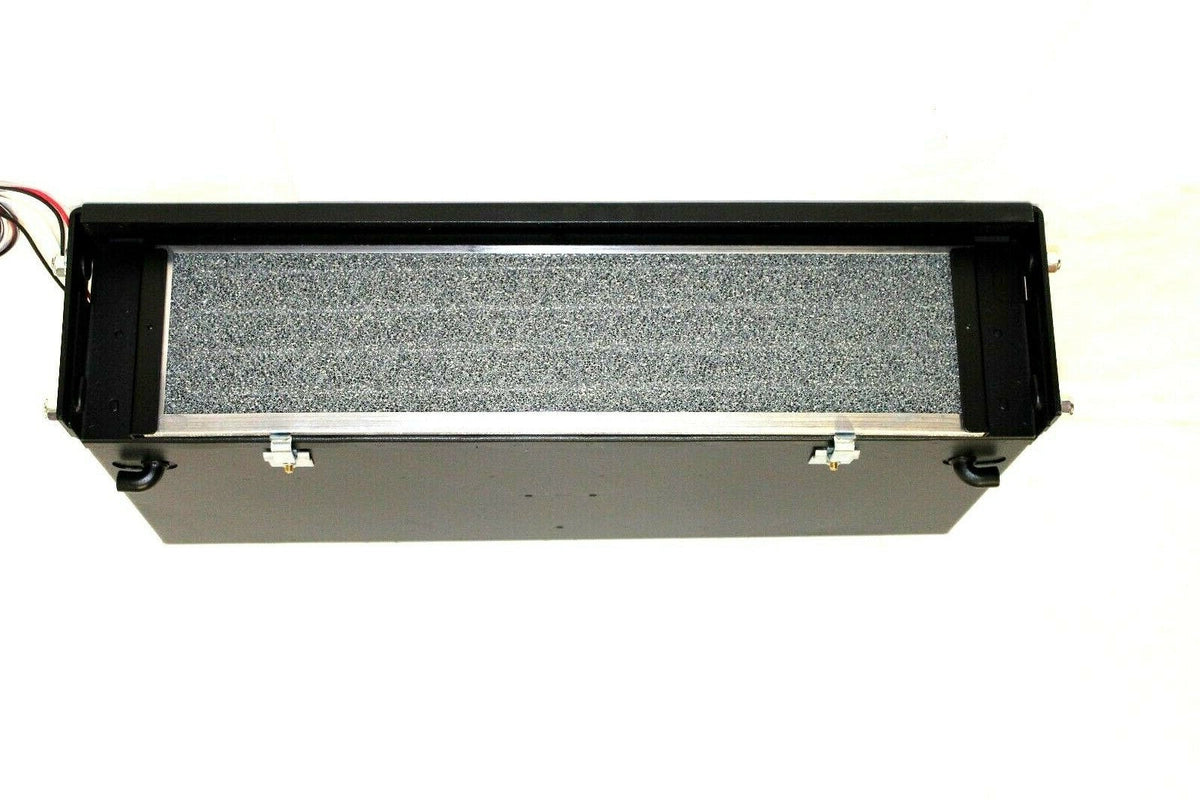

- recirculation air filter included
- Evaporator: included
- Compressor: Sold separate. Any Sanden SD7H15 with pulley matched to your engine and clutch voltage matched to your electrical systemÂ
- Condenser: Sold separate. R-9720 series or a condenser having capacity higher than 20,000 btuÂ
- Drier: 74R1106 which has an integral mounting bracket to simplify installation
- Hose kit: Sold Separate 10-7-0002
- Type Units
- Vendor VMACSINC
- SKU R-9755-0P
