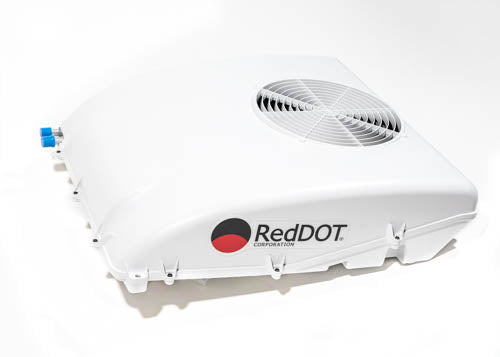

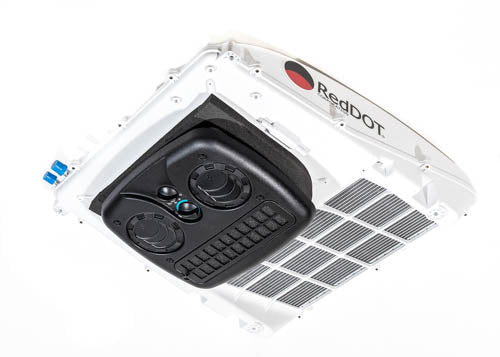

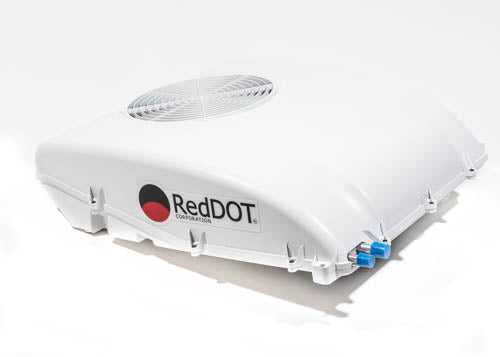

The Red Dot R-6101 Series rooftop mounted AC unit is a sleek low profile design that looks right at home on today's truck and equipment cabs. The injection molded housing has pockets to hold the receiver-drier, blower assembly and evaporator coil so they're easier to service. A 12 inch Spal fan, dual-scroll/dual inlet Spal blower, rifled-tube evaporator and a parallel flow condenser contribute to impressive performance.
- Part Number: R-6101-0-24P
- Type: AC Unit
- Mounting: Rooftop
- Voltage: 24 vdc
- Current Draw: 12.9 amps @ 27.2 vdc
- Capacity: 21300 btu cool
- Airflow: 299 cfm
- R-134A
- recirculation air filter included
- light weight 40 lbs
- separate compressor required
- Replacement roof gasket seal: RD-5-15378-0P
- Evaporator: included
- Compressor: Sold separate. Any Sanden SD7H15 with pulley matched to your engine and clutch voltage matched to your electrical system
- Condenser: included
- Drier: included
- Hose kit: Sold Separate 10-7-0004
- Type Units
- Vendor VMACSINC
- SKU R-6101-0-24P
