Regular price
$2,228.44
Ask An Expert

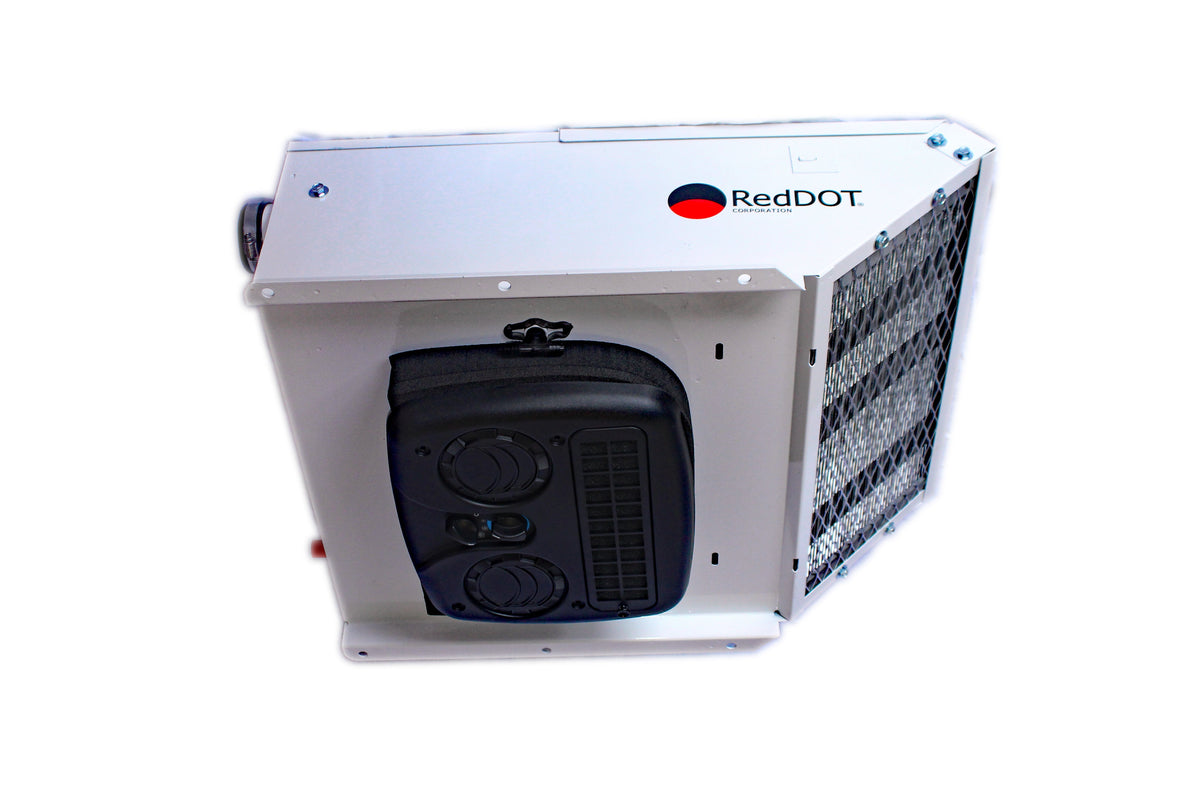

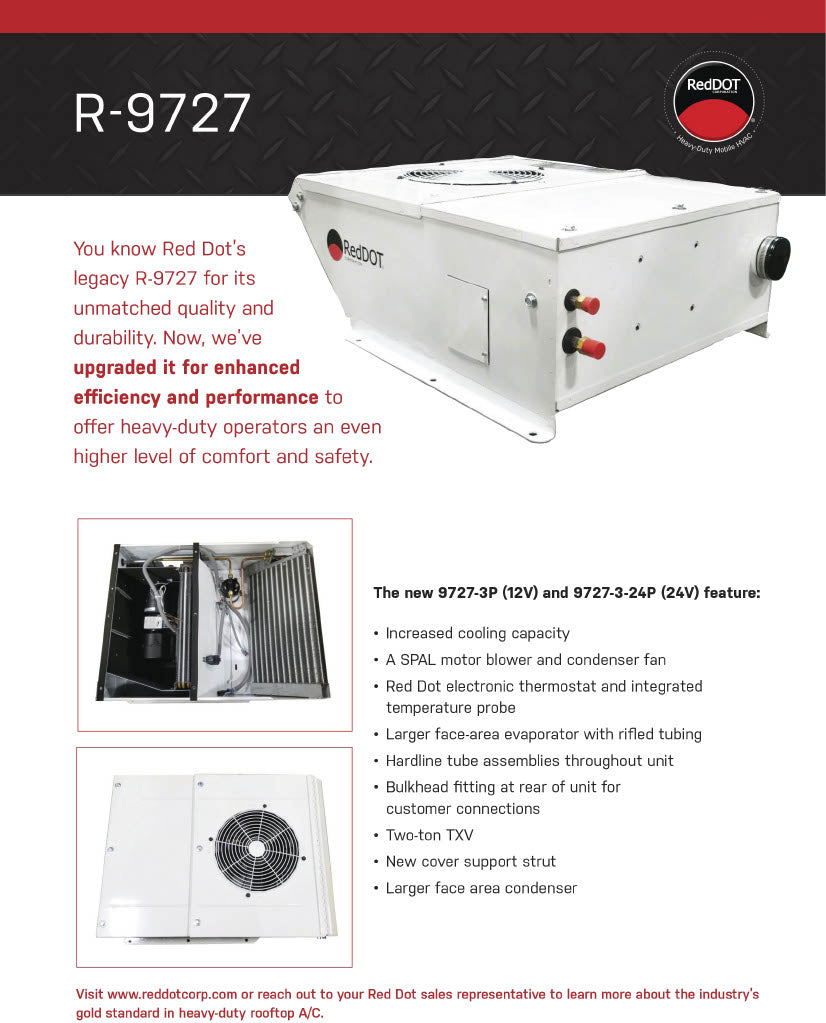

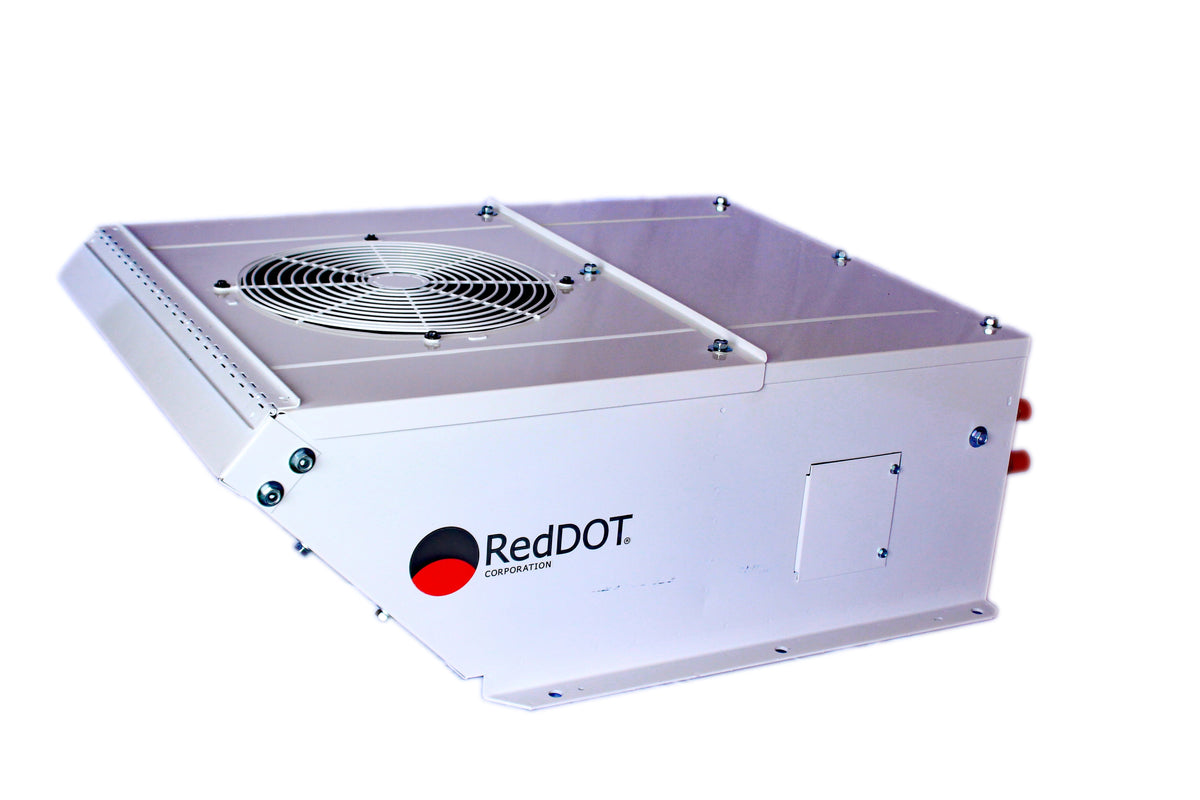

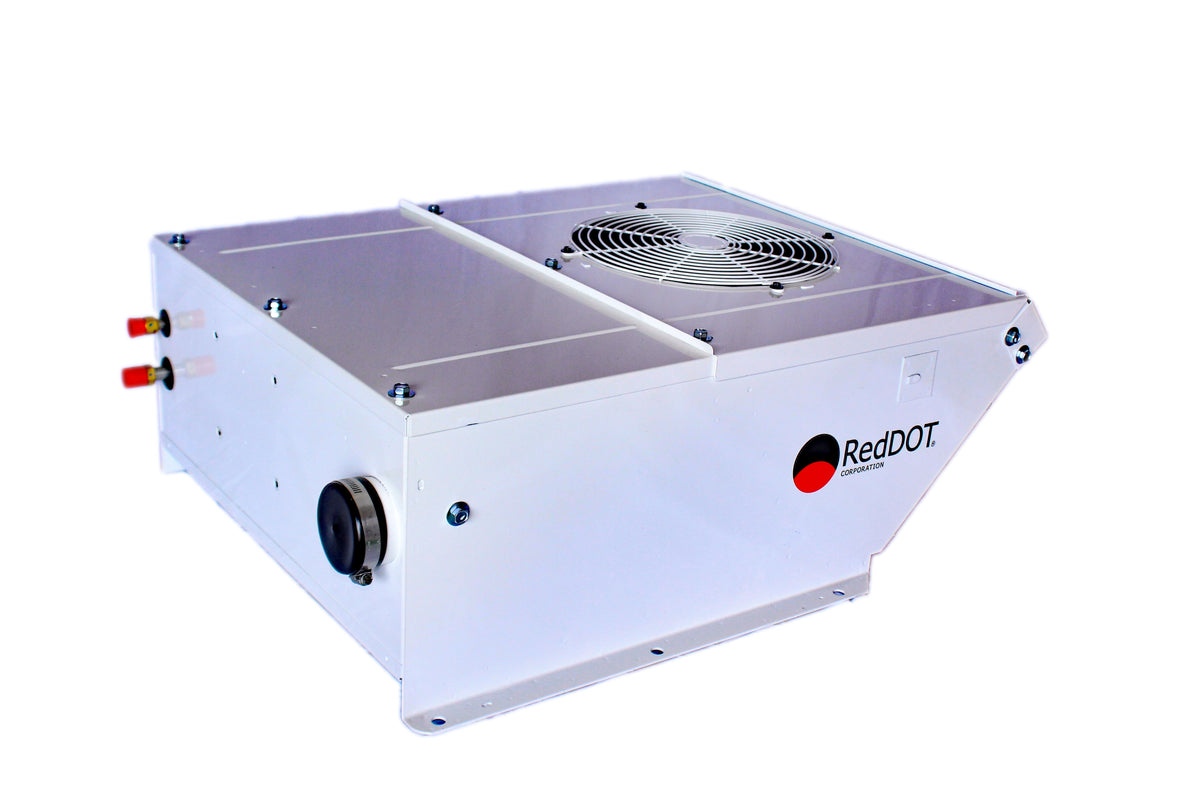

The Red Dot R-9727 Series sets the standard for rooftop air conditioners in tough work environments. Renowned for its build quality, reliability, and performance. The heavy-gauge steel casing is gusseted and reinforced for structural integrity to stand the test of time under rough working conditions. Options include a hydraulic compressor kit, remote mount air filtration and in-line booster blower for a pressurized, dust-free cab.

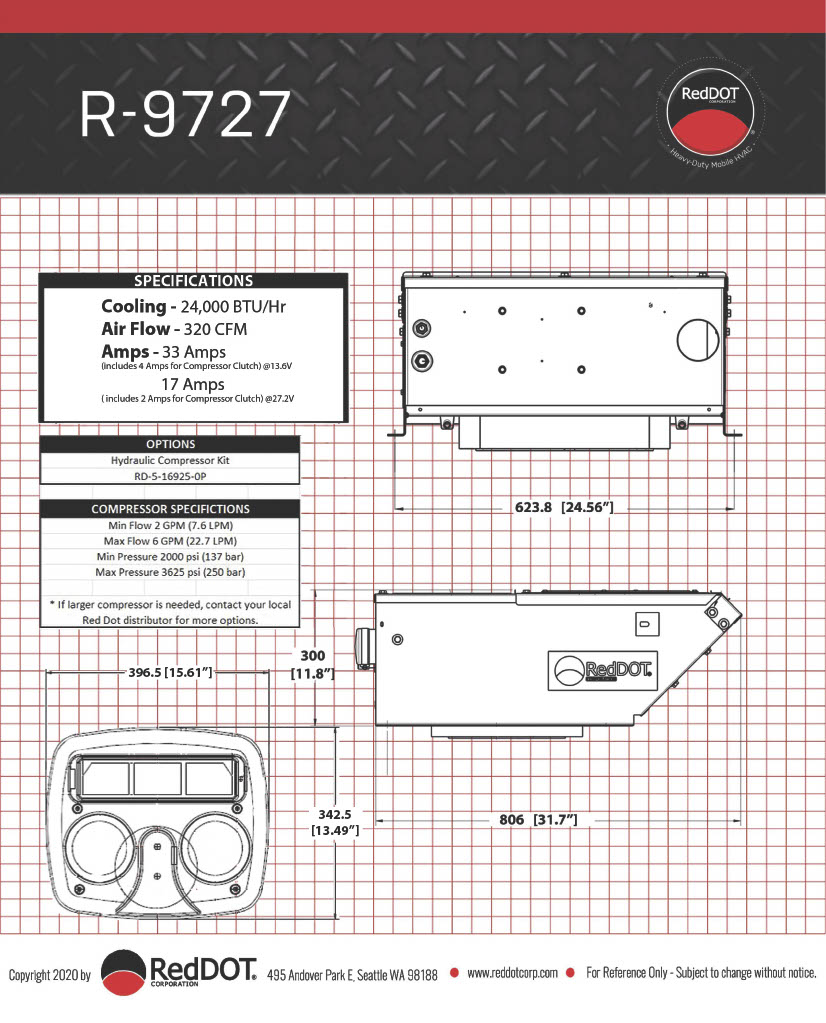

- Part Number: R-9727-3-24P
- Type: AC unit
- Mounting: Rooftop
- Voltage: 24 vdc
- Current Draw: 17 amps @ 27.2 vdc
- Capacity: 24000 btu cool
- Airflow: 320 cfm
- R-134A
- powder coated steel housing
- recirculation air filter included
- heavy duty 100 lbs
- separate compressor required
- fresh air filtration capable via optional external filtration canisters and/or pressurizers
- self contained, backpack mounted hydraulic compressor kit optional
-
DUE TO THE SIZE AND WEIGHT OF THIS PART, THIS UNIT MUST SHIP LTL FREIGHT ON A PALLET. FREIGHT CHARGES WILL BE APPLIED AT CHECKOUT. INTERNATIONAL SHIPMENTS PERMITTED TO CANADA ONLY.
Recommended Pairings:
- Evaporator: included
- Compressor: Sold separate. Any Sanden SD7H15 with pulley matched to your engine and clutch voltage matched to your electrical system
- Condenser: included
- Drier: included
- Hose kit: Sold Separate 10-7-0004
- Type Units
- Vendor VMACSINC
- SKU R-9727-3-24P
