Description

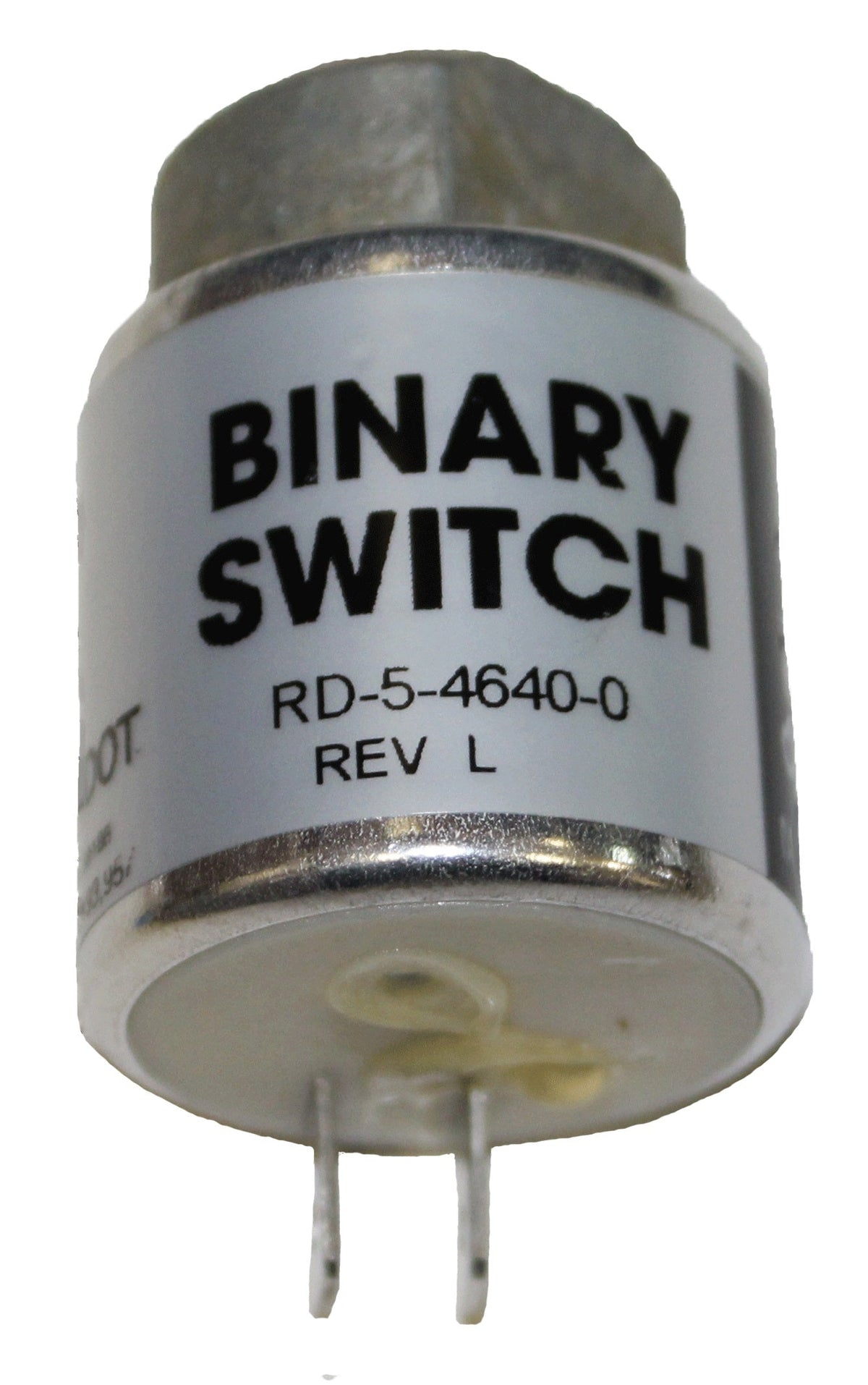

Binary pressure switches provide a simple and effective option for AC system pressure control. The pressure switch typically disconnects power supply to the compressor clutch to protect the compressor during abnormally high system pressure conditions and abnormally low system pressure conditions.
- Part Number: 71R7050

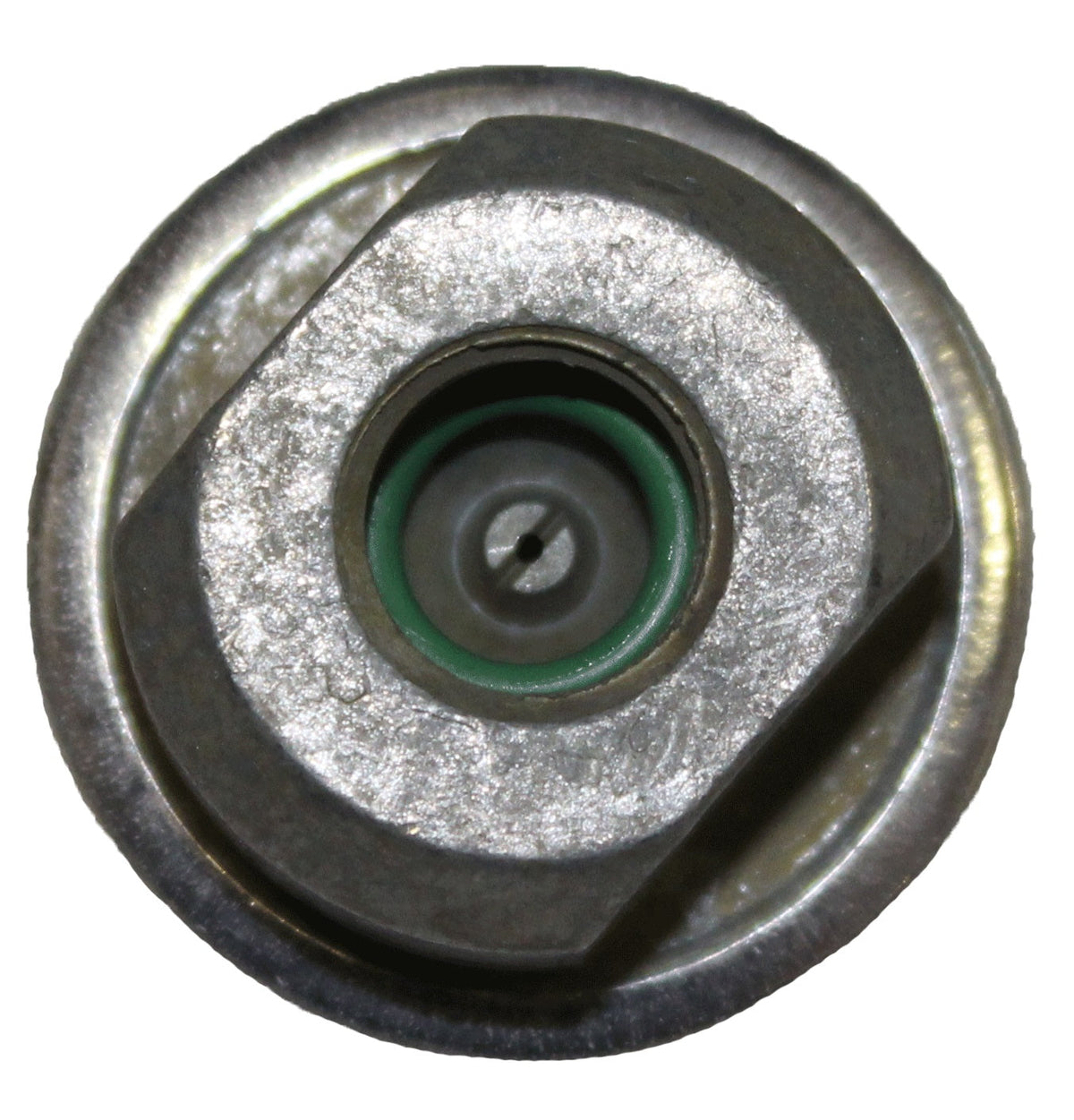

- Thread: 7/16-20 Female
- Function 1: low pressure protection
- Function 2: high pressure protection
- Terminals: 2
- Connector: .250 Male Spade
- Mating Connector: 71R4511
Interchange Numbers:
- 1-1069
- 11-2630
- 1510
- 20707100B
- 2299033
- 232-8541
- 279-2098
- 404415
- 417020 Thermo King Tripac
- 41-7020 Thermo King Tripac
- 4379-RD546400
- 4379-RD546400P
- 4379-RD559760P
- 4379-RD559761P
- 61522-0006
- 61522-006
- 650448
- 650636
- 850-8901
- 86508368
- 922-1010
- 925716
- ABP N83 318059
- ABP N83 318089
- AT262562
- BC10150
- BC10200
- E-807201
- RD-5-4640-0P
- RD546400
- RDHRD546400P
- RDT71R7050
- ZGG11069
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Regular price
$72.53
Ask An Expert
- Type Controls
- Vendor VMACSINC
- SKU 71R7050
