Description
Binary pressure switches provide a simple and effective option for AC system pressure control. The pressure switch typically disconnects power supply to the compressor clutch to protect the compressor during abnormally high system pressure conditions and abnormally low system pressure conditions.

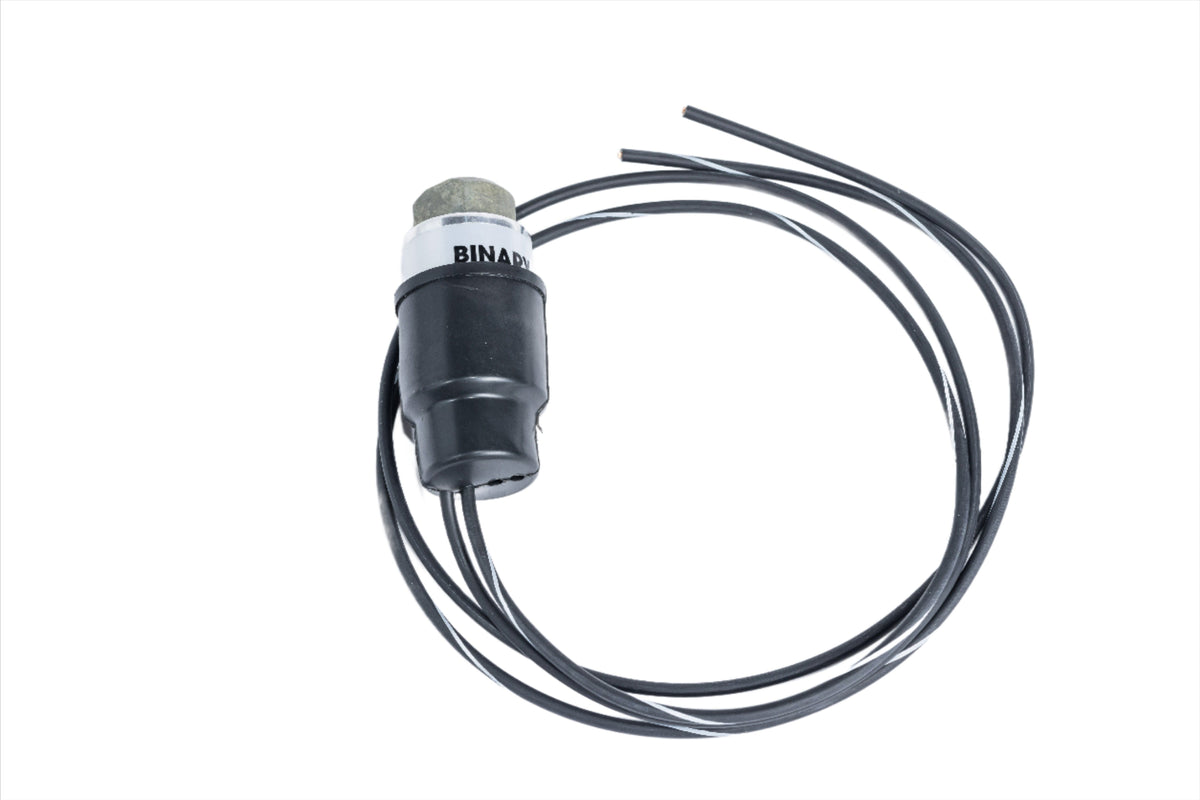

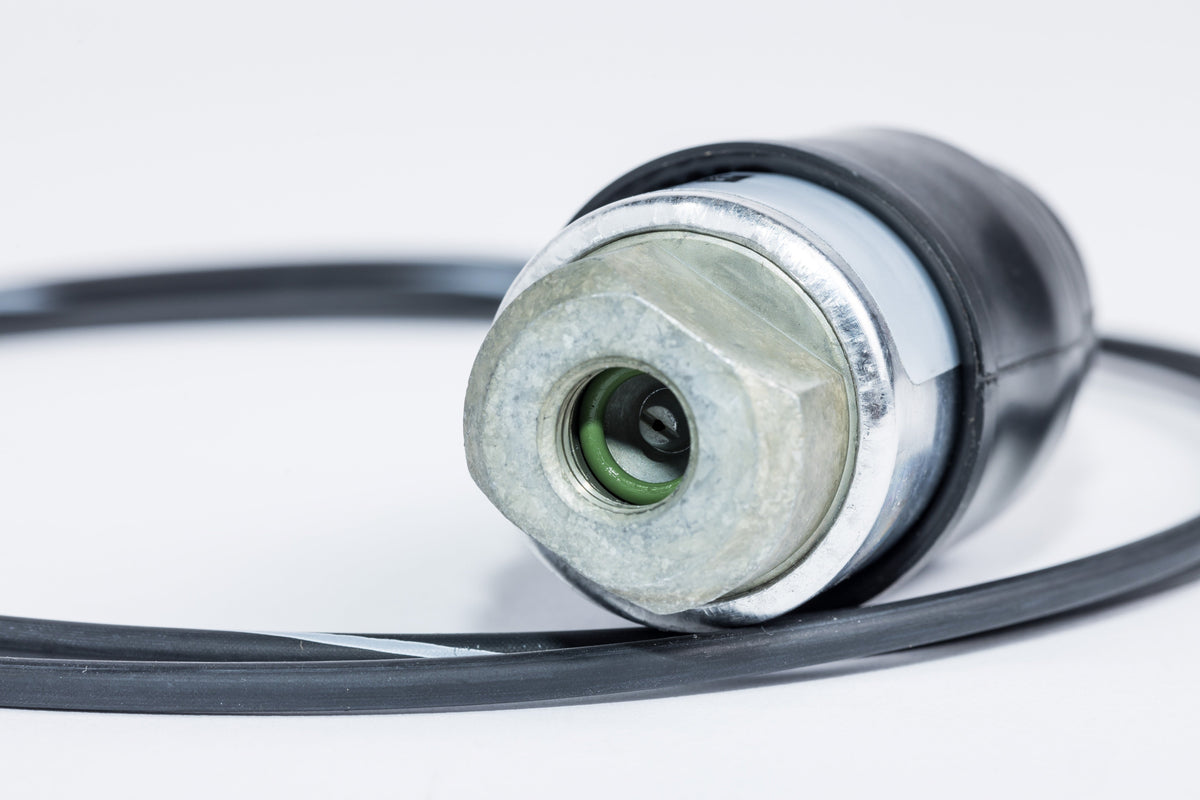

We assemble the 71R7050 Red Dot Binary pressure switch with it's matching 71R4511 connector boot to create this assembly.
- Part Number: 20-2-0002
- Thread: 7/16-20 Female
- Function 1: low pressure protection
- Function 2: high pressure protection
- Terminals: 2
- Connector: .250 Male Spade
- Special attribute: 71R7050 binary switch with 71R4511 mating connector
Interchange Numbers:
- 1-1069
- 11-2630
- 1510
- 20707100B
- 2299033
- 232-8541
- 279-2098
- 404415
- 417020 Thermo King Tripac
- 41-7020 Thermo King Tripac
- 4379-RD546400
- 4379-RD546400P
- 4379-RD559760P
- 4379-RD559761P
- 61522-0006
- 61522-006
- 650448
- 650636
- 850-8901
- 86508368
- 922-1010
- 925716
- ABP N83 318059
- ABP N83 318089
- AT262562
- BC10150
- BC10200
- E-807201
- RD-5-4640-0P
- RD546400
- RDHRD546400P
- RDT71R7050
- ZGG11069
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Regular price
$131.74
Ask An Expert
- Type Controls
- Vendor VMACSINC
- SKU 20-2-0002
