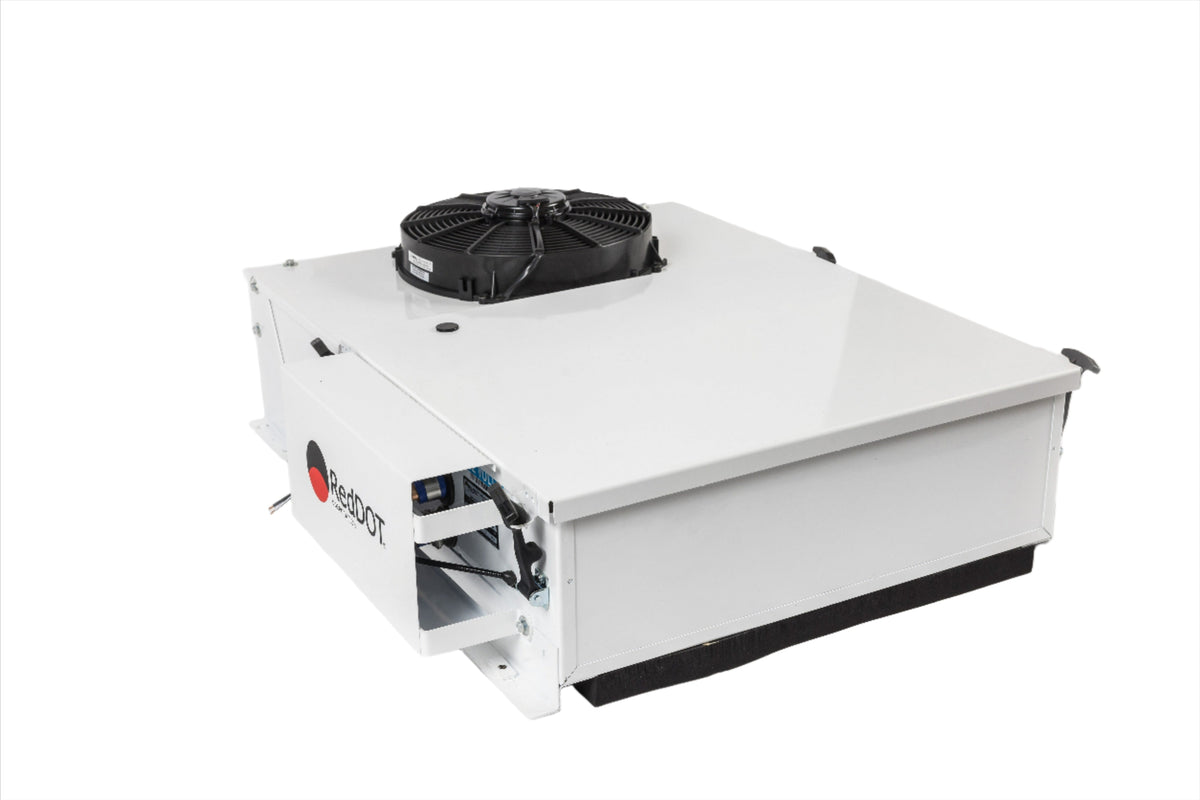

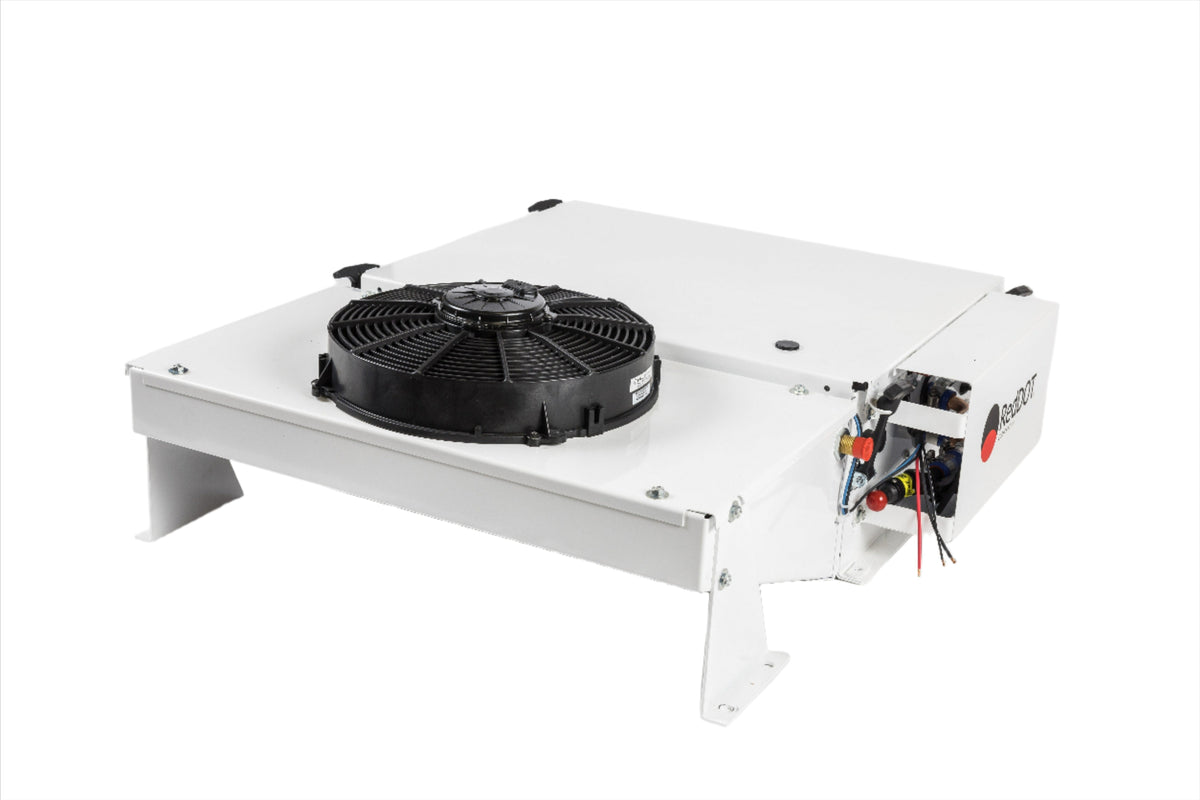

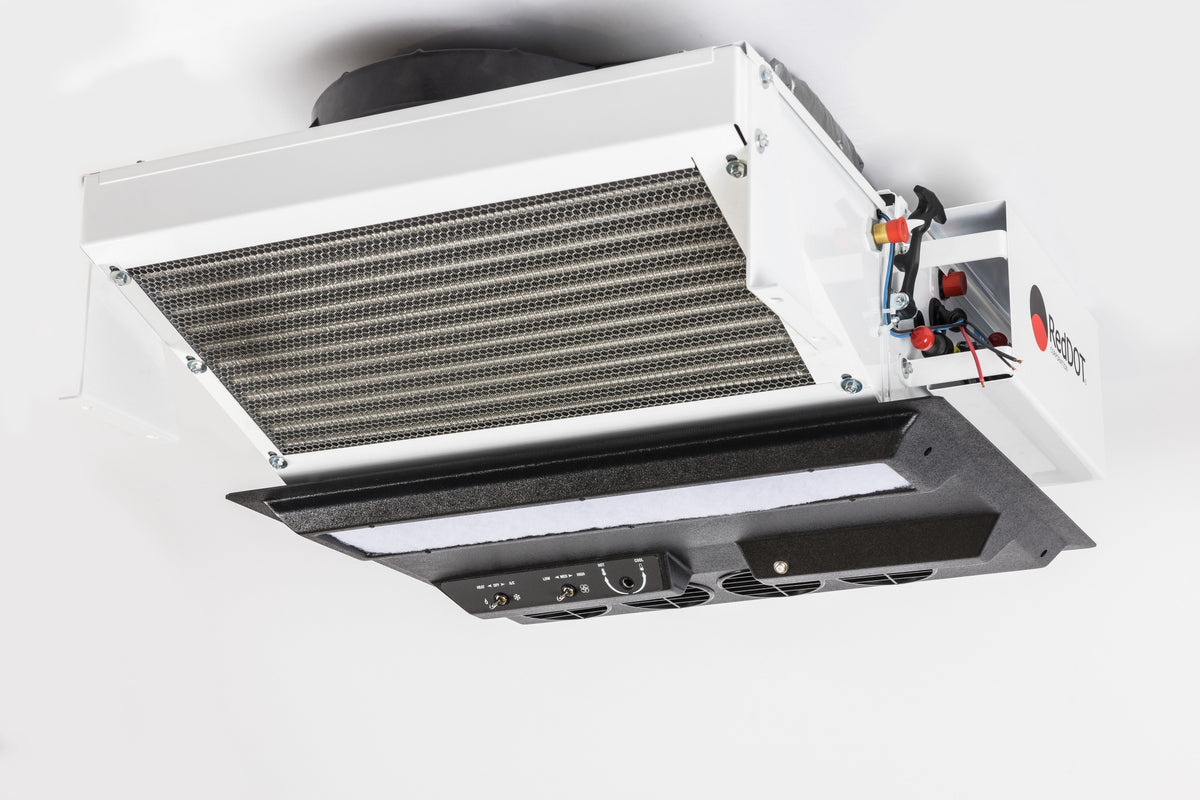

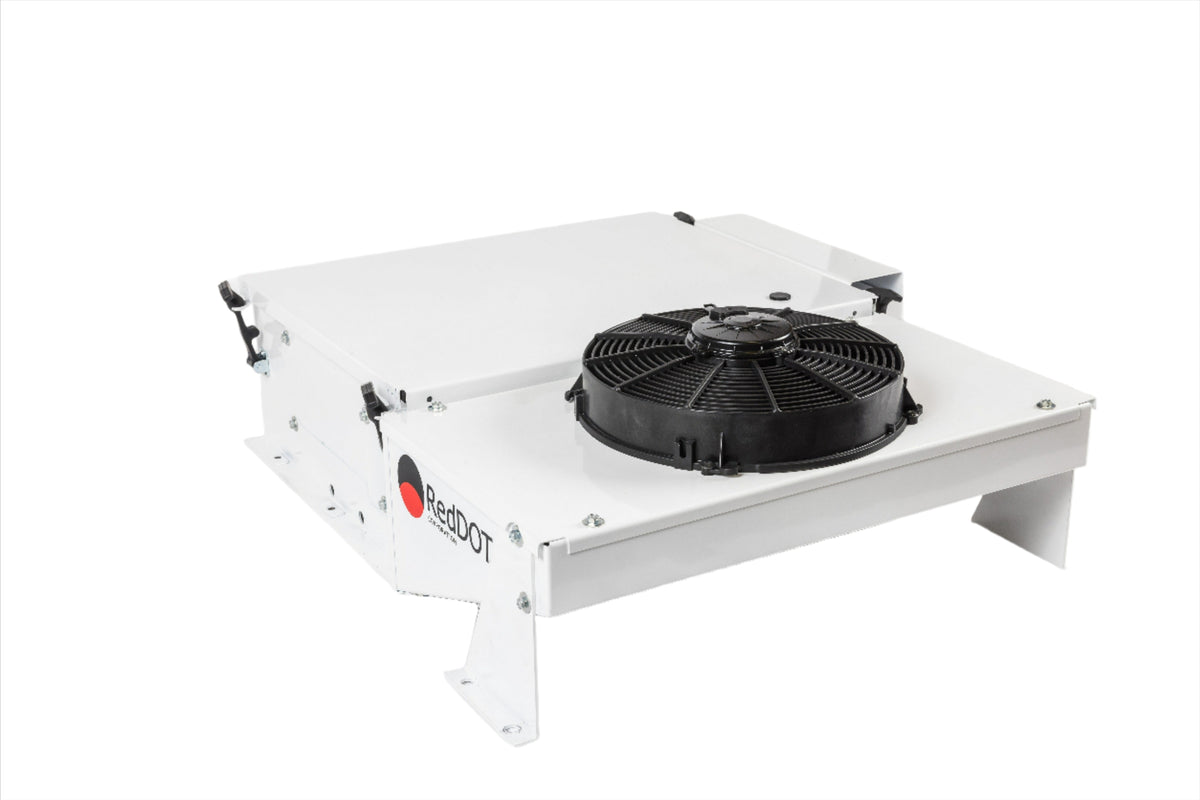

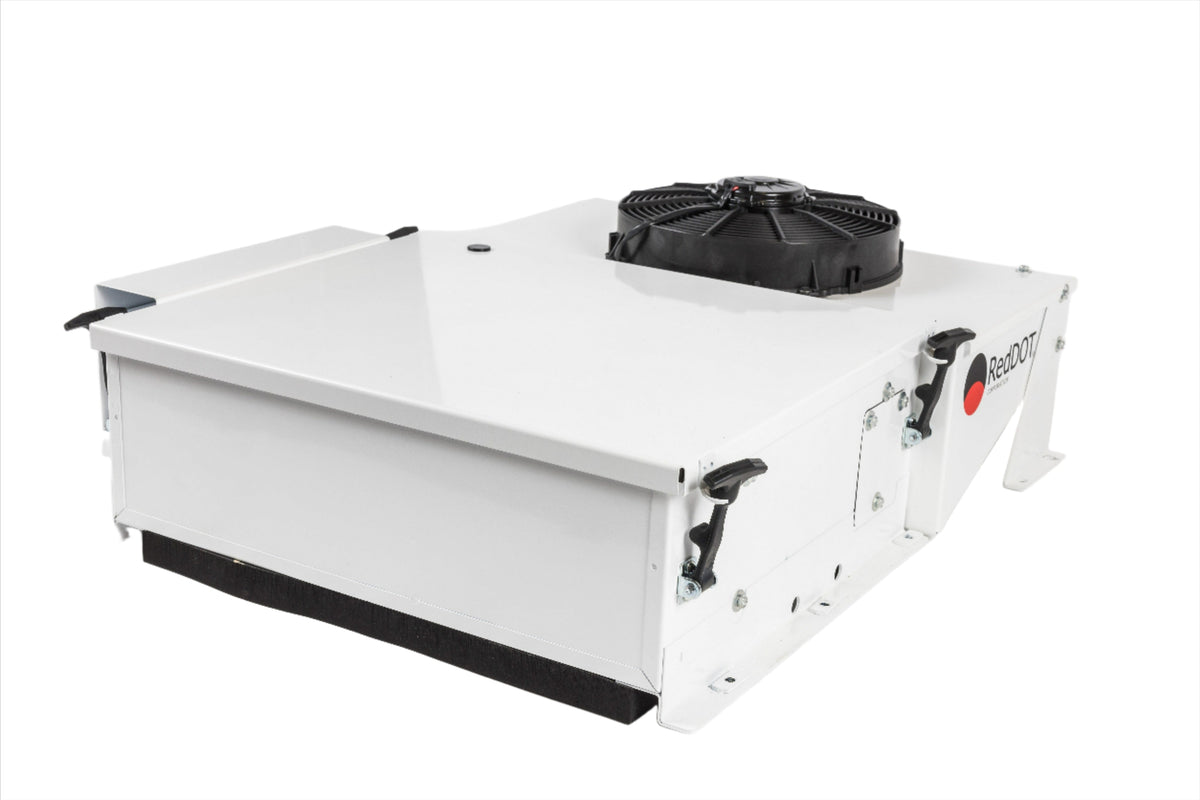

Red Dot HVAC Unit 24v Rooftop Mount R-9757-0-24P

SKU: R-9757-0-24P
Out of stock
Currently Out of Stock with our Shopify Collective Partner
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Regular price $3,498.00

Ask An Expert

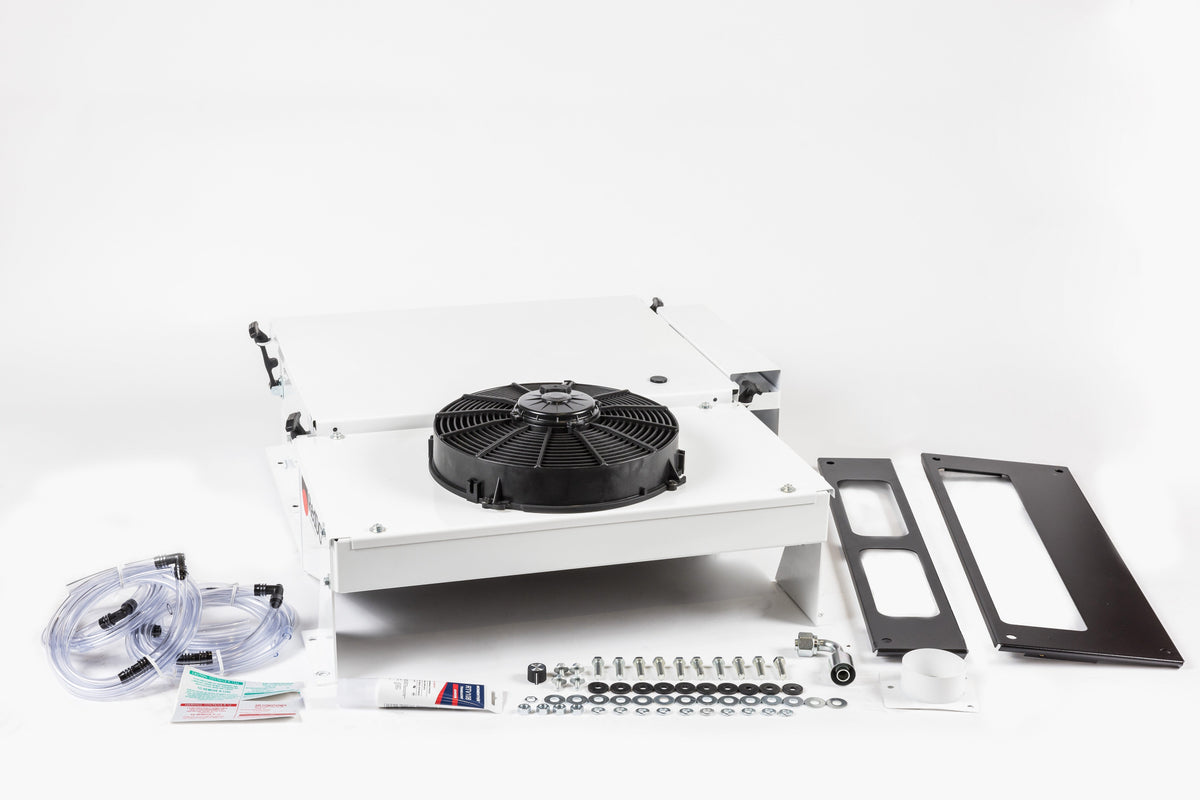

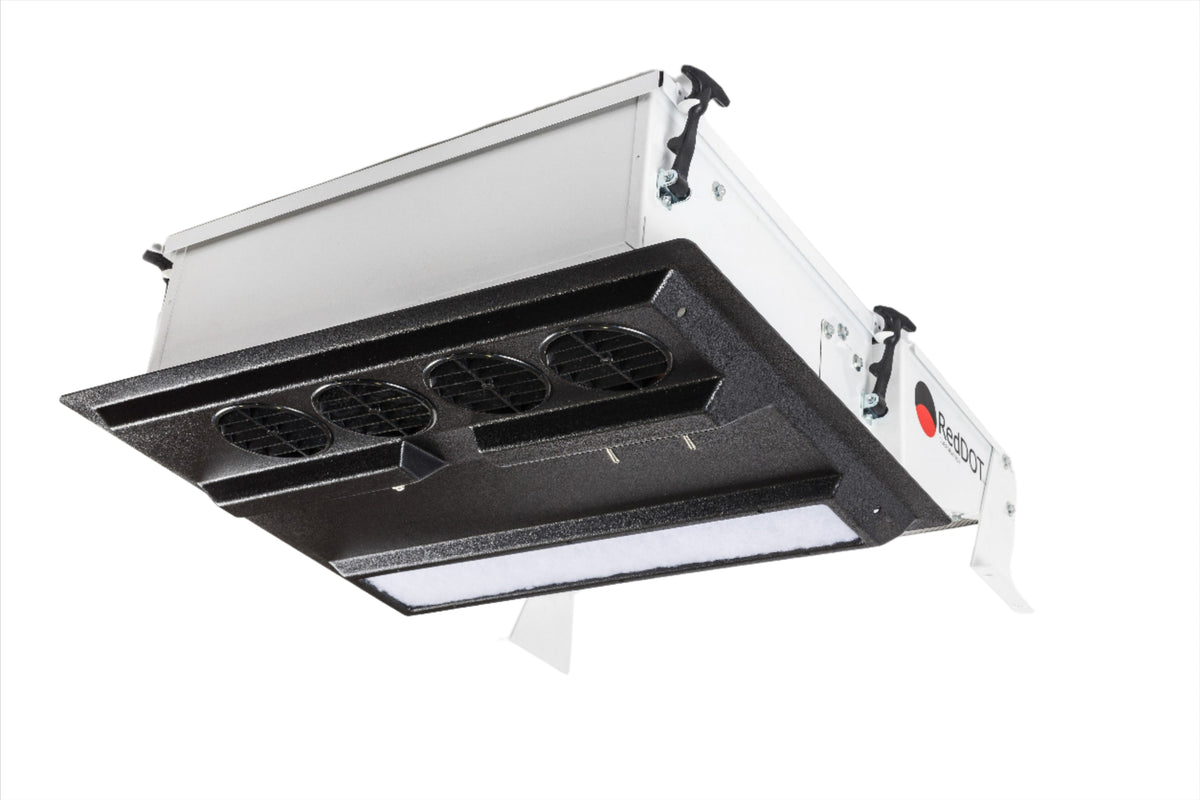

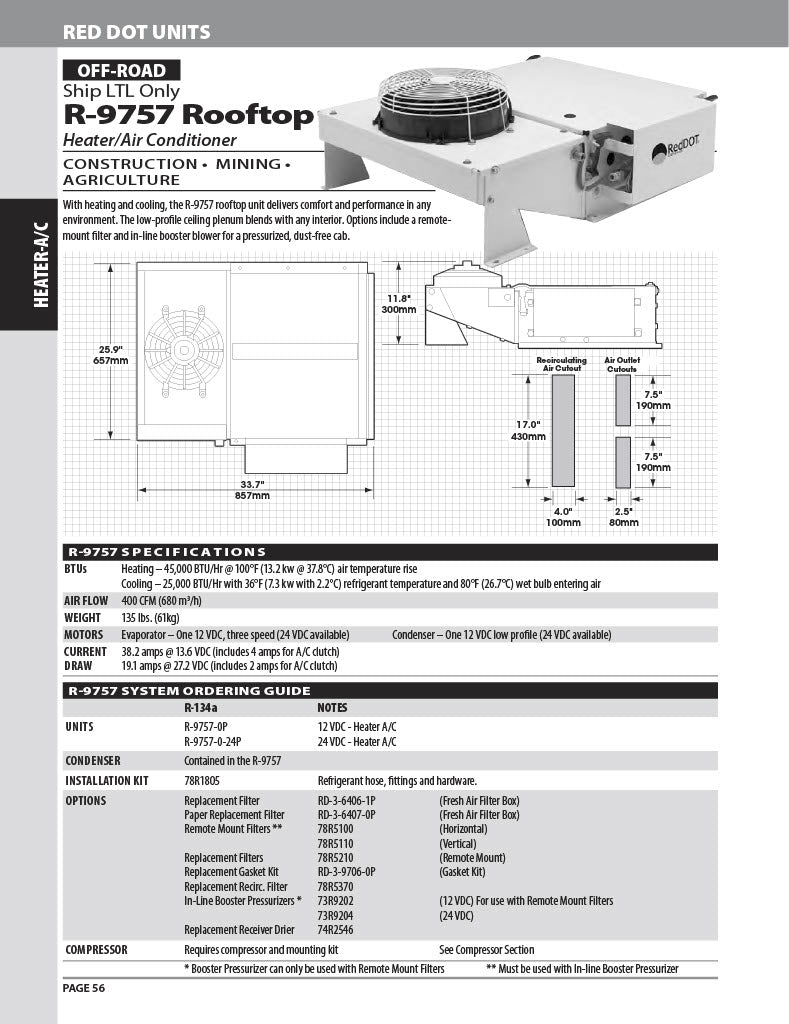

With heating and cooling, the R-9757 rooftop unit delivers comfort and performance in any environment. The low-profile ceiling plenum blends with any interior. Options include a remote mount filter and in-line booster blower for a pressurized, dust-free cab.

  • Part Number: R-9757-0-24P
  • Type: HVAC unit
  • Mounting: Rooftop
  • Voltage: 24 vdc
  • Current Draw: 19.1 amps @ 27.2 vdc
  • Capacity: 25000 btu cool
  • Capacity: 45000 btu heat
  • Airflow: 400 cfm
  • R-134A
  • Heavy Duty
  • recirculation air filter included
  • separate compressor required
  • fresh air capable
  • DUE TO THE SIZE AND WEIGHT OF THIS PART, THIS UNIT MUST SHIP LTL FREIGHT ON A PALLET. FREIGHT CHARGES WILL BE APPLIED AT CHECKOUT. INTERNATIONAL SHIPMENTS PERMITTED TO CANADA ONLY.

Recommended Pairings:

  • Evaporator: included
  • Compressor: Sold separate. Any Sanden SD7H15 with pulley matched to your engine and clutch voltage matched to your electrical system
  • Condenser: included
  • Drier: included
  • Hose kit: Sold Separate 10-7-0004
