Red Dot Plenum Assembly for Rooftop A/C Units RD-2-5974-0P

SKU: RD-2-5974-0P
In stock
In Stock with our Shopify Collective Partner
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
$220.40

Ask An Expert

Email 573-993-3849

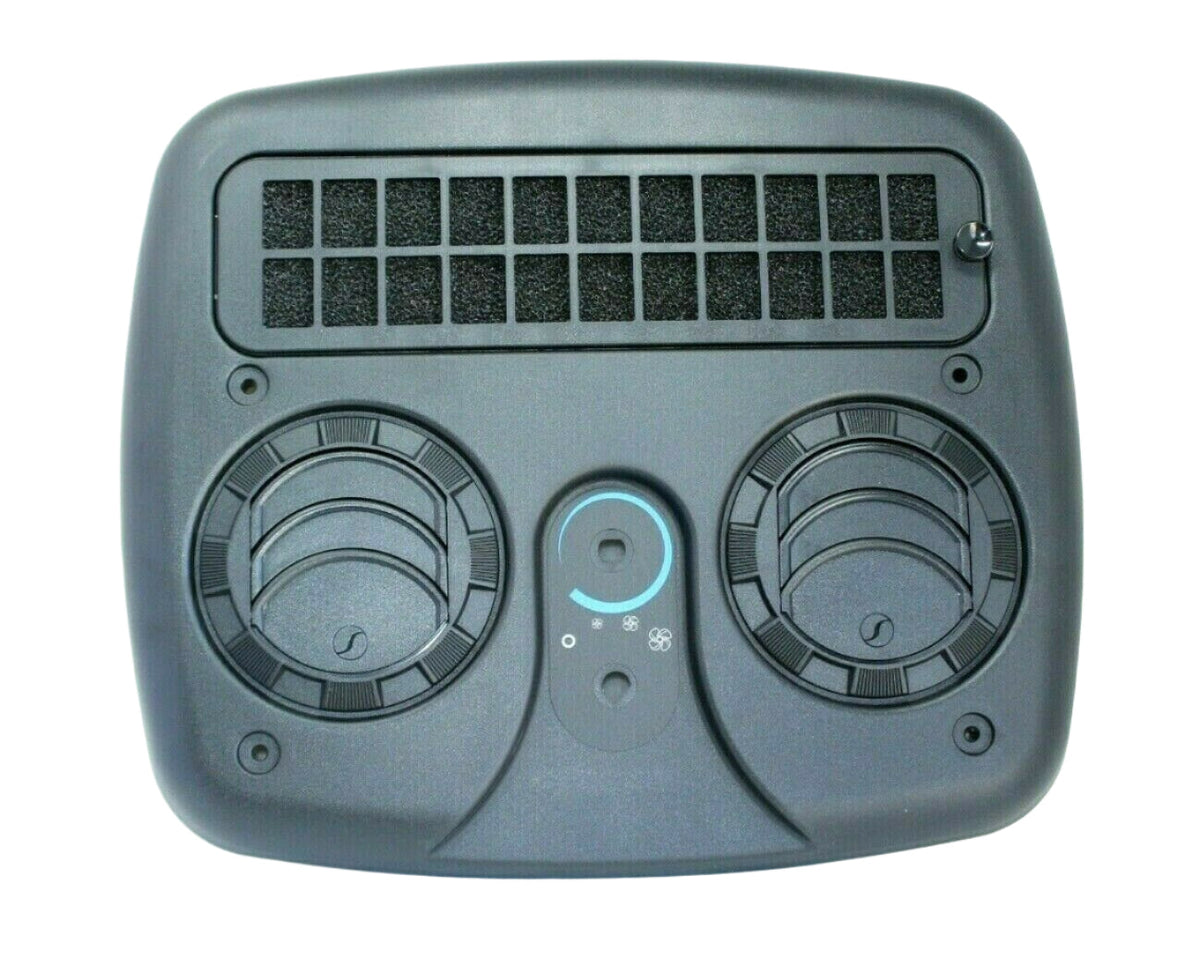

The Red Dot RD-2-5974-0P plenum assembly is used with multiple rooftop air conditioning units. The Plenum is easily replaceable by removing the 4 mounting screws from the original plenum. Swap the 2 control switches onto the new plenum and fasten the new plenum into position using the 4 original mounting screws.

  • Part Number: RD-2-5974-0P
Replacement for the Following Red Dot rooftop Units:
  • E-6100 series
  • R-6100 series
  • R-6101 series
  • R-9727-2 series
Includes the following components:
  • Re-circulation air filter
  • Re-circulation air filter retaining door
  • Adjustable louvers
  • Fan speed and temperature adjustment decal
Following items sold separately:
  • Thermostat - Order by unit model
  • Blower Switch - Order by unit model
  • Control Knobs - Order by unit model
  • Type Case Parts
  • Vendor VMACSINC
  • SKU RD-2-5974-0P

This is a Shopify Collective Product. Returns, refunds, restocking fees, and exchanges are set by the Collective Partner and are subject to change at any time. If you would like more information, please reach out to our team.
