Description

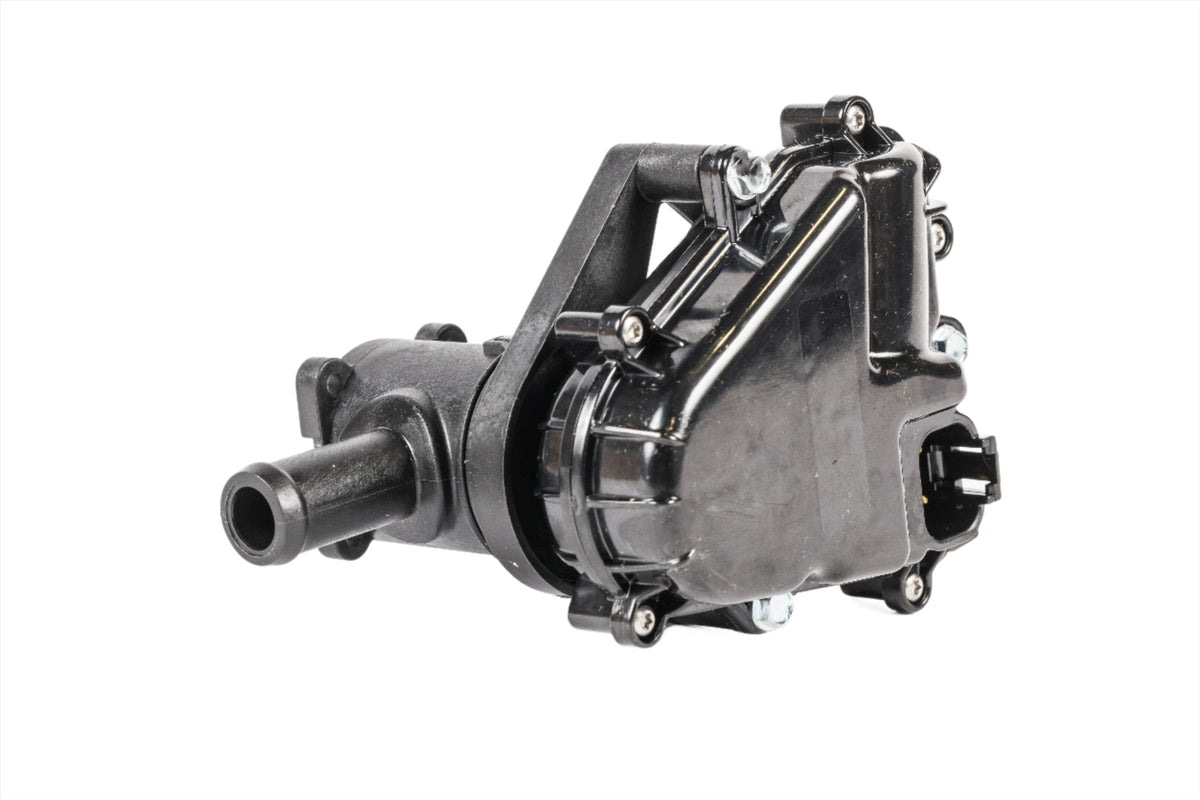

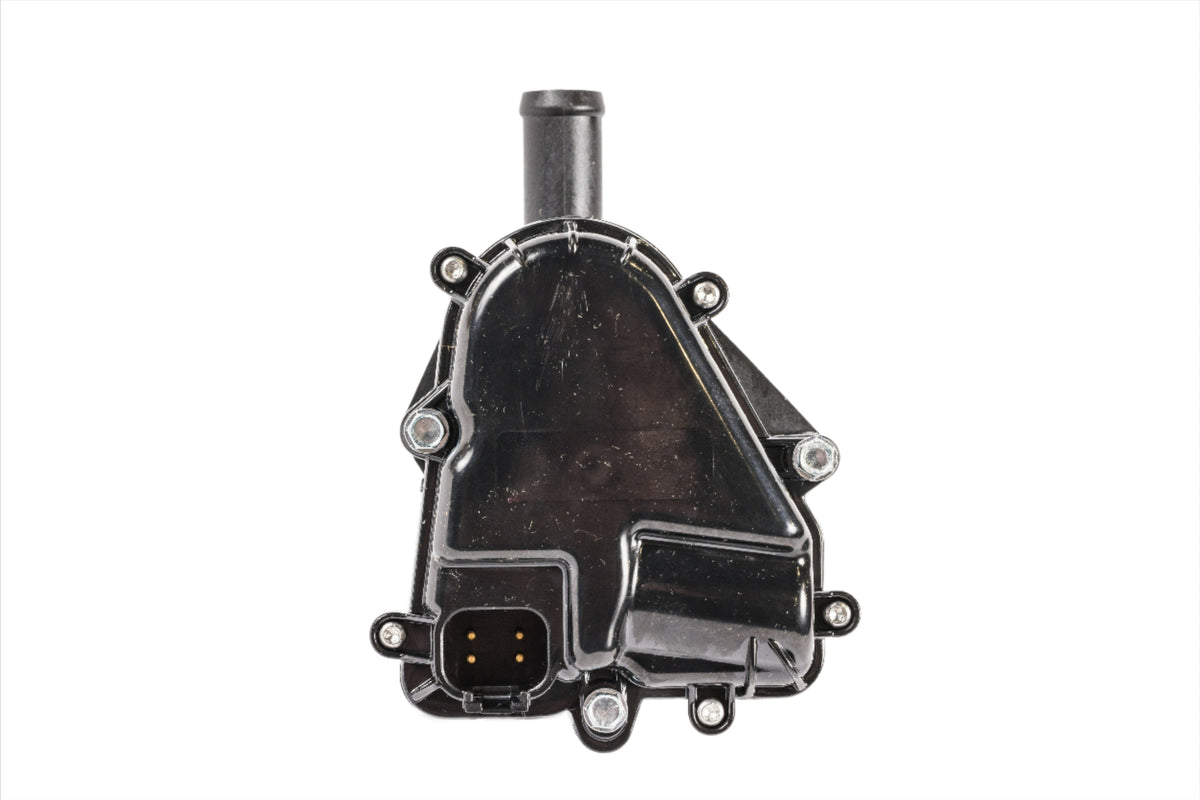

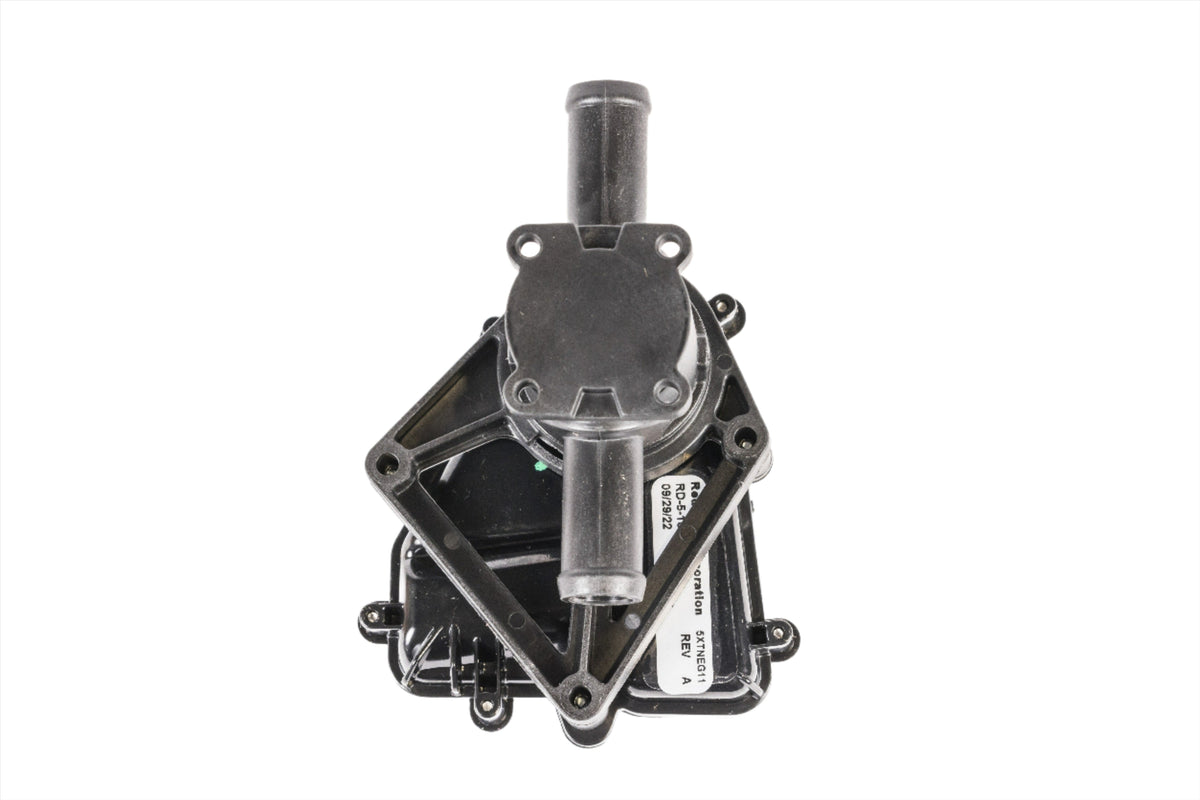

This electric water valve is for use with 71R5827 controller and also pairs with R-6521 series Units. Works with both 12 vdc electrical systems and 24 vdc electrical systems. The actuator body is environmentally sealed making this valve suitable for exterior mounting.
- Part Number: 72R7135
- Operating Voltage: 12 vdc & 24 vdc PWM
- Inlet Connection: 5/8"
- Outlet Connection: 5/8"
- Actuator connector: Integral 4 pin Deutsch DT weather resistant
- Mounting bracket: Included
- Special attribute: 71R5827 Controller R-6521 Series Units
- Special attribute: This is a Bi-Directional valve. Inlet and outlet flow is not specific.
Interchange Numbers:
- 1911517413
- RD-1-4604-0P
