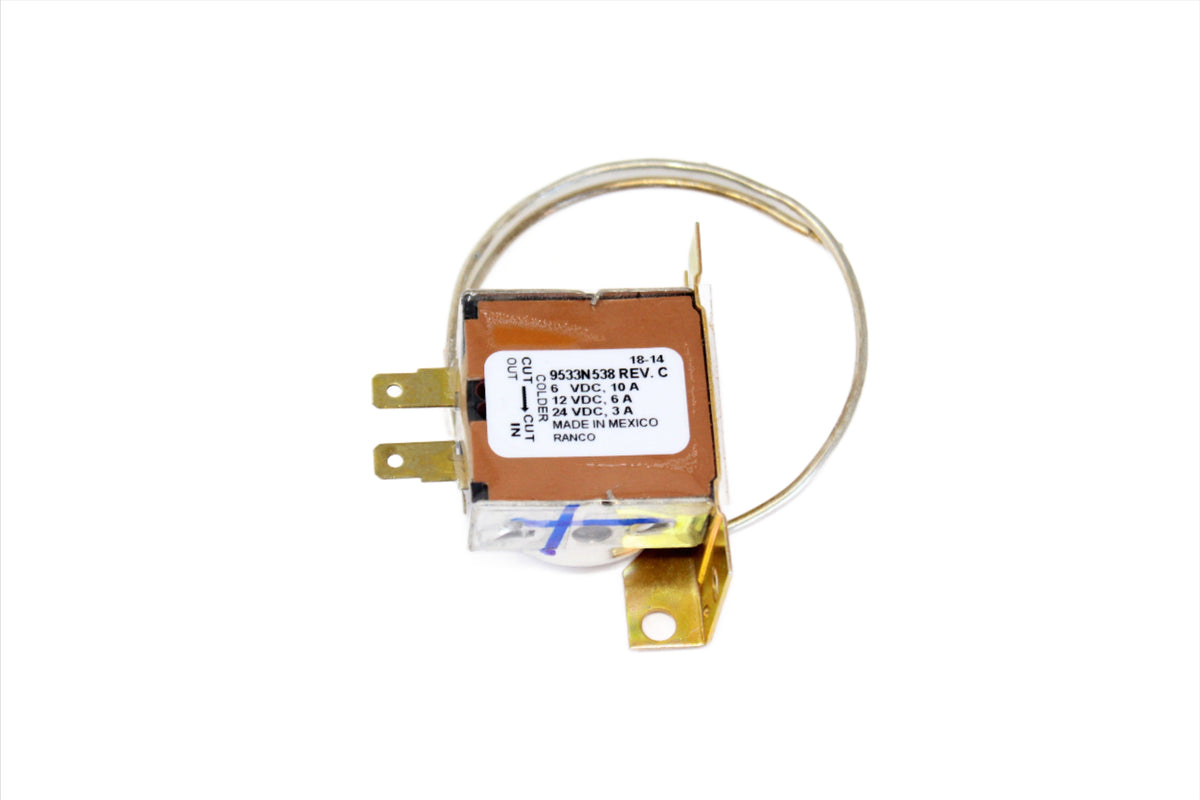

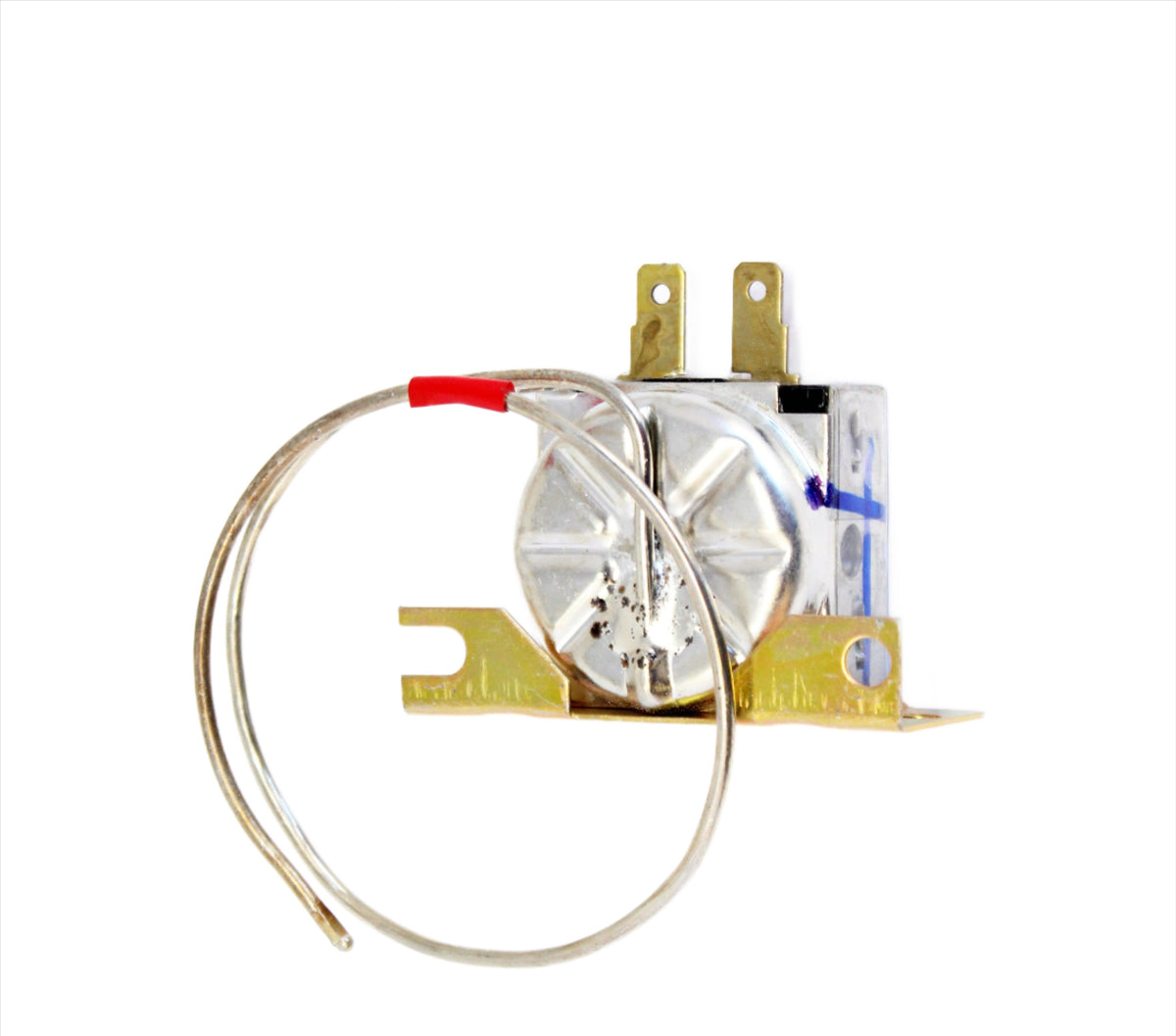

Thermostat Fixed for Thermo King Tripac 416844 71R3160

SKU: 71R3160
In stock
In Stock with our Shopify Collective Partner
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
$42.04

Ask An Expert

Email 573-993-3849

The Thermostat senses the temperature of the evaporator coil via the capillary tube. When the temperature gets to the low set point of the thermostat, the thermostat switch opens and stops the compressor pumping. This prevents the evaporator freezing. When the evaporator warms up to the upper set point of the thermostat, the switch closes and the compressor begins pumping again.

  • Part Number: 71R3160
  • Manufacturer: Ranco
  • Type: Fixed
  • Capillary: 12"
  • Temperature Range: 31F - 40F

Interchange Numbers:

  • 00063511
  • 11-1050
  • 1342
  • 232-8428
  • 2399009
  • 3949311
  • 404143
  • 41-6844 Tripac
  • 4379-RD589380
  • 4379-RD589380P
  • 650163
  • 650163BSM
  • 850-9175
  • 932-1104
  • 9533N538
  • ABP N83 323030
  • ABP N83 323050
  • BD13550
  • RD-5-8938-0P
  • RDHRD589380P
  • RDT71R3160
  • Type Controls
  • Vendor VMACSINC
  • SKU 71R3160
