Aftermarket Toyota Tundra (2016-2017) OEM Replacement Backup Camera OE Part # 86790-0C021

SKU: MC-TTU16OE
In stock
In Stock with our Shopify Collective Partner
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Regular price $185.99
Regular price $290.99 Sale price $185.99

Ask An Expert

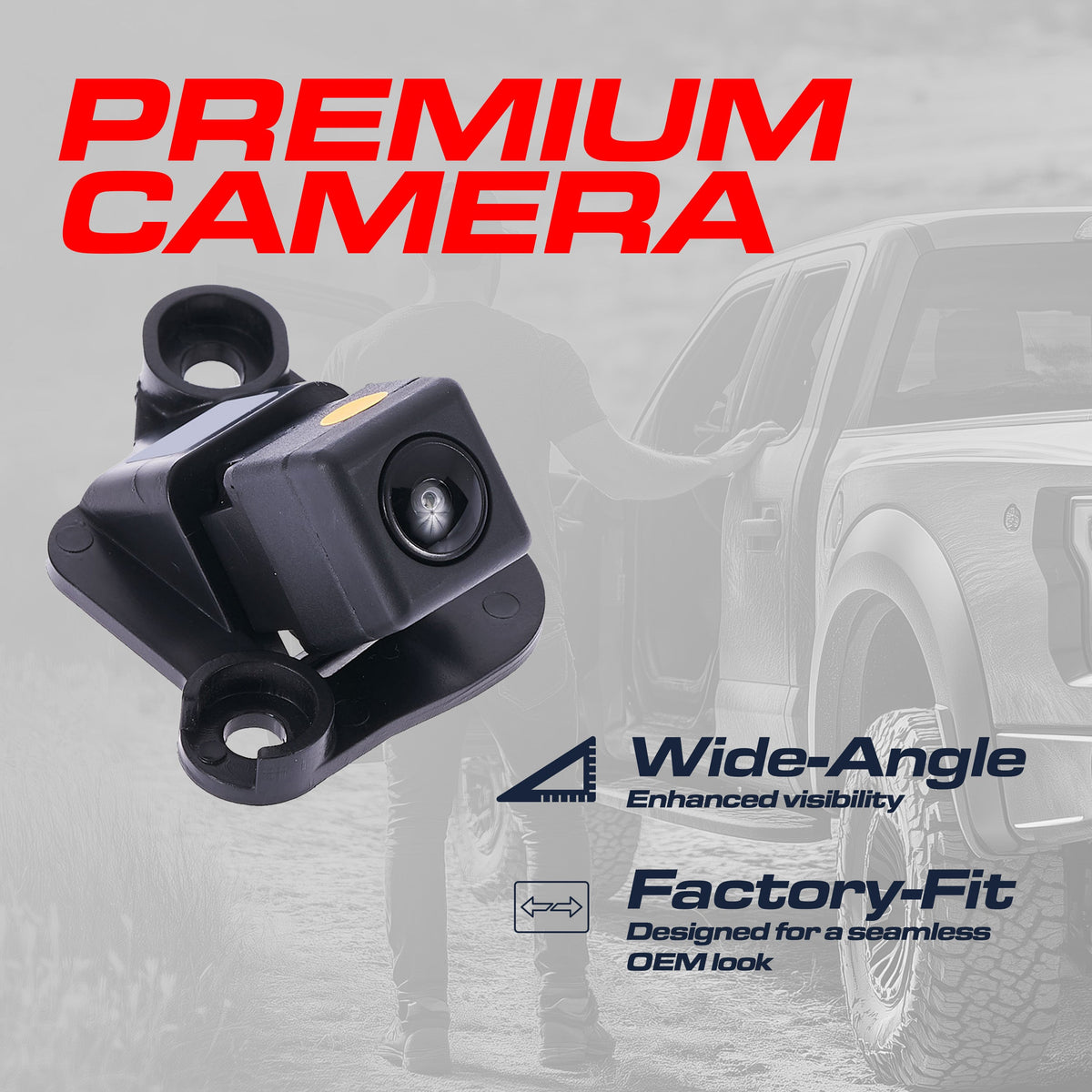

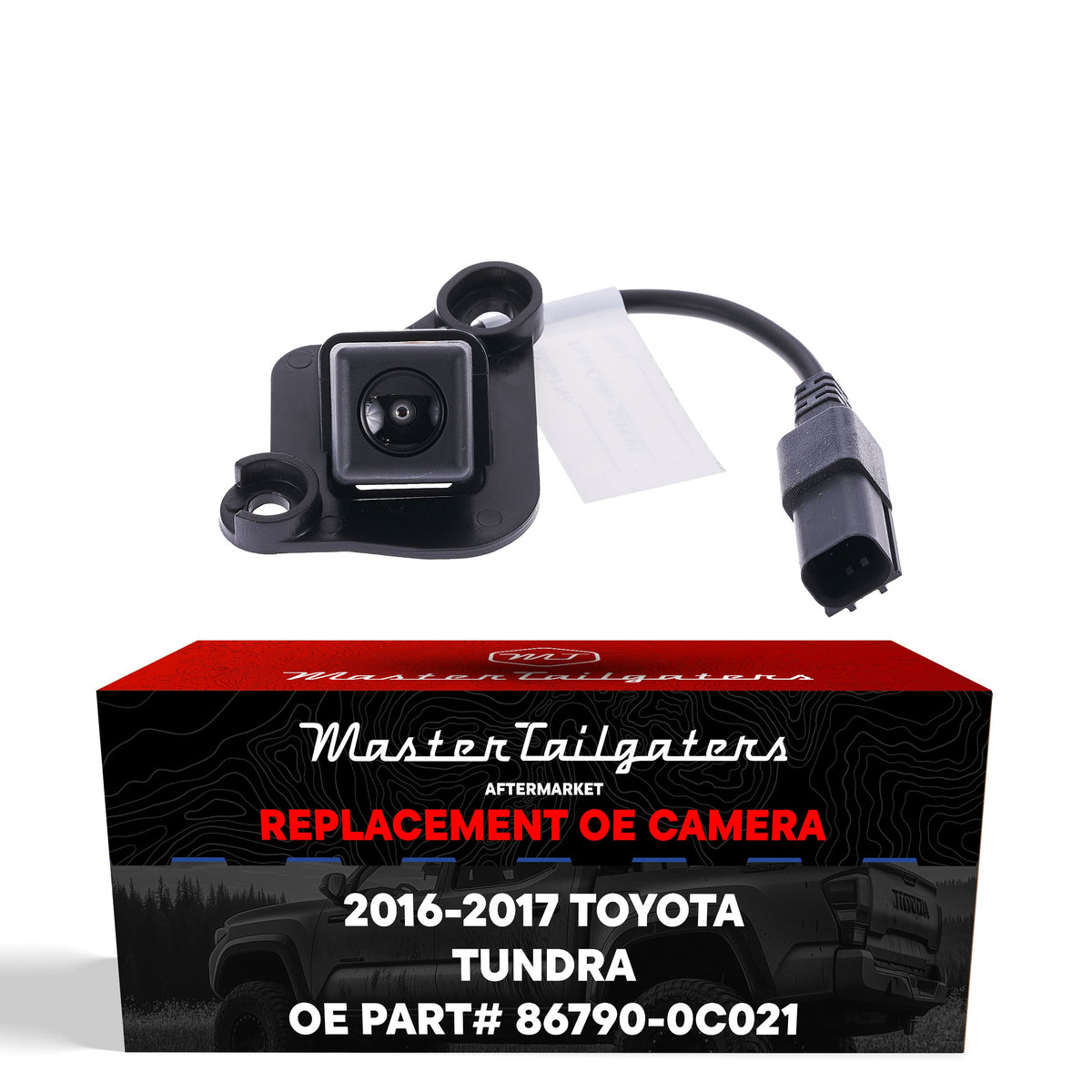

Aftermarket Toyota Tundra (2016-2017) Backup Camera
(Full Color Camera)



Replaces Model Number: 86790-0C021 (867900C021)

For use with:

  • Toyota Tundra (2016-2017)

This is an aftermarket backup camera, not OEM. This camera will plug into your existing wire harness. If your vehicle currently does NOT have a backup camera system, this camera will not work. Double Check your part number prior to ordering.

Camera Specs:

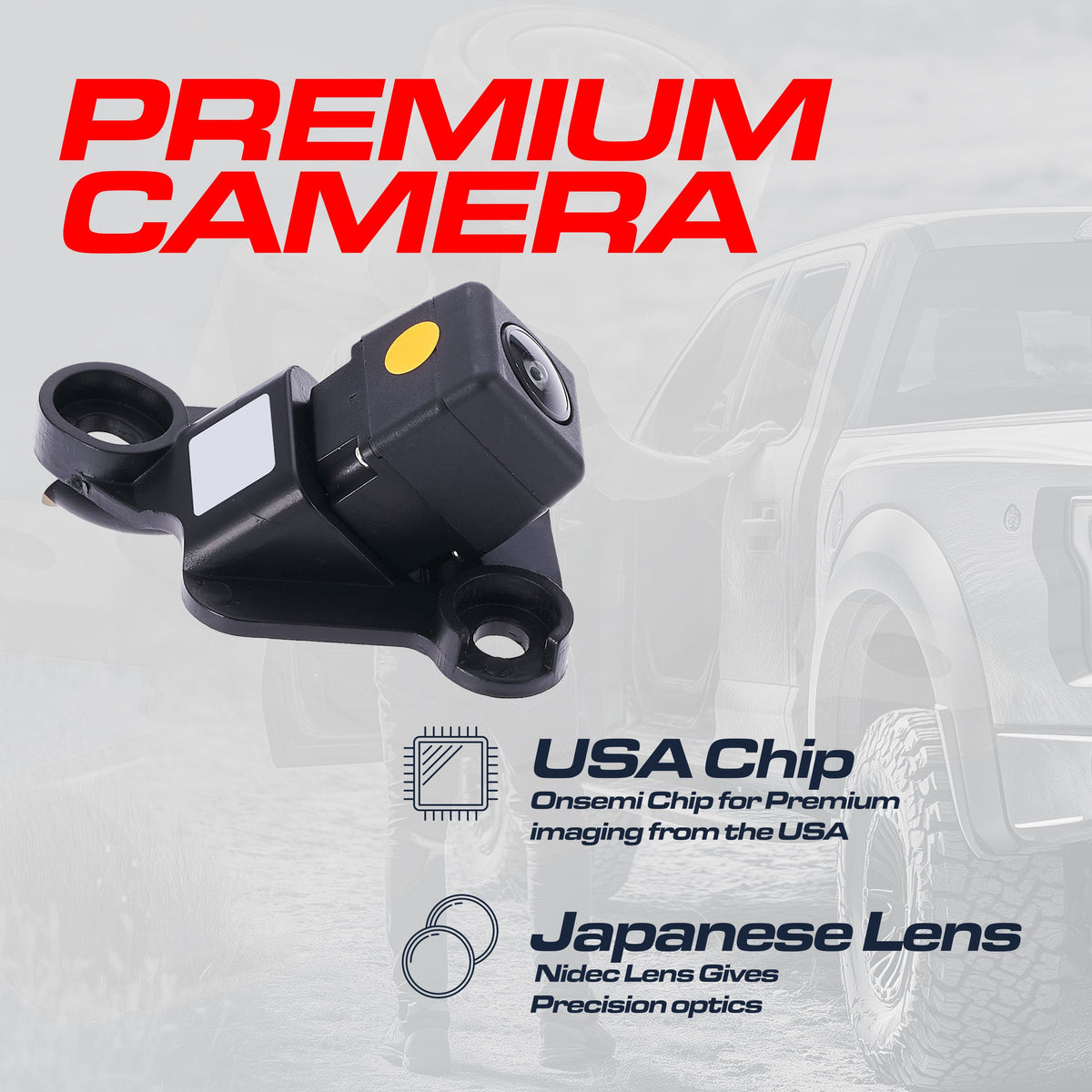

  • Sensor: ¼” On-Semi (USA) CMOS Active Pixel Array, Lens: Nidec (Japan) (Glass + Plastic)
  • Minimum Illumination : .1 Lux light sensitivity
  • Signal System : NTSC/PAL
  • Effective Pixel : 728 x 582
  • Electronic Shutter : 1/50 to 1/100,000 seconds
  • Resolution : 600 TV lines
  • Angle : 170 Degrees
  • Waterproof Rate : IP68
  • Power : DC 6v-12v
  • Video Cable: 5.75 inches

**ATTENTION: Before purchasing, make sure to verify that your part number is an EXACT MATCH to this part number*

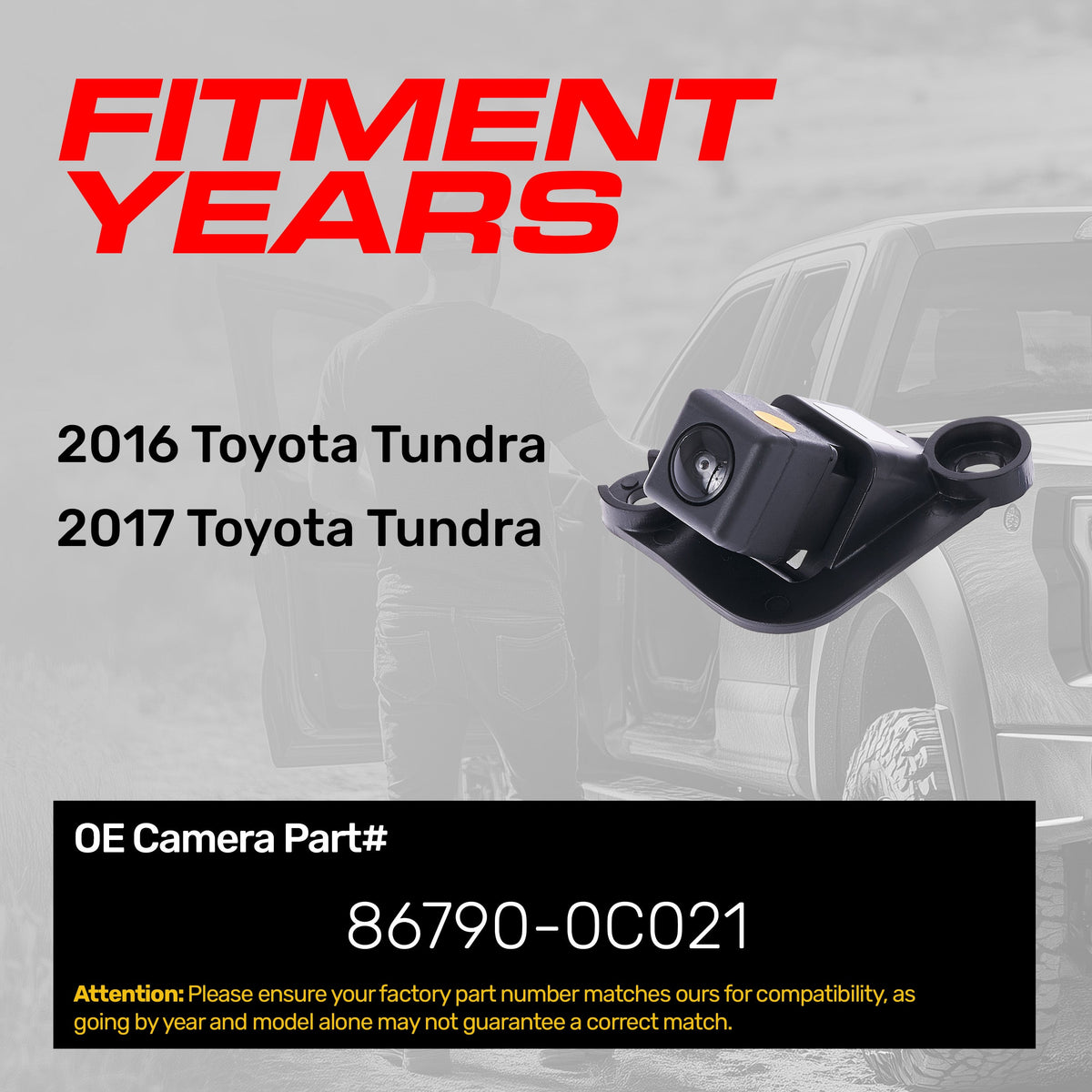

[For use with]: Toyota Tundra (2016 2017) OE Part # 86790-0C021 (867900C021)
[Camera]: Wide angles up to 168°(Diagonal) + 100°(Vertical) + 136°(Horizontal); Designed for low light to .1lux
[Specs] Up to 800TVL; Waterproof to IP69K; Safe working temp from -104F to 220F. Japanese Nidec Lens, OnSemi USA Chip

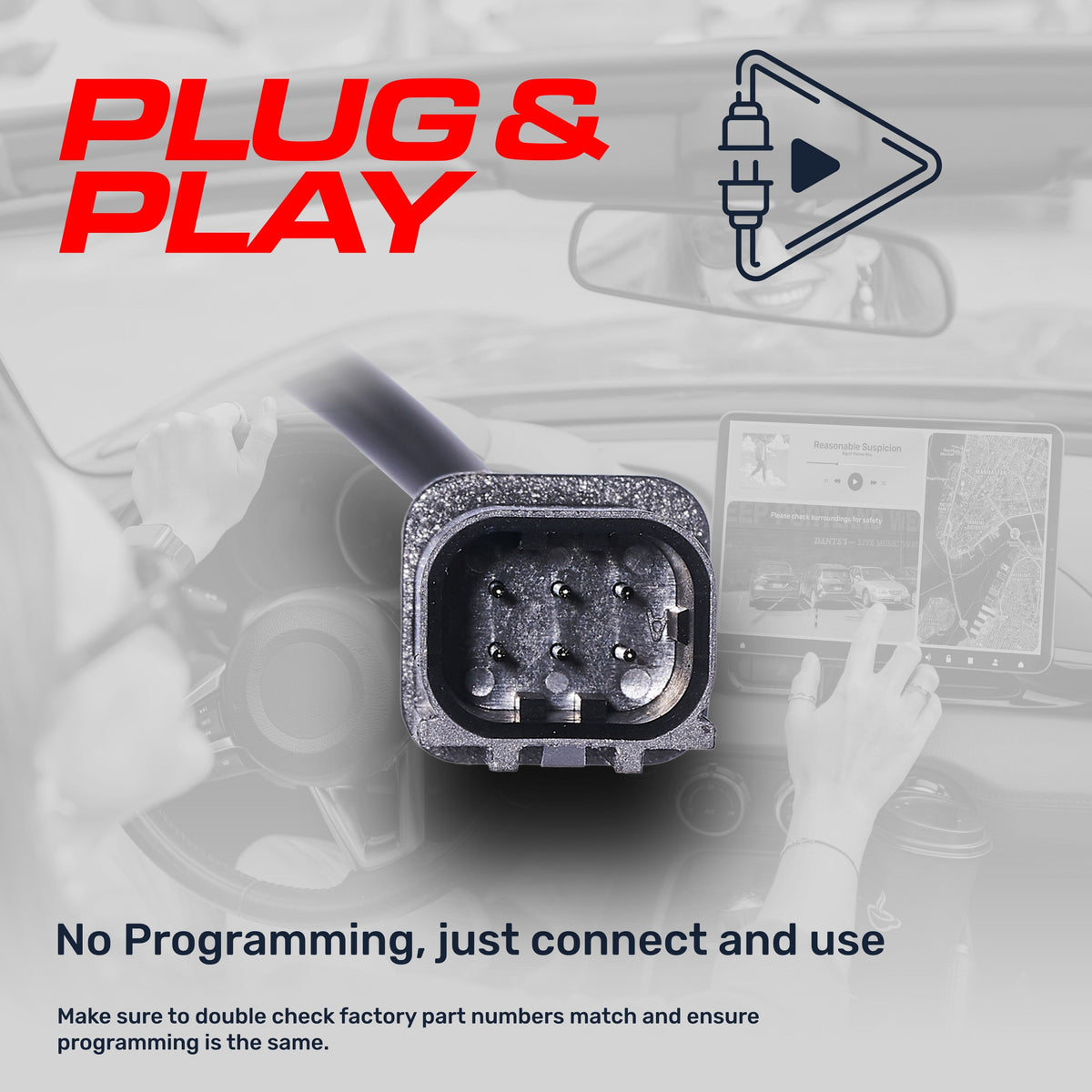

[Plug and Play]: Plugs into Existing OEM Video Harness, no programming required

  • Type OE Cameras
  • Vendor Master Tailgaters
  • SKU MC-TTU16OE

This is a Shopify Collective Product. Returns, refunds, restocking fees, and exchanges are set by the Collective Partner and are subject to change at any time. If you would like more information, please reach out to our team.
