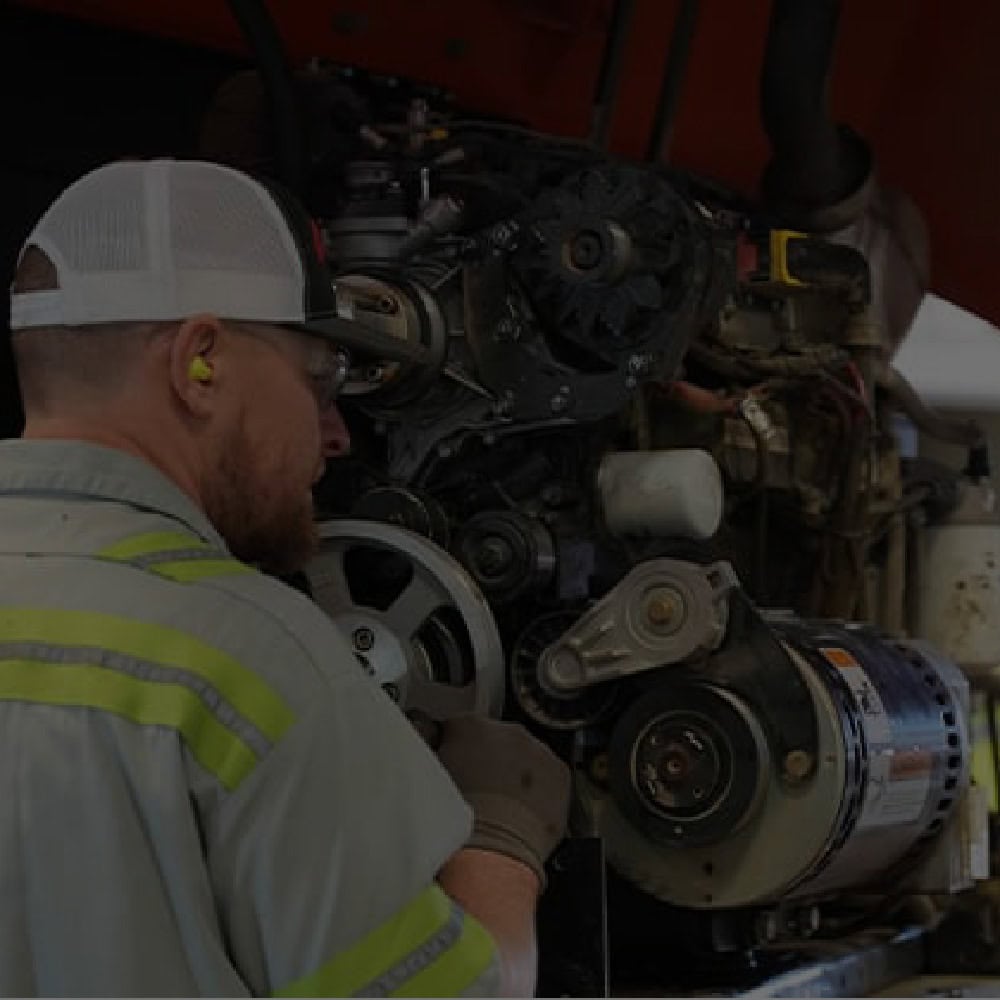

HEAVY EQUIPMENT ALTERNATORS: SYMPTOMS OF A BAD ALTERNATOR AND HOW TO MAKE REPAIR VS REPLACEMENT DECISIONS

Reading time: 11 min

Home > Machine Maintenance

When equipment starts acting unstable under load, the charging system may be at fault. Alternator problems in construction equipment show up as flickering lights, weak charging, controller resets and aborted regenerations. In this guide, we’ll focus on identifying the exact fault in the alternator assembly, explaining component roles and typical failures, and using voltage, ripple and drop tests to confirm the diagnosis. We’ll also compare repair and replacement options with realistic costs and note how a bad charging system affects the rest of the machine across different equipment types.

This guide focuses on alternators used across construction equipment—12 V and 24 V systems on compact machines, telehandlers, wheel loaders, excavators and towable support gear. Always de-energize before service: disconnect the negative cable, remove keys and mind stored energy in the belt drive and the B+ terminal. Charging circuits can deliver very high current. Use insulated tools, eye protection and avoid loose clothing near rotating decoupler pulleys.

Signs and Symptoms of a Failing Alternator

In the cab, the earliest signs of alternator trouble are electrical. If the battery of charge light comes on at idle but turns off with a bit of throttle, it could point to weak output or a slipping belt. A flickering lamp suggests alternating‑current ripple leaking past the rectifier diodes. Measured system voltage that settles below about 13.5 V on a warm 12 V system (or below roughly 27.5 V on 24 V equipment) points to undercharge, while sustained values above ~15.0 V (or ~29 V) indicate a regulator fault or sense‑lead error. Engine controllers on J1939 networks typically also log low or high system voltage codes. Treat those as electrical‑system problems to be diagnosed, not automatic alternator condemnation.

Electrical instability shows up under load first. Lights dim or visibly flicker as fans cycle (LED work lights are especially sensitive to ripple). Electrohydraulic controls may chatter, HVAC blowers slow, displays or telematics modules reboot, and CAN (Controller Area Network) traffic drops as bus voltage sags. Aftertreatment is vulnerable as well. DEF pumps can fail to prime and dosing heaters will drop out. This can stop the machine from completing a regeneration cycle, which it needs to clean the exhaust system. If this continues, the machine may enter a derated mode, limiting performance to protect the engine.

You can often narrow down the cause of an alternator issue by paying attention to sounds, heat, and physical signs. For example, a high-pitched whine or howl that gets louder with engine speed usually points to worn alternator bearings. A squealing belt during acceleration might mean the belt is slipping due to misalignment, dirt, or wear. If you hear a sharp chirp when slowing down, it could be a sign that the overrunning or decoupling pulley is starting to fail.

If the alternator feels unusually hot, smells like burning electronics, or the B+ terminal insulators (the main positive cable connection) look discolored, it may be overloaded or not getting enough airflow. At the battery end, repeated dead batteries, sluggish cranking, or a hot ground strap indicate chronic undercharge or key-off leakage through a leaky rectifier diode. Always start by checking the battery’s state of charge and conductance. A weak battery can mimic alternator problems and lead to the wrong diagnosis if you’re not careful.

Alternator Components: What They Do and How They're Likely to Fail

Brushes and slip rings:

• In many alternators, carbon brushes are used to deliver electrical current to the rotor, which creates the magnetic field needed to generate power. These brushes rely on spring force and a smooth ring finish to carry the field current. Dust, coolant or wash‑down water can accelerate glazing and pitting. Brushes worn to the limit produce inconsistent power and warning lights may flicker. Some heavy-duty alternators are brushless, meaning they avoid slip-ring wear altogether. However, in these designs, the electrical stress shifts to the control electronics, which still must be protected from dirt and moisture. Even without brushes, contamination inside the alternator can still cause charging problems, especially after extended operation or heat soak.

Rotor and field circuit:

• The rotor’s wound field creates a rotating magnetic field proportional to field current. In brushed designs, current flows through slip rings. Brushless designs move excitation to a separate stage. An open or shorted field winding, worn slip rings or poor brush contact yields low or no output that sometimes resurges with RPM. Measuring field resistance and observing field current during a loaded test quickly separates a weak rotor from downstream faults. If the field is working hard (a “pegged” duty cycle) but there’s still weak output, the problem likely lies further downstream in the stator or rectifier.

Stator windings:

• The stator’s three‑phase windings produce AC power as the rotor turns. These windings are essential for generating the power that charges the battery and runs the machine’s electrical system. Turn‑to‑turn shorts, where one coil shorts against another, lower capacity and create local hot spots. An open phase can produce severe ripples which can affect sensitive electronics. On a scope, a healthy stator shows evenly spaced peaks with consistent amplitude. Missing peaks or asymmetry indicates a shorted or open phase. Under a controlled load, a compromised stator will fail to reach nameplate current, even with high field duty.

Rectifier/diode pack:

• The rectifier converts three‑phase AC to DC and protects against load dumps. A single open diode raises ripple under load and causes visible flicker; a leaky diode creates a key‑off parasitic draw and a slightly warm alternator case.

Voltage regulator (internal, external, or ECU‑controlled):

• The regulator varies field current to hold a temperature‑compensated setpoint. If the regulator fails, you might see chronic undercharging, overcharging, warning light problems, or fluctuating output. Some modern machines use smart regulators, which communicate with the engine’s control unit (ECU) through a single wire or over a CAN network. A corroded sense lead or broken communication line can force limp‑home setpoints that look like hardware failure. Before replacing any parts, it’s important to check the regulator’s voltage setpoint, inspect the sense wire for clean, tight connections, and confirm that the control signals are getting through properly.

Pulley types and decouplers:

• Alternators can be driven by different types of pulleys, and each has a specific function. Solid pulleys transmit all engine torsionals to the belt; overrunning alternator pulleys (OAP) freewheel when the engine slows down, and overrunning alternator decouplers (OAD) also isolate torsional spikes to calm belt resonance. If one of these pulleys seizes or locks up, it can cause the belt to whip or the tensioner to flutter, leading to noise, wear, or unstable voltage at idle. A failed pulley often produces a noticeable chirping sound when the engine decelerates. These pulleys are application‑specific—do not interchange types casually.

Bearings, housing, and cooling:

• Front and rear bearings carry significant radial load and rely on clean airflow for heat rejection. Dry or contaminated bearings howl, add drag and steal current that should go to the bus. Packed mud or oily debris blocks internal fans and external vents, raising case temperature, softening varnish and shortening diode life.

Sense and ground paths:

• For the voltage regulator to work properly, it must “see” true system voltage through a clean sense path and return through a low‑impedance ground. To check for issues, technicians should perform a voltage-drop test under load. Measure from the B+ stud to the battery positive and from alternator case to battery negative is essential. As a rule of thumb, expect no more than about 0.2 V on B+ and 0.1–0.2 V on ground for 12 V systems; 24 V systems tolerate proportionally higher numbers. Too much voltage drop can mimic alternator failure, leading to unnecessary parts replacement and wastes troubleshooting time.

Repairing vs Replacing an Alternator: Requirements, Costs, and Risks

A methodical rebuild is viable when the housings are sound and the windings test good. Bearings, brush sets and holders, slip rings, rectifier packs, and many regulators are serviceable with common tools: a press for bearings, proper heat‑sink technique for rectifier/regulator solder joints, and a test stand or on‑bench drive to verify full‑load output and temperature rise. Bench time typically falls between about one and two and a half hours depending on corrosion and design. Rebuilds conserve mounting geometry and clocking and minimize cost, but they will not survive if the underlying cause—blocked airflow, chronic belt slip, or a failing decoupler—remains.

Replacement is often the better option when the alternator shows signs of serious internal or structural damage. Here are a few things to look for:

Burnt or shorted stator windings:

• These usually leave visible discoloration, a burnt smell, or damaged insulation inside the alternator housing. A bench test can confirm low output or high current draw consistent with a short.

Cracked or warped housings:

• Physical damage to the alternator casing, especially around mounting points or cooling fins often makes rebuilds risky or impossible.

Melted B+ insulators:

• The B+ terminal is surrounded by insulating material. If it’s discolored, deformed, or shows signs of melting, it suggests the alternator has overheated or been overloaded.

Repeated thermal failures:

• If the alternator continues to overheat or shut down after rebuilds or repairs, replacing the entire unit may be more cost-effective and reliable.

Smart Regulator communication issues are another signal. If the internal control IC (integrated circuit) is faulty, and you can’t buy it separately or it fails again after a repair, replacing the entire unit may be more cost-effective and reliable. Access also plays a role. If the alternator is buried under shrouds, behind manifolds, or under cab structures, the labor to remove it is already a major investment. In these cases, replacing it with a new or remanufactured unit that includes a warranty can save time and money by avoiding repeat failures or callbacks.

Cost ranges in heavy‑equipment contexts are generally predictable. Rebuild kits that combine bearings, brushes, rectifiers, and regulators commonly land between about $75 and $250 depending on output class and regulator sophistication. Bench labor totals $120 to $350 at typical shop rates. New or reman 12 V alternators in the 120–200 A range often price between $250 and $650. 24 V units in the 70–180 A class tend to fall between $400 and $1,100. Removal and replacement times vary from under an hour to three hours or more based on access, plus mobile service surcharges when a field call is required. Remember the downtime math: fleets that depend on reliable lighting, fan drives or dosing heaters at night commonly justify proactive replacement to avoid aborted regenerations and derates.

After installation, it’s important to confirm its charging correctly and the system is stable under real world conditions. To do so you can verify the regulator setpoint by starting the engine and letting it warm up to normal operating temperature. Use a multimeter to measure voltage at the battery terminals while the machine is idling. The reading should be roughly 13.8–14.5 V for 12 V systems and around 27.5–28.5 V for 24 V systems. Recheck after a heat soak. Confirm the sense and ground drops are within limits under a realistic accessory load. Clear stored codes, monitor idle‑up or load‑shedding behavior, and schedule a retest after the first shift to catch early loosening or belt settling.

How Alternator Faults Can Affect Your Overall Machine

Undervoltage affects the machine’s electronics before anything else. Sensor biases drift, ECUs reset and bus communications degrade, generating ghost faults and inflating troubleshooting time. Aftertreatment systems are power‑hungry and voltage‑sensitive. Dosing heaters and DEF pumps shed early, active regenerations fail, soot accumulates and derate logic is triggered for reasons that look (and are) electrical, not mechanical.

Electrohydraulic systems suffer too. Proportional valves respond sluggishly or chatter, fan clutches slip, coolant temperatures rise and work speeds drop. Persistent undercharge shortens battery life through sulfation, drives longer cranks that overheat starters and overheats ground straps and contacts during repeated high‑current events. The charging system is a machine‑wide reliability lever, not just a lamp on the dash.

How a Bad Alternator Affects Specific Types of Equipment

Telehandlers and aerial lifts spend long periods at idle with significant lighting and control loads, so ripple and undercharge appear early as platform controller resets, tilt/overload sensor faults, and beacon or work‑light flicker. Excavators and wheel loaders, often running 24 V architectures with multiple controllers and electric fan clutches, demand clean power. A failed decoupler pulley can masquerade as electronic instability when the underlying problem is belt dynamics.

Compact utility machines—UTVs, small loaders, trenchers—pack alternators into tight, hot compartments exposed to water and mud. Brush wear and regulator heat soak rise accordingly, and many failures come after machine washdowns.

Towable support equipment such as compressors and light towers commonly idle for hours near maximum electrical load. Rectifiers run hot, and AC ripple shows up first as flicker or ballast dropout. Fleets with idle‑stop or smart‑charge strategies must preserve communication between ECU and regulator. Replacing a smart unit with a fixed‑voltage regulator can quietly break charge management and invite repeat faults.

Preventive Practices for Heavy Equipment Alternators

To keep your charging system healthy and avoid costly surprises, it’s important to build alternator checks into your regular maintenance schedule. Every 250–500 hours, you should:

Record running voltage:

• Use a multimeter at the battery terminals while the engine is running. Confirm that the voltage is within spec—around 13.8–14.5V for 12V systems, or 27.5–28.5V for 24V systems.

Check voltage drops:

• Perform voltage-drop tests from the B+ terminal on the alternator to the battery’s positive post, and from the alternator case to battery negative. These checks help identify resistance or connection issues that could mimic alternator failure.

Measure ripple voltage:

• While the engine is under a normal load (lights, fans, etc.), use a scope or meter that can read ripple at the B+ stud. Excess ripple usually points to diode or stator problems.

Repeat tests after a heat soak:

• Let the engine and alternator heat up, then run the same tests again. Some issues—especially with regulators or bearings—only show up once components are hot.

Keep airflow clear:

• Make sure internal and external vents aren’t clogged with dust or debris. Keep shrouds and protective covers intact, and avoid pressure-washing a hot alternator, as the sudden temperature change can cause damage.

Inspect the belt system:

• Check belt condition, alignment, and tensioner travel. Test the alternator pulley—especially if it’s an OAP (Overrunning Alternator Pulley) or OAD (Overrunning Alternator Decoupler)—to ensure it spins freely in one direction and isolates vibrations as intended. Replacing a worn pulley can smooth idle voltage and extend component life.

Protect the sense and ground leads:

• These wires give the voltage regulator its reference point. Even a small voltage error—just a few tenths of a volt—can cause the regulator to over- or undercharge the entire system, leading to battery damage and false fault codes across the fleet.

The bottom line: Treat the alternator as part of a system—battery, cables, grounds, belt/decoupler, regulator control and load profile. Diagnose with numbers, not hunches, and repair when the core is sound and root causes are fixed. Replace when heat, corrosion or electronics make reliability a gamble—and always verify the fix with load, ripple and drop tests.
