JLG 4069LE Electric Scissor Lift Parts
SEARCH JLG 4069LE Electric Scissor Lift Parts
RESULT
-
Original price $18.16 - Original price $18.16Original price$18.16$18.16 - $18.16Current price $18.16| /
MEC Input Socket 41575
MECIn stockDescriptionThe MEC Decal 41575 is a must have label for your machine. Providing insights into the dangers of your machine is crucial to avoid any a...
View full detailsOriginal price $18.16 - Original price $18.16Original price$18.16$18.16 - $18.16Current price $18.16| / -
Original price $113.41 - Original price $113.41Original price$113.41$113.41 - $113.41Current price $113.41| /
Tiresocks Dripdiaper 96120DD
TireSocksLow stockManufacturer: Tiresocks Part Name: Dripdiaper Part Number/MPN: 96120DD
Original price $113.41 - Original price $113.41Original price$113.41$113.41 - $113.41Current price $113.41| / -
Original price $0.54 - Original price $0.54Original price$0.54$0.54 - $0.54Current price $0.54| /
JLG Lanyard Attach Decal 1704277
JLGOut of stockDescriptionThe JLG Decal 1704277 is a must have label for your machine. Providing insights into the dangers of your machine is crucial to avoid any...
View full detailsOriginal price $0.54 - Original price $0.54Original price$0.54$0.54 - $0.54Current price $0.54| /Sold out

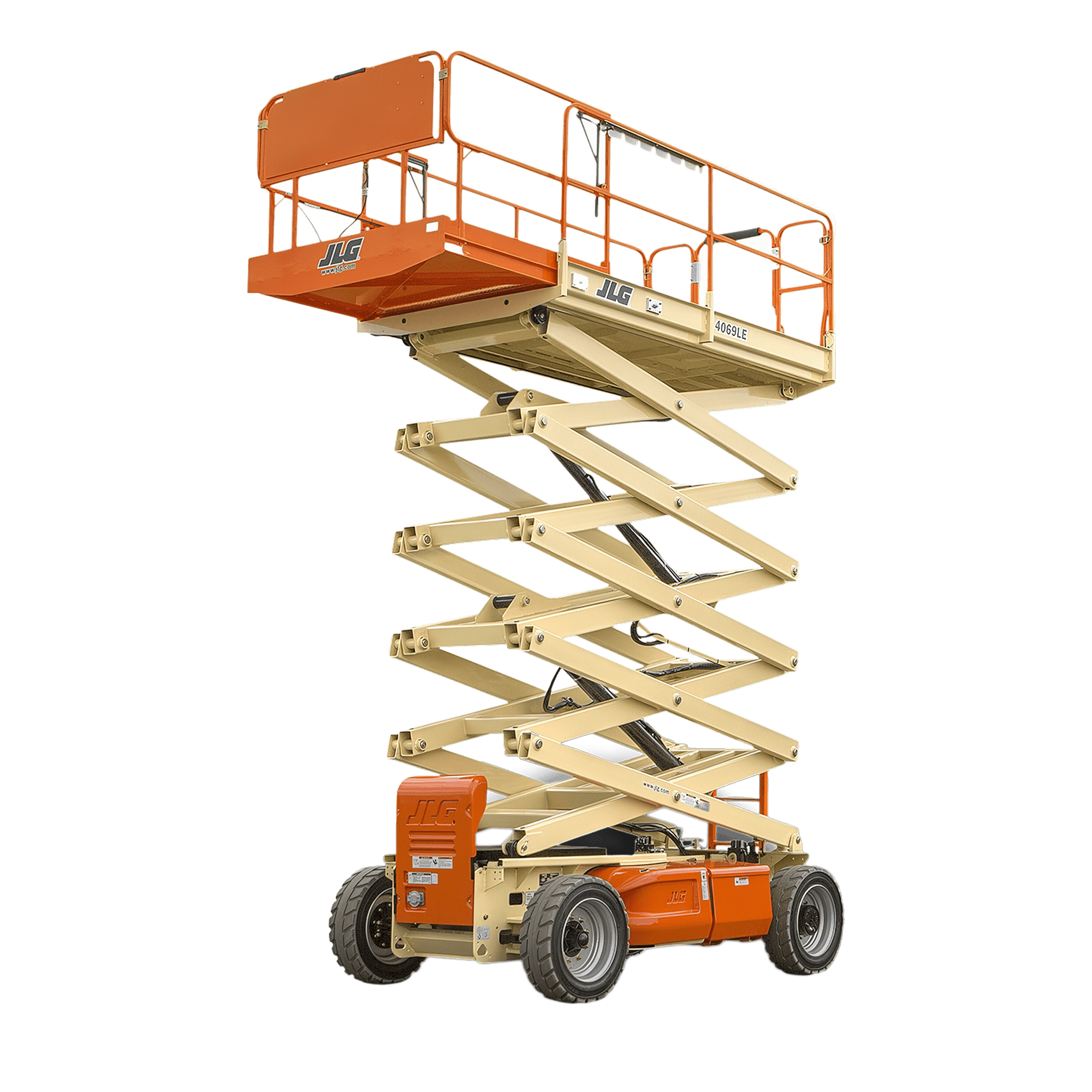

Keeping your JLG 4069LE in peak operating condition starts with the right parts and a solid maintenance routine. Ensure your electric scissor lift stays in top shape with high-quality input sockets and DripDiapers. The JLG 4069LE offers impressive platform capacity and all-terrain performance with quiet electric power. Don’t forget to stay on top of your maintenance—secure the parts you need to keep your JLG 4069LE running smoothly! Keep reading for a comprehensive maintenance guide for your machine.
Walk-Around Inspection
Before operation, perform a thorough walk-around inspection. Shut off machine power during the inspection and check these key components:
- Platform control console and decals
- Hydraulic lines and cylinders for leaks or wear
- Wheels, tires, and lug nuts
- Brake and steering linkages
- Battery compartment and disconnect switch
- Sliding wear pads and scissor arms
- Ground controls, manual descent, and emergency stop switches
Daily Maintenance
- Check battery charge and electrolyte levels
- Inspect hydraulic fluid and check for leaks
- Clean platform and remove any debris
- Test all function switches and the footswitch interlock
- Verify platform extension movement and emergency lowering
Every 50 Hours or Monthly
- Lubricate all 8 sliding wear pads with multipurpose grease
- Inspect hydraulic oil level and top off if needed
Every 150 Hours or 3 Months
- Check and clean engine air filter
- Inspect and clean fuel filter
- Inspect battery condition and terminal connections
Every 300 Hours or 6 Months
- Replace fuel filter
- Replace air filter element
- Torque wheel lug nuts
Every 1,200 Hours or 2 Years
- Replace hydraulic oil
- Service drive hub oil
- Lubricate wheel bearings and pivot joints
Battery Charging Procedure
- Connect to 115V or 220V outlet with 15A minimum capacity
- Charge fully until the 100% LED is lit
- Charge time: up to 23 hours for fully discharged batteries
Final Maintenance Recommendations
Regular maintenance keeps your JLG 4069LE operating reliably. For a full range of JLG parts, explore our extensive EquipmentShare parts catalog. If you can't find the part you need, reach out to our parts experts for a custom order.
