Searching for parts to keep your Takeuchi TL12 performing at its peak? Ensure your compact track loader stays in top condition with high-quality pins, hydraulic filters, bucket teeth, and more. The TL12 is powered by a 92-horsepower Kubota engine and features a hydraulic system with a flow rate of 23.2 gallons per minute, delivering powerful and precise operation for even the most demanding tasks. With its durable construction and advanced controls, the TL12 is built to handle tough jobs with ease. Don’t forget to stay on top of your maintenance—secure the parts you need to keep your TL12 running smoothly! Keep reading to see our comprehensive maintenance guide for your machine.
Walk-Around Inspection
Walking up to your machine first thing is a great time to perform a walk-around inspection.
- Open the engine hood and covers to check for combustible materials around the engine and battery and liquid leakage around the engine and hydraulic devices.
- Inspect the exterior of the machine for any damaged components. A few components to keep an eye out for are the lights, attachments, hoses, bucket, bucket teeth, hook, slip stopper, hook mount, handrail, crawler, shoe slide, track roller, idler, canopy, and cab.
- While sitting in the operator's seat, make sure to check the windshield, seat, seat belt, monitor, instruments and switches for damage and address any damaged, dirty or worn parts before operating the machine.
Daily Inspection
Manufacturers recommend a 10-hour inspection to check your machine daily, and a great time to do so is first thing in the morning.
- Make sure to check the coolant level in the reserve tank and refill if needed.
- Pull out the dipstick and check your oil levels as well, making sure to wipe down the dipstick with a clean rag before replacing it.
- Check the dust indicator by making sure the red piston is not sticking out of the dust indicator.
- Inspect the water separator to see if the red indicator ring is floating to indicate that it needs to be cleaned after the water is drained.
- Make sure to check if your fuel levels are low and add fuel to the fuel port while watching the sight gauge.
- Inspect the hydraulic oil level using the sight gauge and remember that the level will fluctuate depending on the temperature, but replenish if necessary.
- Lubricate grease nipples with a grease gun taking care to wipe off expelled grease.
50 Hour Maintenance
Every 50-hour interval requires specific maintenance to ensure reliability:
- Inspect and adjust the crawler tension.
- Lubricate the slew bearing.
- Lubricate the slew motor pinion.
- Drain the water from the fuel tank.
- Inspect and replenish the battery fluid level.
100 Hour Maintenance
To maintain optimal performance, perform the following task every 100 hours:
- Clean the water separator.
250 Hour Maintenance
Routine maintenance every 250 hours is critical for machine longevity:
- Inspect and adjust the fan belt.
- Replace the engine oil and oil filter.
- Clean the air cleaner.
- Inspect the throttle control system.
- Clean the radiator fins and oil cooler fins.
- Clean the air filters.
500 Hour Maintenance
Every 500 Hours:
- Replace the fuel filter.
1,000 Hour Maintenance
Comprehensive checks and replacements are necessary every 1,000 hours:
- Replace the hydraulic oil return filter.
- Replace the travel motor gear oil.
- Replace the air cleaner element.
- Replace the air breather.
- Inspect and adjust the engine valve clearance.
- Replace the pilot line filter.
2,000 Hour Maintenance
Every 2,000 hours:
- Lap the engine valve seats.
4,000 Hour Maintenance
Every 4,000 hours:
- Replace the hydraulic oil and clean the suction strainer.
For a larger selection of Takeuchi products, check out our extensive Takeuchi parts catalog. Still can't find the part you need? Reach out to one of our parts experts to place a custom order.
RESULT
-
Original price $78.95 - Original price $78.95Original price$78.95$78.95 - $78.95Current price $78.95| /
Takeuchi Hydraulic Filter 1551103900
TakeuchiIn stockDescriptionThe Takeuchi Hydraulic Filter 1551103900 is designed to protect your machine from dirt, dust, and other contaminants. It has a weight of...
View full detailsOriginal price $78.95 - Original price $78.95Original price$78.95$78.95 - $78.95Current price $78.95| / -
Original price $56.22 - Original price $56.22Original price$56.22$56.22 - $56.22Current price $56.22| /
Takeuchi Hydraulic Filter 1551101001
TakeuchiIn stockDescription The Takeuchi Hydraulic Filter 1551101001 is designed to protect your machine from dirt, dust, and other contaminants. It has a weight o...
View full detailsOriginal price $56.22 - Original price $56.22Original price$56.22$56.22 - $56.22Current price $56.22| / -
Original price $20.00Original price $20.00 - Original price $20.00Original price $20.00Current price $15.35$15.35 - $15.35Current price $15.35| /
Takeuchi Oil Filter KHH1C0-32430
TakeuchiIn stockDescriptionThe Takeuchi Oil Filter KHH1C0-32430 is designed for maximum performance and durability. It has a weight of 1.1 lbs. The filter’s robust...
View full detailsOriginal price $20.00Original price $20.00 - Original price $20.00Original price $20.00Current price $15.35$15.35 - $15.35Current price $15.35| /Save 23% Save % -
Original price $27.90 - Original price $27.90Original price$27.90$27.90 - $27.90Current price $27.90| /
Takeuchi Aftermarket Fuel Filter AFK1J301-43170
TakeuchiIn stockDescriptionThe Takeuchi Fuel Filter AFK1J301-43170 is essential for keeping your machine running at peak efficiency. Its weight is 1.4 lbs. The fil...
View full detailsOriginal price $27.90 - Original price $27.90Original price$27.90$27.90 - $27.90Current price $27.90| / -
Original price $1.00Original price $1.00 - Original price $1.00Original price $1.00Current price $0.74$0.74 - $0.74Current price $0.74| /
Takeuchi Grease Fitting 1560001000
TakeuchiIn stockDescriptionThe Takeuchi Grease Fitting 1560001000 is the perfect choice to efficiently lubricate your machine's bearings and keep it running smooth...
View full detailsOriginal price $1.00Original price $1.00 - Original price $1.00Original price $1.00Current price $0.74$0.74 - $0.74Current price $0.74| /Save 26% Save % -
Original price $22.27 - Original price $22.27Original price$22.27$22.27 - $22.27Current price $22.27| /
Takeuchi Filter 1911506052
TakeuchiIn stockDescriptionThe Takeuchi Filter 1911506052 is designed to keep your machine running smoothly and efficiently. It has a weight of 0.5 lbs. It offers ...
View full detailsOriginal price $22.27 - Original price $22.27Original price$22.27$22.27 - $22.27Current price $22.27| / -
Original price $3.37 - Original price $3.37Original price$3.37$3.37 - $3.37Current price $3.37| /

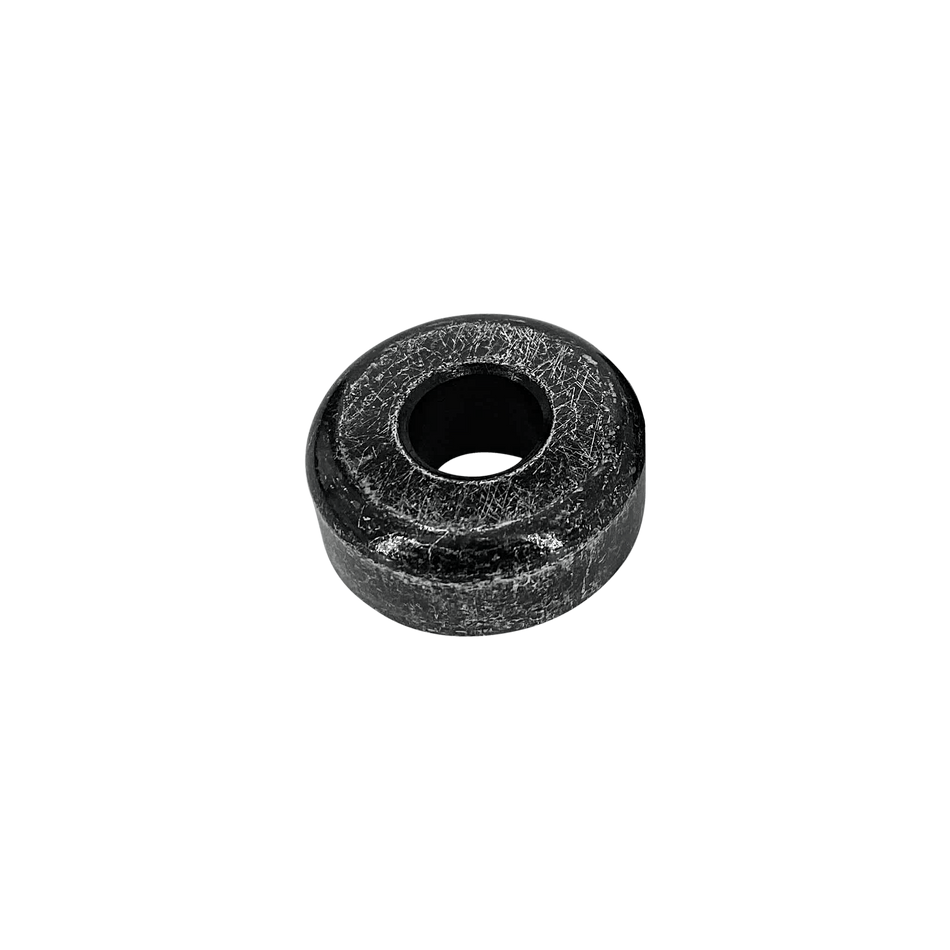

Takeuchi Door Roller 0880865305
TakeuchiIn stockDescriptionThe Takeuchi Door Roller [SKY] is a great choice for your machine. Its weight is 0.1 lbs. Made from quality materials, you can expect a ...
View full detailsOriginal price $3.37 - Original price $3.37Original price$3.37$3.37 - $3.37Current price $3.37| / -
Original price $82.94 - Original price $82.94Original price$82.94$82.94 - $82.94Current price $82.94| /

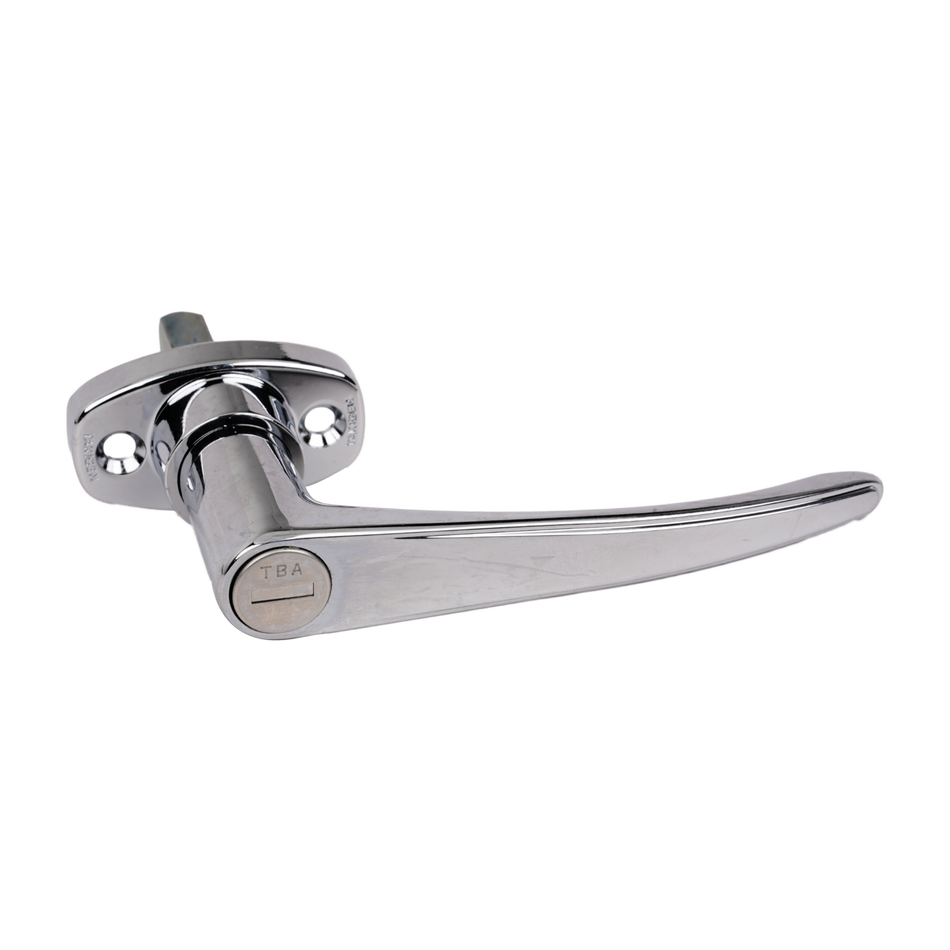

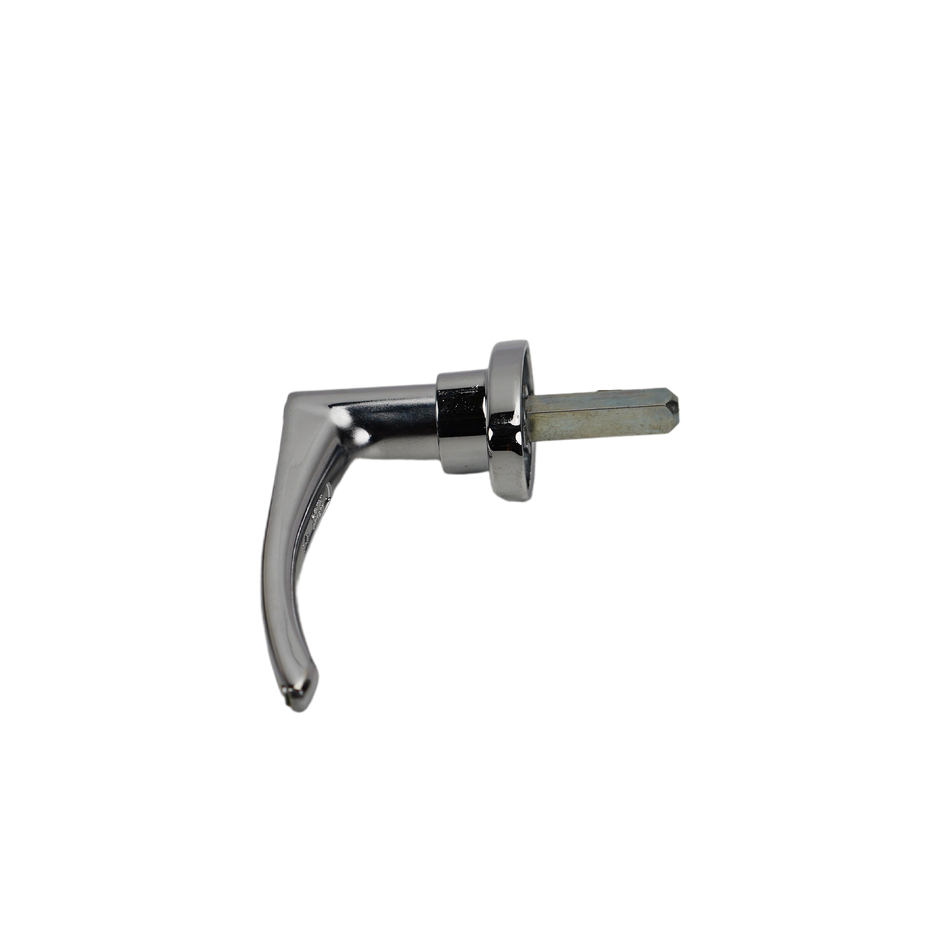

Takeuchi Handle (Lockable) 1654011520
TakeuchiIn stockDescriptionThe Takeuchi Handle 1654011520 is the perfect addition to your machine. It is made from durable materials allowing it to withstand the t...
View full detailsOriginal price $82.94 - Original price $82.94Original price$82.94$82.94 - $82.94Current price $82.94| / -
Original price $61.70 - Original price $61.70Original price$61.70$61.70 - $61.70Current price $61.70| /

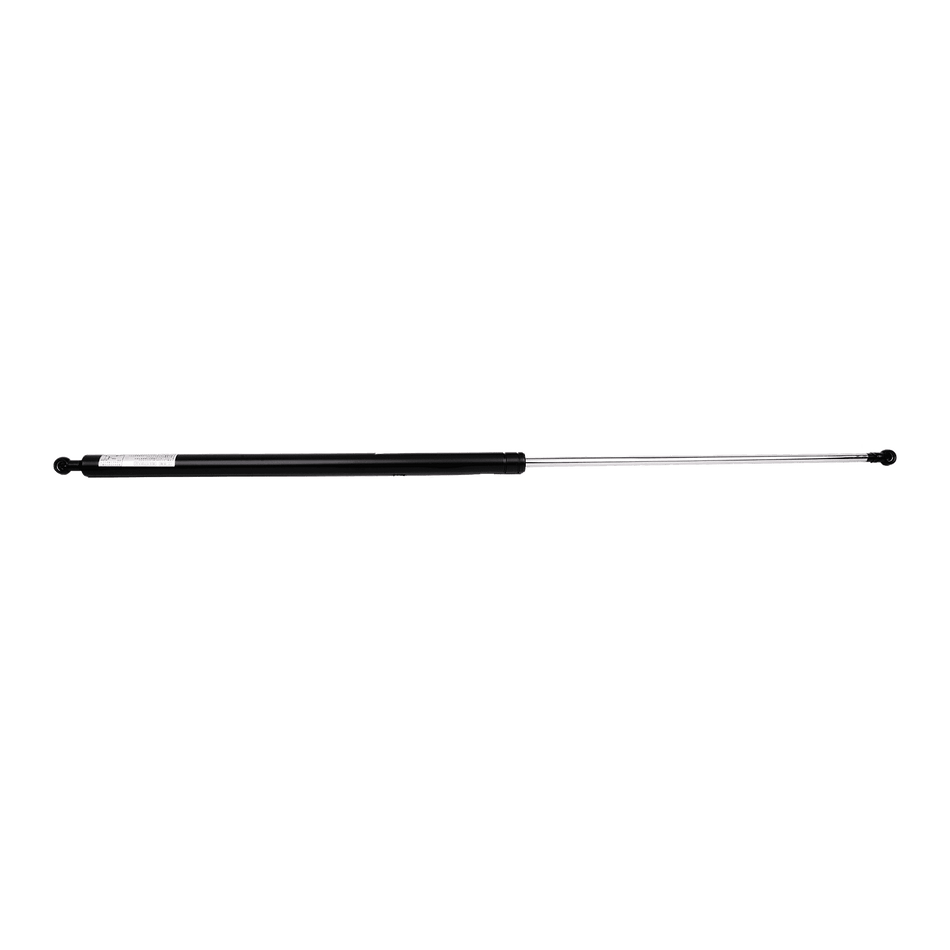

Takeuchi Gas Spring 0880865124
TakeuchiIn stockDescriptionThe Takeuchi Gas Spring 880865124 is a reliable addition to your machine. It has a weight of 1.2 lbs. Its smooth and consistent operatio...
View full detailsOriginal price $61.70 - Original price $61.70Original price$61.70$61.70 - $61.70Current price $61.70| / -
Original price $91.03 - Original price $91.03Original price$91.03$91.03 - $91.03Current price $91.03| /
Takeuchi Ignition Starter Switch with Key (Canopy) 1700100072
TakeuchiIn stockDescriptionThe Takeuchi Starter Switch 1700100072 is a heavy-duty, commercial-grade switch. It has a weight of 0.7 lbs. It is constructed from robu...
View full detailsOriginal price $91.03 - Original price $91.03Original price$91.03$91.03 - $91.03Current price $91.03| / -
Original price $15.00 - Original price $15.00Original price $15.00$16.85$16.85 - $16.85Current price $16.85| /
Takeuchi Sediment Strainer KRD451-51940
TakeuchiIn stockDescriptionThe Takeuchi Sediment Strainer KRD451-51940 is the perfect tool for any construction project. Made from durable materials, it is designe...
View full detailsOriginal price $15.00 - Original price $15.00Original price $15.00$16.85$16.85 - $16.85Current price $16.85| / -
Original price $14.78 - Original price $14.78Original price$14.78$14.78 - $14.78Current price $14.78| /
Takeuchi Valve Assembly Check 1541300501
TakeuchiIn stockManufacturer: Takeuchi Part Name: Valve Assembly Check Part Number/MPN: 1541300501
Original price $14.78 - Original price $14.78Original price$14.78$14.78 - $14.78Current price $14.78| / -
Original price $15.13 - Original price $15.13Original price$15.13$15.13 - $15.13Current price $15.13| /

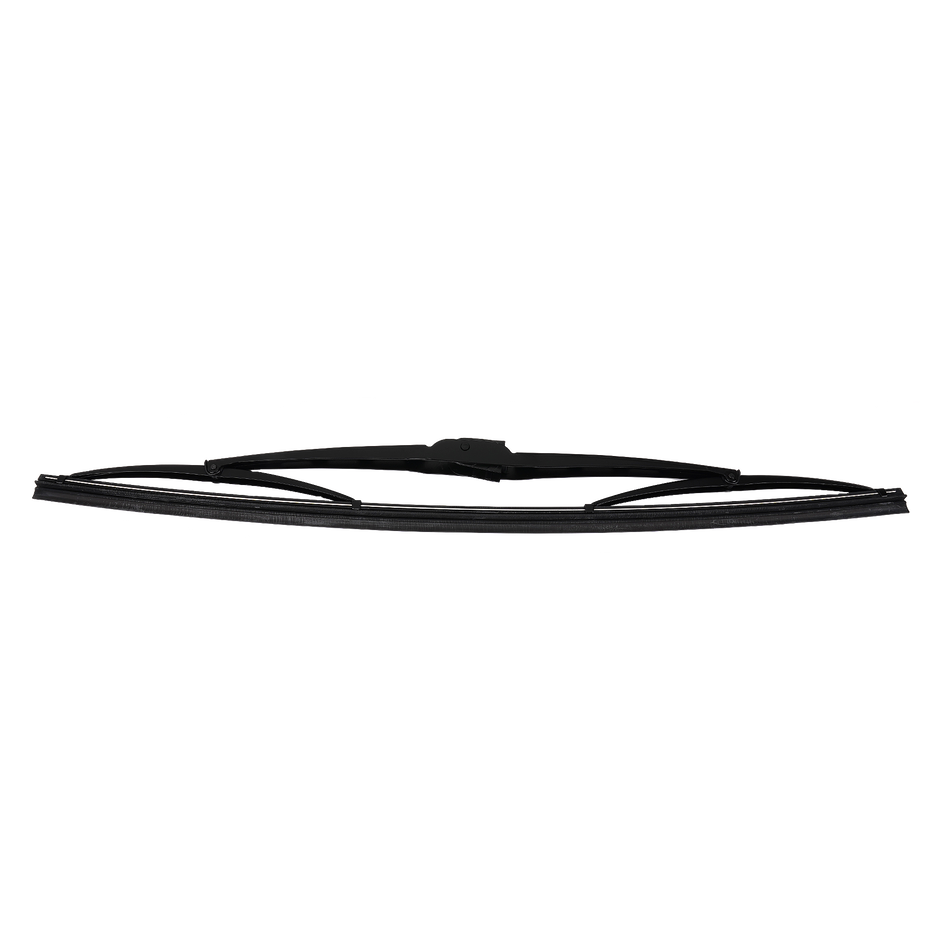

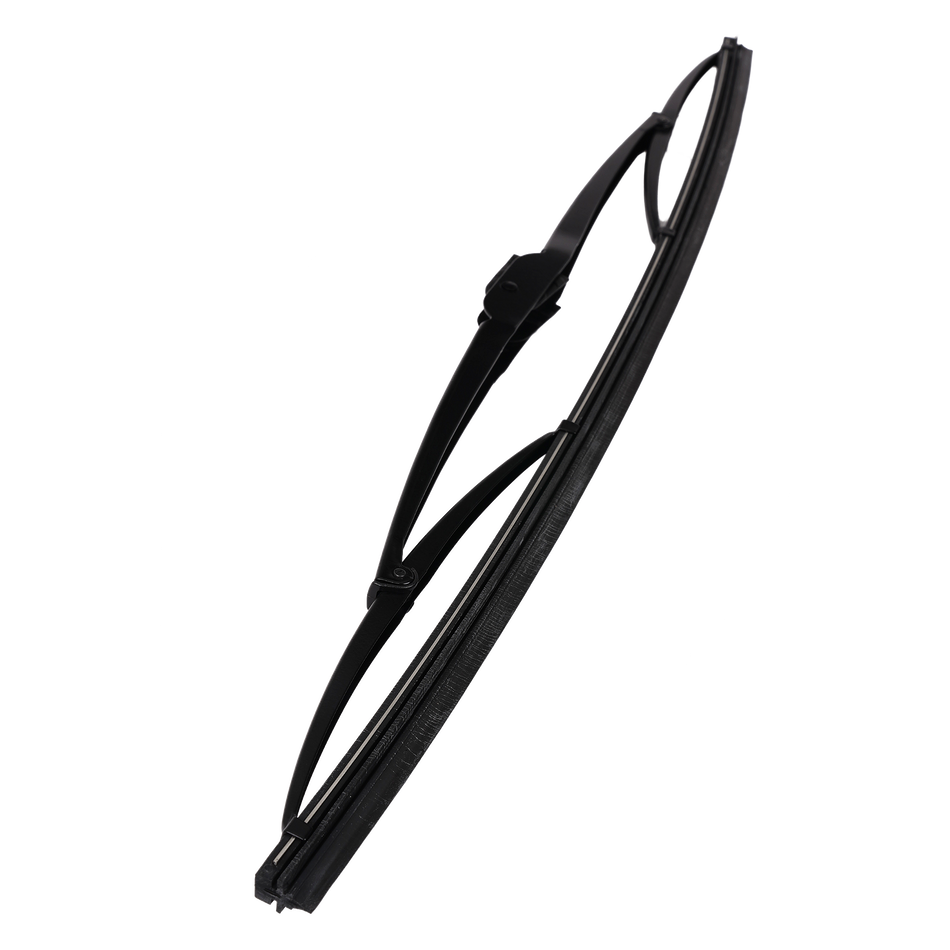

Takeuchi Wiper Blade 0880865304
TakeuchiIn stockDescriptionThe Takeuchi Wiper 880865304 is the perfect choice to provide a clear view of your surroundings while operating your machine. Its weight...
View full detailsOriginal price $15.13 - Original price $15.13Original price$15.13$15.13 - $15.13Current price $15.13| / -
Original price $86.99 - Original price $86.99Original price$86.99$86.99 - $86.99Current price $86.99| /

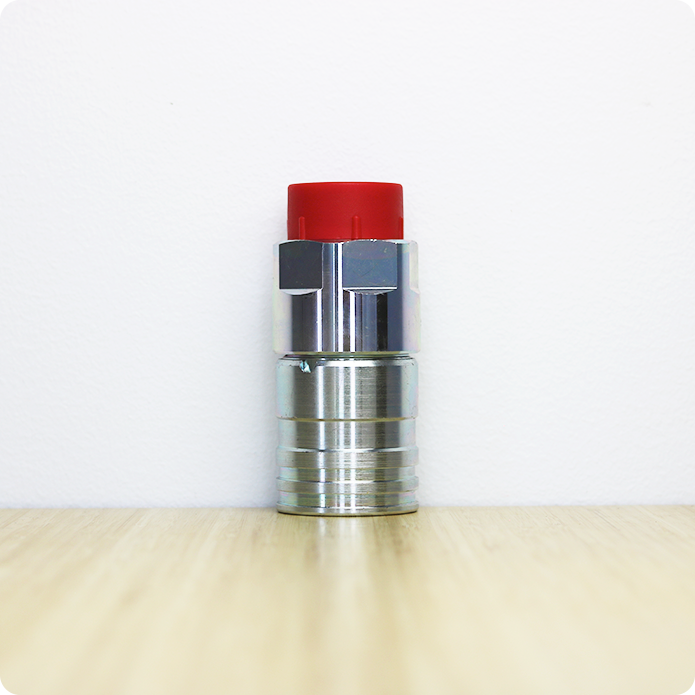

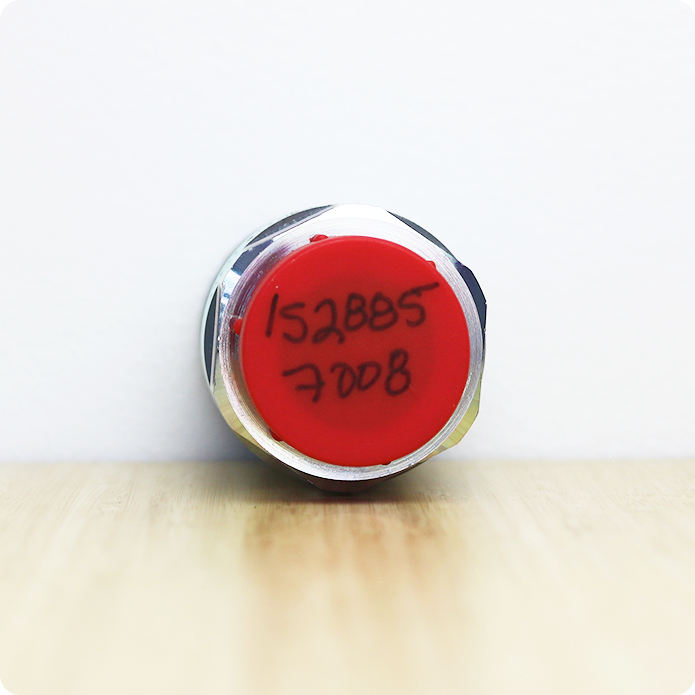

Takeuchi Saturn Block Female Coupler Standard Flow (1/2 SAE EXT ON BLOCK) K28857012
TakeuchiIn stockDescriptionThe Takeuchi Coupler K28857012 is the perfect solution for connecting and disconnecting tools quickly and easily. It has a weight of 1.1...
View full detailsOriginal price $86.99 - Original price $86.99Original price$86.99$86.99 - $86.99Current price $86.99| / -
Original price $64.97 - Original price $64.97Original price$64.97$64.97 - $64.97Current price $64.97| /
Takeuchi Inner Air Filter 1911113002
TakeuchiIn stockDescriptionThe Takeuchi Air Filter 1911113002 prevents dust and other harmful particles from entering your engine which can create a number of prob...
View full detailsOriginal price $64.97 - Original price $64.97Original price$64.97$64.97 - $64.97Current price $64.97| / -
Original price $200.00 - Original price $200.00Original price $200.00$240.71$240.71 - $240.71Current price $240.71| /
Takeuchi TL12V-2 500 Hour Preventive Maintenance Filter Kit K38869901
TakeuchiMore on the way!DescriptionThe Takeuchi Filter Kit K38869901 is designed to provide protection from dust, debris and other materials from slowing down your machine...
View full detailsOriginal price $200.00 - Original price $200.00Original price $200.00$240.71$240.71 - $240.71Current price $240.71| /Sold out -
Original price $25.00 - Original price $25.00Original price $25.00$91.66$91.66 - $91.66Current price $91.66| /
Takeuchi Outer Air Filter 1911262102
TakeuchiIn stockDescriptionThe Takeuchi Air Filter 1911262102 prevents dust and other harmful particles from entering your engine which can create a number of prob...
View full detailsOriginal price $25.00 - Original price $25.00Original price $25.00$91.66$91.66 - $91.66Current price $91.66| / -
Original price $29.65 - Original price $29.65Original price$29.65$29.65 - $29.65Current price $29.65| /
Takeuchi Pin 0881612150
TakeuchiIn stockDescription The Takeuchi Pin 881612150 is an ideal selection for securing objects together during construction projects. It has a weight of 1.9 lbs...
View full detailsOriginal price $29.65 - Original price $29.65Original price$29.65$29.65 - $29.65Current price $29.65| / -
Original price $25.61 - Original price $25.61Original price$25.61$25.61 - $25.61Current price $25.61| /
Takeuchi Outer Air Filter (Aftermarket) AFY129948-12621
TakeuchiIn stockDescriptionThe Takeuchi Air Filter AFY129948-12621 prevents dust and other harmful particles from entering your engine which can create a number of...
View full detailsOriginal price $25.61 - Original price $25.61Original price$25.61$25.61 - $25.61Current price $25.61| / -
Original price $24.40 - Original price $24.40Original price$24.40$24.40 - $24.40Current price $24.40| /
Takeuchi Yoke 0881612060
TakeuchiIn stockDescriptionThe Takeuchi Slip Yoke 881612060 is designed with robust materials to provide a long-lasting and durable performance. Its weight is 0.6 ...
View full detailsOriginal price $24.40 - Original price $24.40Original price$24.40$24.40 - $24.40Current price $24.40| / -
Original price $10.00Original price $10.00 - Original price $10.00Original price $10.00Current price $5.73$5.73 - $5.73Current price $5.73| /
Takeuchi Dust Seal 1432200045
TakeuchiIn stockDescriptionThe Takeuchi Seal 1432200045 is a great choice for your machine. Made with robust materials, it promises a reliable performance to prote...
View full detailsOriginal price $10.00Original price $10.00 - Original price $10.00Original price $10.00Current price $5.73$5.73 - $5.73Current price $5.73| /Save 43% Save % -
Original price $70.59 - Original price $70.59Original price$70.59$70.59 - $70.59Current price $70.59| /
Takeuchi Saturn Block Coupler Standard Flow (MALE 1/2 SAE EXT ON BLOCK) K28857010
TakeuchiIn stockSaturn Block Coupler Male Standard Flow 1/2 SAE EXT ON BLOCK Part no. K28857010
Original price $70.59 - Original price $70.59Original price$70.59$70.59 - $70.59Current price $70.59| / -
Original price $50.00Original price $50.00 - Original price $50.00Original price $50.00Current price $38.60$38.60 - $38.60Current price $38.60| /
Takeuchi (Kubota) Fan Belt K1G377-97010
TakeuchiIn stockDescriptionThe Takeuchi V-Belt K1G377-97010 is the perfect choice for your machine. It's made of high-quality materials to provide reliable power a...
View full detailsOriginal price $50.00Original price $50.00 - Original price $50.00Original price $50.00Current price $38.60$38.60 - $38.60Current price $38.60| /Save 23% Save % -
Original price $29.04 - Original price $29.04Original price$29.04$29.04 - $29.04Current price $29.04| /

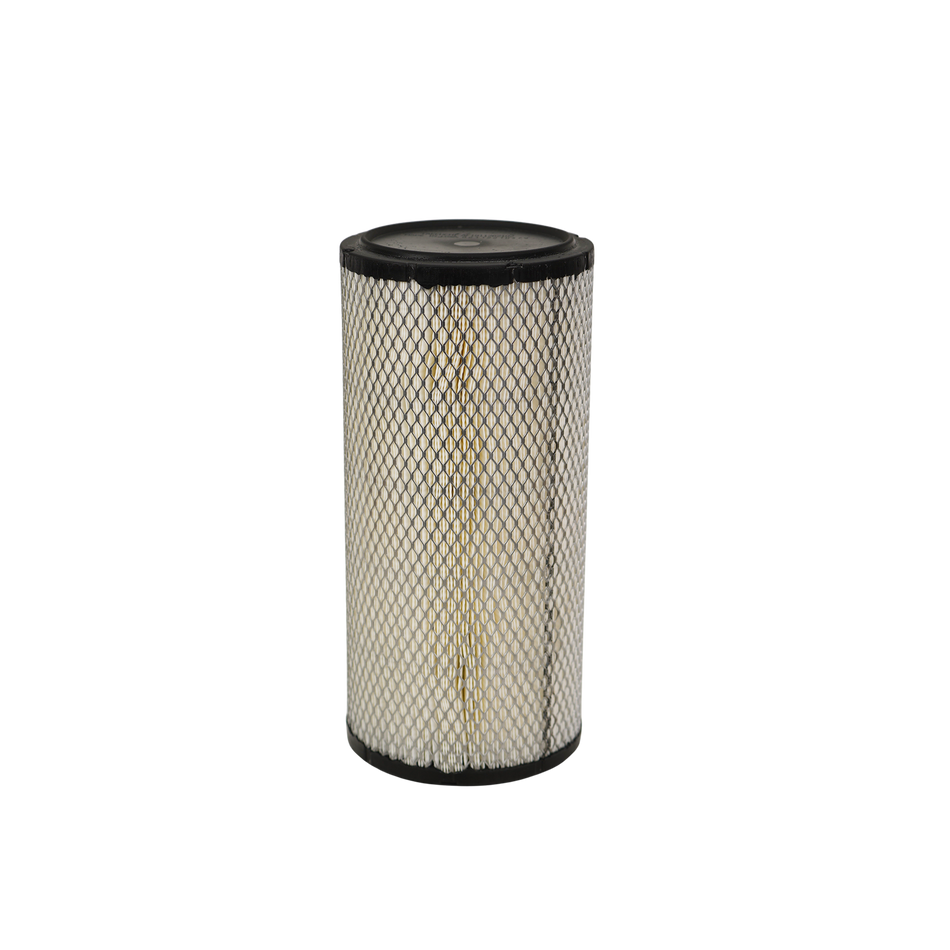

Takeuchi Aftermarket Outer Air Filter AF1911262102
TakeuchiIn stockManufacturer: Takeuchi Part Name: Aftermarket Outer Air Filter Part Number/MPN: AF1911262102
Original price $29.04 - Original price $29.04Original price$29.04$29.04 - $29.04Current price $29.04| /
