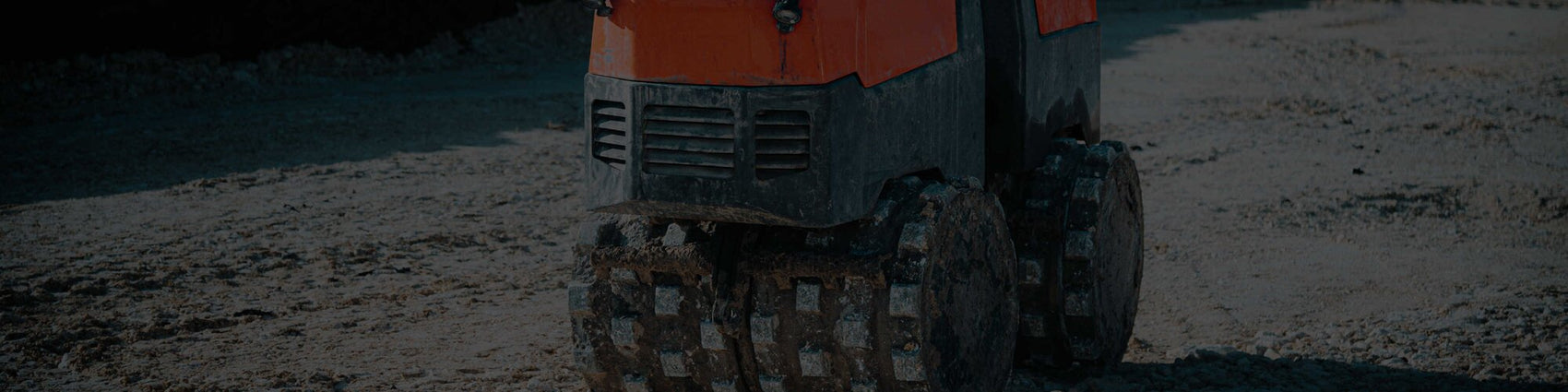

The Functions of a Trench Roller and How to Make Sure Yours Avoids Downtime
The Functions of a Trench Roller and How to Make Sure Yours Avoids Downtime
Reading time: 5 min
While not the most exciting aspect of construction, trenching is a common and necessary part of many projects. Trenching, which is the process of creating narrow excavations on a site, is fundamental for laying pipes, cables and other underground installations.
Two popular types of equipment commonly used in trenching are trenchers and trench rollers. A trencher, as the name suggests, is primarily used for digging trenches. It is a powerful piece of machinery equipped with a digging chain or blade designed for slicing through soil.
In contrast, a trench roller plays a crucial role in compacting the soil at the bottom of a trench that has already been dug. This compaction is essential for providing a stable base and sidewalls, ensuring the stability and uniformity of the trench.
Trench rollers are useful for more than just smoothing out trenches. They’re useful for compacting soil in a variety of circumstances. Trench rollers are popular because they’re typically remote-controlled and don’t require an operator to ride on the machine.
Like all equipment, a trench roller requires proper maintenance to remain in good working condition. Ensuring your trench roller is properly maintained will not only reduce downtime but improve the efficiency of the equipment, as well.
In this article, we’ll discuss the functions of a trench roller, providing you with essential tips to keep your equipment in working condition.
Understanding Trench Rollers
Trench rollers are essentially compaction machines that use rotating drums to vibrate the soil and compact it. Unlike larger models, however, trench rollers are small and compact.
Their unique form factor makes them exceptional tools for compacting in tight spaces, such as between buildings or on walkways. They are also operated by a remote control, rather than a ride-on operator. This makes them safer to use since operators can control the machine at a distance.
While trench rollers are popular for compacting trenches, they have uses outside of trenching, as well. They are a popular choice for a wide variety of tasks such as laying foundations, flooring prep, and building driveways.
Trench Roller Components
Like compactors, trench rollers rely on an array of specialized components to compact soil. Here are the types of components that commonly make up a trench roller:
Drum
The drum is arguably the most crucial component of a trench roller. It's the part that makes direct contact with the soil for compaction. Trench rollers typically feature one of two drum types:
Smooth Drums:
Ideal for compacting granular soils like sand and gravel, smooth drums provide uniform compaction over the trench surface.
Padfoot Drums:
These have raised 'feet' or 'pads' on the drum surface and are better suited for cohesive soils like clay. The pads help in exerting greater pressure on the soil, achieving more effective compaction in challenging soil types.
Engine
Diesel engines are common due to their durability and high torque output, essential for the heavy compaction work. The engine's power rating is a key determinant of the roller’s capability, especially in terms of the depth of soil it can effectively compact.
Control Systems
Control systems in trench rollers vary from basic manual controls to advanced automatic systems. Modern trench rollers often feature remote control systems, allowing operators to control the machine from a safe distance, enhancing both safety and precision.
Steering Systems
Steering systems in trench rollers are designed for maneuverability in tight spaces. Hydraulic steering is a standard feature, providing smooth operation and precise control, which is crucial in the confined spaces of trenches.
Safety Features
Safety is critical in construction equipment, and trench rollers are equipped with various safety features.
Emergency Stop Buttons:
These allow for immediate shutdown of the machine in case of an emergency.
Roll-Over Protection:
This feature helps protect the operator in the event of a rollover.
Safety Guards:
Placed around moving parts, these guards protect the operator from injury.
The Specific Roles and Functions of Trench Rollers
Trench rollers are pivotal in projects requiring precise soil compaction, such as laying utility pipes, fiber optic cables or foundation work. In construction, they’re essential for creating stable bases for roads and buildings.
Beyond construction, they're used in landscaping for preparing sub-surfaces for hardscaping and in agriculture for land leveling.
Depending on the soil type, the drum type (smooth or padfoot) can be swapped out to ensure optimal compaction. Their versatility and adaptability to different surfaces make trench rollers indispensable in various trenching projects.
Tips for Maintaining a Trench Roller’s Performance
Maintaining a trench roller is crucial for its longevity and efficiency. Here's a breakdown of routine maintenance tasks:
Daily Tasks
- Check hydraulic fluid and engine oil levels
- Inspect for leaks in hydraulic lines
- Examine the drum for damage or debris
Weekly Tasks
- Clean or replace air filters if necessary
- Check coolant levels and radiator condition
- Inspect hoses and connections for wear
Monthly Tasks
- Replace hydraulic fluid filters
- Grease bearings and joints
- Check and adjust belt tension if needed
Annual Tasks
- Perform a comprehensive engine check
- Replace worn-out parts like seals and gaskets
- Check drum alignment and condition
Selecting a Trench Roller
When selecting a trench roller, consider the specific needs of your project. The ground conditions of the jobsite are crucial since different soil types require varying compaction methods.
Weather conditions also play a role, as wet or dry climates can affect soil texture and compaction effectiveness. The size of the jobsite influences the choice of roller size for maneuverability and efficiency.
Choosing the wrong type of roller can lead to inadequate soil compaction, resulting in unstable foundations, and can also increase project time and costs due to inefficiency and potential rework.
Final Thoughts
Trench rollers remain a key piece of equipment used in trenching projects. Diligent maintenance and frequent inspections of these novel machines will ensure they remain efficient and safe to use for their entire lifespan.
If you’re looking for aftermarket trench roller parts, then check out the EquipmentShare Shop. Our extensive online catalog features OEM and aftermarket trench roller parts, including specific collection pages for certain trench roller models. Don’t see what you’re looking for? Reach out to our parts experts and get personalized assistance.
