Understanding Your Excavator's Lifting Capacity to Protect Your Equipment

Understanding Your Excavator's Lifting Capacity to Protect Your Equipment

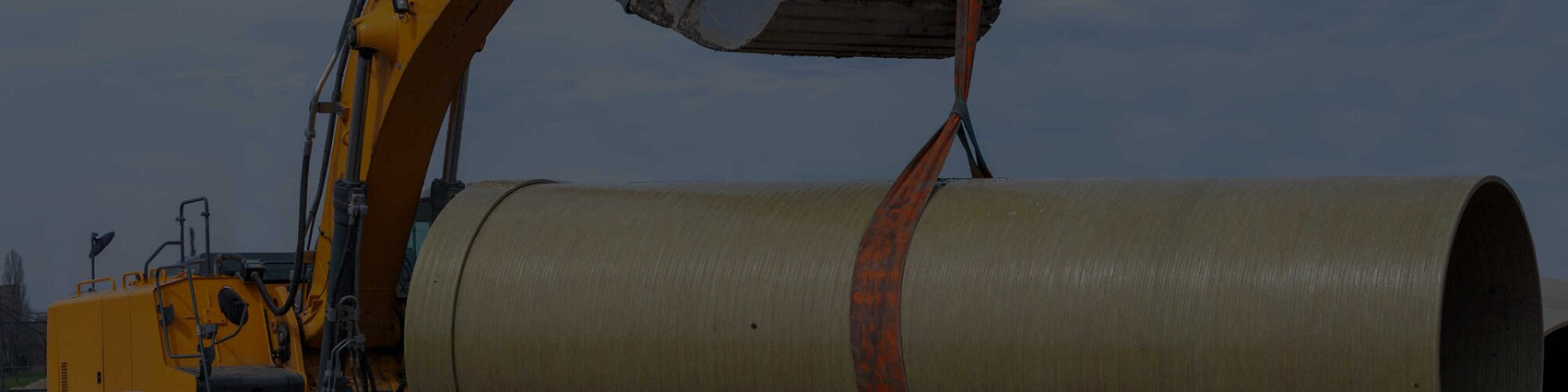

A yellow excavator with a bucket attachment lifting a large cylinder

Understanding Your Excavator's Lifting Capacity to Protect Your Equipment

Reading time: 5 min 30 sec

Excavators are powerful and versatile, frequently tasked with a wide range of duties—from digging trenches and holes to demolition, heavy lifting and material handling. Each model has a particular lifting capacity, which is a measure of the maximum weight it can safely lift while performing tasks.

Understanding your excavator’s lifting capacity is essential to protecting your equipment’s longevity and maintaining the safety of your operators. Overloading an excavator beyond its lifting capacity can lead to catastrophic failures, risking the lives of operators and nearby workers. It can also damage the machine itself, leading to costly repairs and downtime.

On the other hand, knowing the precise lifting capacity of your excavator can help you plan and execute projects more efficiently. It enables you to match the right excavator to the job at hand, ensuring tasks are completed on time and without extra risk to the machine.

In this guide, we’ll take a deep dive into excavator lifting capacities, so you can better understand how to use this type of heavy equipment efficiently and responsibly.

The Importance of Following Lifting Capacity Guidelines

Exceeding an excavator’s lifting capacity guidelines poses significant safety hazards, including the risk of the excavator tipping over or the operator losing control, which can lead to serious injuries or fatalities. Additionally, going beyond capacity guidelines may be a violation of health and safety regulations, resulting in legal consequences or fines.

From a maintenance perspective, operating within an excavator’s prescribed lifting capacity can help preserve the machine's integrity. Overloading places undue stress on the excavator's hydraulic systems, undercarriage and structural components, accelerating wear and tear. This not only increases maintenance costs, it shortens the equipment's operational lifespan.

Specific Factors That Affect An Excavator’s Lifting Capacity

Several specific aspects of an excavator directly influence its lifting capacity, each playing a role in determining how much weight the machine can safely handle.

Equipment Size

Firstly, the size and weight of the excavator set the basic limits of its lifting capabilities. Heavier and larger excavators generally have higher lifting capacities due to their ability to provide greater stability and support.

Boom/Arm Length

The length of the boom and arm is another factor to consider. Longer booms and arms can reach further but may reduce lifting capacity due to the increased leverage exerted on the machine's structure. This is why, for certain tasks requiring reach rather than lifting strength, an excavator with a longer boom and arm might be preferred.

Counterweights and Balancing Components

Counterweights and balancing components can significantly enhance lifting capacity by offsetting the load's weight. However, there's a trade-off, as excessive counterweighting can affect the excavator's mobility and transportability.

Hydraulic System Capacity

The capacity of the hydraulic system determines how much force can be exerted for lifting. Higher-capacity hydraulic systems enable greater lifting capabilities, but they also require more power and incur higher costs.

Attachment Selection

Lastly, the attachment being used drastically affects lifting capacity. Different attachments, such as buckets, hammers or grapples, have varying weights and functions, which can either enhance or limit the excavator's ability to lift heavy objects.

Specific Parts That Affect Lifting Capacity

The undercarriage of an excavator plays a fundamental role in its lifting capacity, with aspects such as the track width and the design providing stability and support. A wider track width offers better distribution of the machine's weight, improving stability during lifting tasks.

The engine is another important factor to consider. A more powerful engine can support a higher lifting capacity by providing the necessary energy to operate the hydraulic system effectively, especially under the strain of lifting heavy loads.

Finally, the hydraulic system also plays a role in determining lifting capacity. The hydraulic pump capacity determines the flow rate of hydraulic fluid, which in turn influences how quickly and forcefully the arm can move. Larger cylinders can exert more force, thereby increasing lifting capacity.

The Average Lifting Capacity of an Excavator

Excavators come in various sizes, each with its unique lifting capacity tailored to different needs. Mini or compact excavators, like the SANY SY35U or Takeuchi TB290 and TB260, typically have lifting capacities ranging from 1,500 to 7,000 pounds.

Mid-size excavators, like the SANY SY135C, offer a broader range of lifting capabilities, generally between 8,000 and 20,000 pounds. These excavators balance power and agility, making them versatile for a wide array of tasks.

Large excavators, like the SANY SY365C and the Link-Belt 145X4, boast lifting capacities that can exceed 40,000 pounds. The increased lifting capacity of larger excavators is attributed to their more substantial build, larger boom arms, enhanced hydraulic power and larger engines.

Lifting Capacity vs Stability

Generally speaking, as you approach the excavator’s lifting capacity, it becomes less stable. While pushing a machine to its maximum lifting capacity can achieve more work, it also poses significant risks, including tipping, which can jeopardize both the operator's safety and the integrity of the equipment.

Attachment Considerations

Different attachments significantly influence an excavator's center of gravity and its lifting capacity. Attachments vary widely in weight, size and function, each altering how an excavator balances and operates.

Heavier or larger attachments, such as large buckets, hammers or grapples can shift the center of gravity further from the machine's base, reducing stability and lifting capacity due to increased leverage against the excavator.

To maintain safe and effective operation, it's important to select attachments that are compatible with the excavator's lifting capacity and intended use.

Best Practices for Maximizing Lifting Capacity

Maximizing an excavator's lifting capacity while minimizing the impact of heavy loads involves a combination of approaches. Operationally, using the machine within its design limits is crucial. This includes adhering to the lifting capacity guidelines provided by the manufacturer and utilizing lifting charts to understand how different factors affect capacity.

From a maintenance perspective, regular inspections and upkeep are vital. Ensuring that the hydraulic system is in top condition, with no leaks and proper fluid levels, directly impacts the excavator's lifting capabilities.

Implementing these best practices not only increases the excavator's lifting capacity but also extends the lifespan of the equipment, ensuring it performs efficiently and safely over time.

Final Thoughts

Adhering to lifting capacity guidelines is a critical requirement for the safety of operators and the optimal performance of heavy equipment, especially excavators. Overloading an excavator beyond its designed capacity can lead to dangerous situations, including tipping accidents and equipment failure, resulting in costly downtime and repairs.

With a wide selection of OEM and aftermarket parts, the EquipmentShare Shop has the necessary components required to keep your excavator in top condition. Search our extensive excavator parts collection to find what your machine needs. Still don’t see what you’re looking for? Reach out to our dedicated parts experts and get personalized assistance.
