A Guide to Sprockets in Construction Equipment: Types, Functions, Maintenance, and More

A Guide to Sprockets in Construction Equipment: Types, Functions, Maintenance, and More

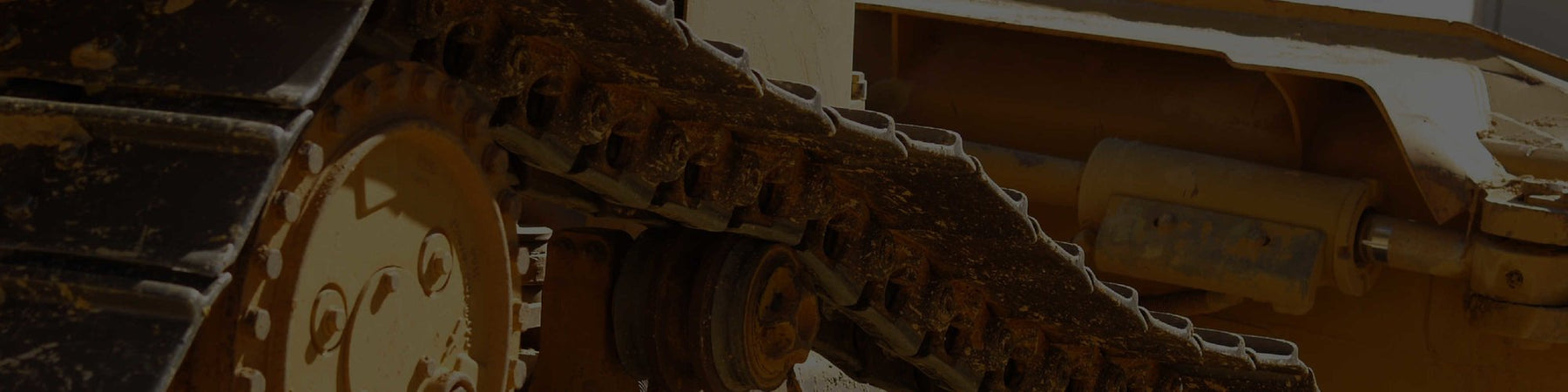

The side of an tracked machine with the final drive and sprocket at the forefront

A Guide to Sprockets in Construction Equipment: Types, Functions, Maintenance, and More

Reading time: 6 min

A machine’s undercarriage is complex, consisting of many moving parts that work in tandem to drive its tracks and propel it forward. Given the sheer number of parts that make up the undercarriage, it can be difficult to understand how individual undercarriage components affect machine performance.

Sprockets are a critical, yet frequently overlooked, component of the undercarriage. A sprocket is a wheel-like component with teeth or cogs protruding from its perimeter. These teeth are designed to engage with a continuous loop of interlocking components on the interior of a machine’s tracks, driving it forward.

While sprockets are frequently compared to gears due to their similar shape and function, there is a fundamental distinction between the two. Gears typically mesh with other gears, while sprockets are designed to engage directly with a machine’s tracks.

In tracked heavy equipment, such as excavators, sprockets are installed around the machine's drive. By serving as the connection between a machine’s drive and its tracks, sprockets play the pivotal role of ensuring efficient power transfer between the engine and a machine’s tracks.

To withstand the immense forces and constant wear associated with construction tasks, sprockets are manufactured from very durable materials. Most commonly, sprockets are made from heat-treated steel.

In this guide, we’ll take an in-depth look at sprockets and the role they play in heavy equipment. We’ll go over the types of sprockets commonly found in construction equipment and how these components should be maintained to ensure the efficiency and longevity of heavy equipment.

The Role of Sprockets in Construction Equipment

The basic anatomy of a sprocket comprises a central hub and an outer ring that has teeth protruding from its perimeter. These teeth are precisely shaped and spaced to accommodate and engage with the links of a machine’s tracks.

Several terms are used to describe the characteristics of a sprocket:

  • Pitch: Pitch refers to the distance between two consecutive links on a chain or track. It is a critical measurement as it determines the type and size of the sprocket required.

  • Teeth: These are the projections on the outer rim of the sprocket that interlock with the chain or track. The number and shape of teeth can vary, affecting the sprocket's ability to transmit power.

  • Sprocket Ratio: This ratio measures the relationship between the number of teeth on the driving sprocket (connected to the drive) and the driven sprocket (connected to the tracks). The sprocket ratio influences the machine's speed and torque, which we'll explore in more detail.

What a Sprocket Does for Heavy Equipment

A sprocket’s primary function in heavy equipment, such as excavators and dozers, is to convert the rotational power of the engine into linear motion. This is accomplished by transferring the rotational force of the drive into the tracks, propelling the machine forward or backward.

Sprockets play an important role in determining the speed and torque of a machine. The sprocket ratio, in particular, has a substantial impact on a machine’s speed and torque.

A larger driving sprocket relative to the driven sprocket results in higher torque, providing the machine with additional power. Smaller driving sprockets, on the other hand, will increase the speed of the machine but sacrifice torque.

Sprockets are primarily associated with the undercarriage of tracked machines, which rely on sprockets to turn their tracks. Wheeled machines, on the other hand, typically do not use sprockets.

The Role of Sprockets in a Machine’s Undercarriage

Sprockets interface with several undercarriage components. Specifically, sprockets must interface with idlers, rollers and track shoes.

Idlers, which remain stationary, ensure proper track tension and alignment, allowing the sprockets to engage efficiently with the tracks. Meanwhile, rollers bear the machine’s weight, working with the sprockets to distribute the machine's load evenly.

Track shoes, which form the track assembly, rely on the sprockets for movement. As sprockets drive a machine’s track chain, they propel the track shoes.

Types of Sprockets in Construction Equipment

Regarding construction equipment, drive sprockets are the most critical type of sprocket found in the undercarriage. A drive sprocket interfaces directly with a machine’s drive and tracks, giving it the important role of powering the machine and driving its motion.

However, drive sprockets aren’t the only type of sprocket found in the undercarriage. Another type of sprocket called an idler sprocket, can be found at the opposite end of the machine from the drive sprocket.

Unlike drive sprockets, which are connected to the engine, idler sprockets have internal bearings and spin freely. Their primary role is to control the slack and alignment of a machine’s track chain as it rotates about the undercarriage.

Sprocket Maintenance

Proper maintenance of a machine’s sprockets is an essential part of ensuring the efficient performance and longevity of the undercarriage.

Regular sprocket maintenance tasks include alignments, adequate lubrication and frequent cleanings. It’s also important to inspect the sprockets regularly, paying special attention to uneven wear or missing teeth. Recognizing these signs early on will help you prevent unnecessary damage to the sprockets.

Several common troubleshooting issues may indicate that a machine’s sprockets need attention:

  • Chain slippage. This occurs when the chain disengages or slips from the sprocket teeth.
  • Excessive noise and vibration. Unusual noise and vibration are common indicators of sprocket problems such as damaged teeth or worn-out chain links.
  • Uneven or excessive wear. Sprockets should wear evenly over time. If you notice uneven or rapid wear, it may indicate alignment issues or chain tension problems.
  • Missing or broken teeth. Missing or broken teeth can severely affect the engagement between the chain and sprocket.

While the need for sprocket replacement is determined by factors like use frequency and working conditions, sprockets should last a very long time. In most cases, sprockets should last a few thousand operating hours or longer.

Final Thoughts

Sprockets are one of the most important components that make up a machine’s undercarriage. They perform the critical tasks of transferring power from the engine to the tracks and maintaining the tension and efficient performance of the tracks.

Given their outsized impact on machine performance, it’s critical that operators properly maintain and care for their machine’s sprockets. Through proper maintenance and regular inspections, operators can reduce maintenance costs and improve efficiency.

The EquipmentShare Shop has a collection of replacement sprockets, helping you get your machine back in working condition should a sprocket become damaged. The EquipmentShare Shop also has a collection of undercarriage parts, should a worn sprocket contribute to the damage of other components in your machine. Having trouble locating the specific parts you need? Reach out to our dedicated parts experts and get personalized assistance.
