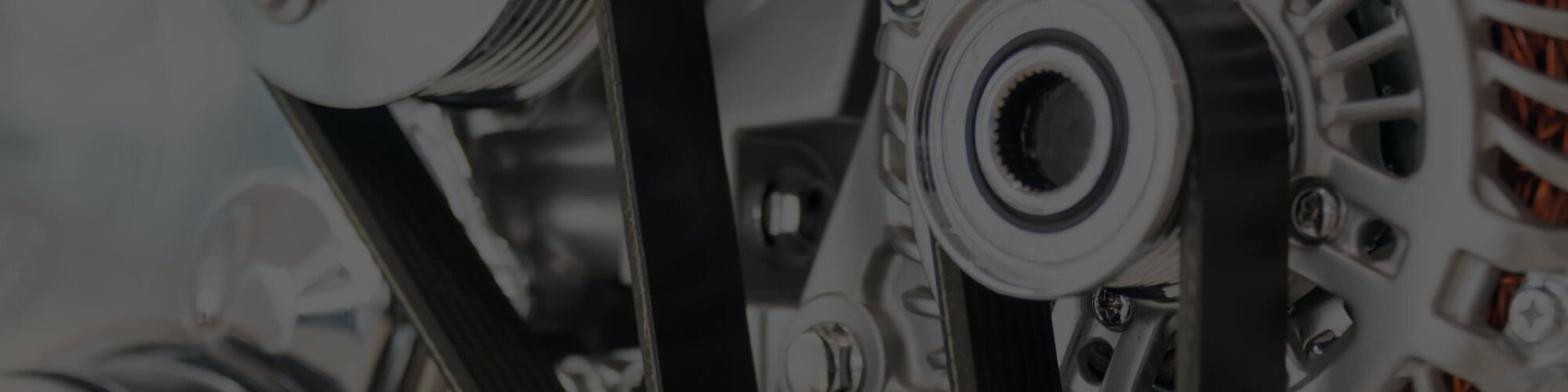

A close-up of a an engine belt wrapped around a pulley

The Role of V-Belts in Construction Equipment: What You Need to Know

Reading time: 6 min

Introduction to V-Belts in Heavy Equipment

V-belts, characterized by their distinctive V-shaped cross-section, are used in construction equipment to transmit power between axles and various components effectively. An essential part of heavy equipment design, V-belts drive critical components such as fans, alternators and hydraulic pumps.

In this article, we will explore the types of V-belts used in construction equipment, their relationships with other machine components and their roles in the functionality of heavy equipment. Understanding these crucial components will equip you with the knowledge to optimize the performance of your fleet.

Understanding V-Belt Basics

V-belts, with their distinctive V-shaped cross-section, are a critical component in the power transmission system of heavy equipment. This unique shape is designed to maximize surface contact with the pulley grooves, enhancing grip and preventing slippage.

Constructed from a blend of synthetic rubber, neoprene and sometimes reinforced with materials like Kevlar for added strength, V-belts are engineered to be both flexible and sturdy. This combination of flexibility and strength allows them to withstand intense loads.

Their ability to elongate slightly under load without losing grip ensures a consistent transmission of power to various machine components.

Uses in Heavy Equipment

In construction equipment, V-belts are typically found connecting the engine’s power output with several key components. For instance, they drive alternators, which are crucial for charging the machine’s battery and powering the electrical system.

Additionally, V-belts are used to turn fans that cool the engine and other critical systems, preventing overheating and potential damage.

The performance of V-belts directly influences the efficiency of the components they drive. For example, in cooling fans and water pumps, V-belts are required to maintain the engine's temperature. If a V-belt slips or wears out, the reduced drive efficiency can lead to higher engine temperatures, resulting in engine failure.

Similarly, hydraulic systems, which depend heavily on the consistent operation of hydraulic pumps powered by V-belts, can suffer from operational inefficiencies if the belts aren’t performing optimally.

Selecting the Right V-belt

Selecting the right V-belt for construction equipment is not just about fitting a belt of the correct length and width. The profile of the V-belt—whether it is a classical, narrow or wedge belt—needs to be compatible with the pulley grooves on the equipment.

Each profile offers different benefits, such as increased surface contact and better heat dissipation, which are crucial for construction equipment.

The tension of the V-belt is also crucial. A belt that’s overly tight may wear down the bearings of the driven components, while one that’s too loose might slip. Proper tension ensures optimal power transmission without excessive wear or energy loss.

Belt size is also a key consideration, as it affects the belt’s speed and overall efficiency of power transfer. Ensuring the belt is correctly sized and tensioned, and selecting a belt made from materials that can withstand the specific environmental conditions of the job site are important factors.

Types of V-Belts

In construction equipment, different types of V-belts are employed for specific benefits and particular applications. Here are the most common types found in heavy machinery.

An illustration of a standard V-belt

Standard V-belts

Standard V-belts are the most common type of V-belt used in construction equipment. They’re typically wider and have a larger cross-section compared to other types, which allows for a greater surface area to contact with the pulley.

This design is beneficial for applications requiring high strength and durability. Standard V-belts are ideal for general power transmission needs and are frequently used in less dynamic, more straightforward setups.

An illustration of a narrow V-belt

Narrow V-belts

As the name suggests, these belts are narrower than standard V-belts but designed to transmit the same or greater power. The smaller width allows these belts to operate efficiently at higher speeds and with less heat buildup, making them popular for applications that require a compact design.

Wedge Belts

Wedge belts are a type of narrow V-belt with a deeper wedge angle. This design increases the surface contact with the pulley, improving power transmission and reducing slippage.

Wedge belts can handle up to twice the load of classical V-belts with the same top width. This makes them particularly effective in heavy-duty applications.

An illustration of a banded V-belt

Banded V-belts

These belts consist of multiple standard or narrow V-belts that are physically connected by a common backing. This design prevents the belts from vibrating or turning over on the pulleys, which is important in cases where vibration is present.

Maintenance and Replacement

Regular maintenance and timely replacement of V-belts are key to keeping your construction equipment running smoothly.

Signs of Wear

Typical wear signs include visible cracks on the belt surface, fraying along the edges and a shiny or glazed appearance indicating that the belt has been slipping. These conditions not only reduce the belt's efficiency but can also lead to its sudden failure, potentially halting the entire operation.

V-belt Maintenance Practices

Maintaining V-belts involves several important practices.

Proper tensioning is a key consideration. An overly tight belt can cause excessive wear on bearings and other components, while one that’s too loose may slip or jump off the pulley tracks. Regular checks and adjustments for proper tension are necessary to keep the belt operating smoothly.

Alignment checks are also critical, since misaligned pulleys can lead to uneven belt wear and reduced operational efficiency. Using a straightedge or laser aligner can help verify that all pulleys are in the same plane.

V-belt Lifespan

The lifespan of a V-belt varies depending on its use and the conditions it operates under, but a typical replacement interval might range from 6 months to a year for heavily used equipment.

Environmental factors such as exposure to dust, chemicals and extreme temperatures can accelerate wear, leading to earlier replacement. Operators should keep a maintenance log to track the performance and replacement of V-belts, ensuring that these components are replaced before they fail.

Regular inspections, scheduled maintenance and adherence to replacement guidelines are all essential strategies to keep V-belts in good condition.

Serpentine Belts vs V-belts

Serpentine belts, while similar in function to V-belts, differ significantly in design and application. Unlike V-belts, which are configured in a parallel arrangement and drive multiple accessories with separate belts, a serpentine belt is a single, long belt that snakes around all the pulleys of various components.

This design allows serpentine belts to power multiple components such as the alternator, power steering pump, water pump and air conditioning compressor with just one belt.

The shift towards serpentine belts in heavy equipment is driven by their increased efficiency and simpler maintenance. Serpentine belts can handle higher loads and distribute tension more evenly, which helps in extending the life of the belt and reducing the overall maintenance needs.

Their ability to operate with less slippage and their compatibility with tensioner systems, which automatically adjust the belt tension, make them highly advantageous over multiple V-belts setups.

Final Thoughts

By ensuring that components such as alternators, hydraulic pumps and cooling fans operate smoothly, V-belts significantly influence the overall functionality and efficiency of heavy equipment.

The EquipmentShare Shop offers a robust selection of OEM and aftermarket V-belts, providing a resource for those needing replacements or upgrades. Whether your equipment needs a standard, narrow, wedge or banded V-belts, the EquipmentShare Shop can supply the right one for your needs. Don’t see exactly what you’re looking for? Reach out to our parts experts and get personalized assistance.
