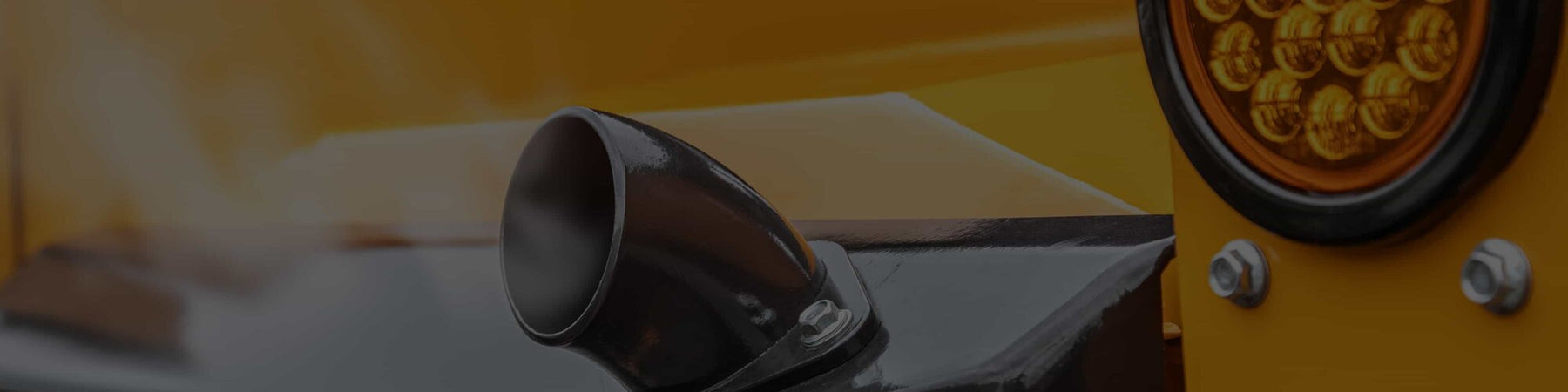

A close-up of a machine's exhaust pipe

The Most Critical Components in Heavy Equipment Exhaust Systems and Their Functions

Reading time: 5 min

Introduction to Heavy Equipment Exhaust Systems

The exhaust system in heavy construction equipment is a key part of ensuring efficiency, safety and compliance with environmental regulations. This system, often overlooked, is critical in managing the byproducts of diesel combustion.

The primary function of heavy equipment exhaust systems is to safely expel exhaust gasses which, if not properly managed, could lead to diminished engine performance and increased emissions.

Beyond its basic role of expelling exhaust, the system incorporates several critical components, each serving a distinct function. These components work in harmony to ensure that the equipment operates within the emissions standards set by regulatory bodies.

Understanding the specific roles and functions of these exhaust system components is essential for effective maintenance and troubleshooting. Damage or failure in any part of the system can lead to a cascade of problems, affecting not only the machinery’s performance but also its compliance with environmental standards.

In this article, we’ll dive further into heavy equipment exhaust systems. By understanding how to maintain and troubleshoot the various components of the exhaust system, you can improve the effectiveness of your fleet and ensure you meet emissions regulations.

The General Makings of a Heavy-duty Exhaust System

Fundamentally designed to manage and expel the hazardous gasses produced during the combustion process, heavy-duty exhaust systems do much more than simply direct gasses away from the engine compartment.

For example, heavy-duty exhaust systems are engineered to reduce operational noise, creating a safer and more tolerable working environment. Additionally, by controlling the emission of pollutants, they ensure that machines meet stringent environmental regulations.

The exhaust systems in construction equipment differ significantly from those in personal vehicles. Unlike the compact and optimized systems designed for automobiles, heavy-duty exhaust systems are built to withstand harsh conditions and higher temperatures. They also utilize selective catalytic reduction to neutralize NOx in the exhaust, a required part of meeting emissions standards.

The Vital Components of the Exhaust System

The exhaust system of heavy construction equipment consists of a wide array of parts, each playing a particular role in its overall function. Understanding these components is essential for maintenance and troubleshooting.

Exhaust Manifold

The exhaust manifold collects gasses from the engine's cylinders and directs them into the exhaust system. Made from cast iron or steel, it must withstand high temperatures and pressures.

Symptoms of damage include cracks or leaks, which can lead to a decrease in engine performance and an increase in emissions. Regular inspections for physical damage and ensuring tight seals are essential maintenance practices.

Turbocharger (if applicable)

Many modern heavy machines are equipped with a turbocharger, which uses exhaust gasses to drive a turbine, increasing the engine's efficiency and power output. A malfunctioning turbocharger can lead to reduced engine performance, increased fuel consumption and excessive exhaust smoke.

Maintenance involves checking for oil leaks, ensuring the turbine spins freely and monitoring for unusual noises.

Diesel Particulate Filter (DPF)

The diesel particulate filter traps soot and particulate matter from the exhaust, preventing their release into the atmosphere. Over time, the filter can become clogged, requiring regeneration through high-temperature burning of the accumulated particles.

Symptoms of a clogged DPF include reduced engine performance and increased fuel consumption. Regular monitoring and maintenance are necessary to ensure proper functioning and compliance with emissions standards.

Selective Catalytic Reduction (SCR) System

This component reduces harmful NOx emissions by injecting a urea-based solution (DEF) into the exhaust stream, which reacts with NOx gasses and converts them into nitrogen and water.  Issues with the SCR system can lead to increased emissions and potential regulatory non-compliance. Maintenance includes ensuring adequate levels of DEF and checking the system for blockages or leaks.

Valves, Mufflers and Pipes

These components work together to control exhaust flow, reduce noise and direct gasses away from the machine. Damage or wear can result in increased noise levels, decreased engine performance and potential safety hazards. Regular inspections for corrosion, leaks and blockages are crucial.

Oxygen Sensors

Positioned in the exhaust system, these sensors monitor the oxygen level in the exhaust to optimize combustion and emissions control. Faulty sensors can lead to inefficient engine operation, increased emissions and potential damage to other components.

Symptoms include poor engine performance and increased fuel consumption. Regular checks and replacements are part of routine maintenance.

The Effects of Wear on Exhaust System Parts

Each part of the exhaust system, from the manifold to the diesel particulate filter, plays a crucial role in managing emissions and maintaining the machine’s effectiveness. Failure of these components can lead to a variety of issues.

A compromised exhaust manifold or damaged pipes can result in harmful gasses leaking into the operator's cabin or the environment, posing health risks and contributing to air pollution. Similarly, a malfunctioning diesel particulate filter (DPF) or selective catalytic reduction (SCR) system can lead to an increase in particulate matter and NOx emissions, resulting in harm to the environment.

Turbocharger issues can decrease engine efficiency, leading to higher fuel usage and increased emissions. Furthermore, faulty oxygen sensors can disrupt the engine's air-fuel ratio, exacerbating emission problems and reducing engine performance.

Beyond environmental impacts, malfunctioning exhaust system components can pose safety hazards, including the risk of fire from leaking gasses contacting hot surfaces. Regular maintenance and monitoring of these components are essential to prevent such outcomes.

Maintenance and Replacement of Exhaust System Components

The longevity and efficiency of heavy construction equipment depend significantly on the condition of the exhaust system.

Routine inspections and timely maintenance of components such as the exhaust manifold, turbocharger, diesel particulate filter (DPF), selective catalytic reduction (SCR) system, valves, mufflers, pipes and oxygen sensors are crucial. Detecting leaks, cracks and wear at an early stage can prevent significant problems, ensuring safety and compliance with environmental standards.

The frequency of replacement of exhaust system components varies based on operating conditions and manufacturer recommendations. Utilizing diagnostic tools is integral for pinpointing specific problems within the exhaust. These tools can detect abnormalities in the exhaust gasses, indicating potential issues with components before they become severe.

Final Thoughts

Each component of the exhaust system, from the exhaust manifold to the diesel particulate filter, plays a pivotal role in maintaining the health and efficiency of heavy equipment. For equipment owners and operators looking to maintain or enhance their machinery's exhaust, the EquipmentShare Shop can help. Browse our extensive catalog of OEM and aftermarket heavy equipment parts. Don’t see the particular component you’re looking for? Reach out to our dedicated parts experts and get personalized assistance.
